Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Groupset GRX 800, Easton -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-Modulus Carbon
Suspension Fork
High-Modulus Carbon
Drivetrain
Rear Derailleur
Shimano GRX RD-RX812
Front Derailleur
Norco Integrated 1x Guide
Shift Levers
Rear: Shimano GRX ST-RX810 11 speed, Front: Shimano GRX ST-RX810 w/Dropper Remote
Cassette
Shimano XT CS-M8000 11-42T
Crank
Easton EC90 Carbon, 40T
Bottom Bracket
Easton PressFit BB86
Chain
KMC X11
Wheels
Front Hub
Reynolds 12x100mm TA
Rear Hub
Reynolds 12x142mm TA
Rims
Reynolds ATR, Carbon, Tubeless Ready
Tires
WTB Resolute TCS 700x42c, Tubeless Compatible System, Tanwall
Brakes
Brakes
Shimano GRX BR-RX810 Hydraulic Disc
Brake Levers
Shimano GRX BL-RX810 Hydraulic
Cockpit
Stem
Norco SL Aluminum
Handlebar
Easton EC70 AX Carbon, 16deg Flare
Headset
FSA Orbit No. 42
Seat
Saddle
Norco SL Race, CrN-Ti Rails
Seatpost
X-Fusion Manic Gravel 50mm Dropper, Shimano Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45.5cm | 48cm |
|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 273 mm | 273 mm |
| Front Center | 567 mm | 578 mm |
| Rake | 49 mm | 49 mm |
| Trail | 63 mm | 62 mm |
| Stack | 497 mm | 517 mm |
| Reach | 348 mm | 355 mm |
| Top Tube Length | 493 mm | 508 mm |
| Seat Tube Angle | 74 ° | 73.75 ° |
| Seat Tube Length | 410 mm | 435 mm |
| Head Tube Angle | 70.75 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm |
| Chainstay Length | 403 mm | 403 mm |
| Wheelbase | 963 mm | 974 mm |
| Bottom Bracket Drop | 57 mm | 57 mm |
| Standover Height | 627 mm | 651 mm |
| Wheels | 650 | 650 |
Model Overview

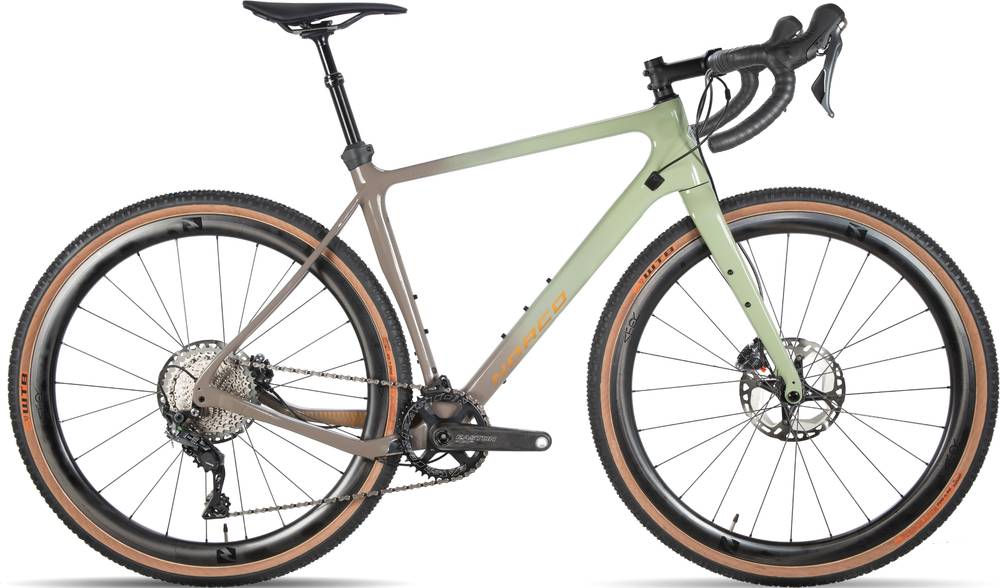

Search XR C1 650b is part of the Norco Search model. 121 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Norco Search XR A2 700c 2020 is the most affordable bike of this model and has a price of 1599$. On the other hand, Norco Search XR C SE 700c 2020, is the most expensive and costs 5999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Norco released this model in 2020, its price was 4999$. Comparing this to the average Gravel bike price, we see that the price is 103.05% more expensive.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The Search XR C1 650b 2020 bike is equipped with carbon wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Search XR C1 650b comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
Norco Search XR C1 650b comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
