Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-Modulus Carbon
Suspension Fork
Mid-Modulus Carbon
Drivetrain
Rear Derailleur
Shimano GRX RD-RX810
Front Derailleur
Shimano GRX FD-RX810
Shift Levers
Rear: Shimano GRX ST-RX600 11 speed, Front: Shimano GRX ST-RX600 2 speed
Cassette
Shimano 105 CS-R7000 11-34T
Crank
Shimano GRX FC-RX600 46/30T
Bottom Bracket
Shimano BB-RS500 PressFit BB86
Chain
KMC X11
Wheels
Front Hub
Shimano HB-RS470 - 12x100mm TA
Rear Hub
Shimano FH-RS470 - 12x142mm TA
Rims
WTB ST Light i23 TCS 2.0, Tubeless Ready
Tires
WTB Resolute TCS 700x42c, Tubeless Compatible System, Tanwall
Brakes
Brakes
Shimano GRX BR-RX400 Hydraulic Disc
Brake Levers
Shimano GRX RX600 Hydraulic
Cockpit
Stem
Norco SL Aluminum
Handlebar
Norco Super Flare Aluminum, 16deg Flare
Headset
FSA Orbit No. 42
Seat
Saddle
Norco SL Race, Cromo Rails
Seatpost
X-Fusion Manic Gravel 50mm Dropper, Drop-Bar Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45.5cm | 48cm |
|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 273 mm | 273 mm |
| Front Center | 567 mm | 578 mm |
| Rake | 49 mm | 49 mm |
| Trail | 63 mm | 62 mm |
| Stack | 497 mm | 517 mm |
| Reach | 348 mm | 355 mm |
| Top Tube Length | 493 mm | 508 mm |
| Seat Tube Angle | 74 ° | 73.75 ° |
| Seat Tube Length | 410 mm | 435 mm |
| Head Tube Angle | 70.75 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm |
| Chainstay Length | 403 mm | 403 mm |
| Wheelbase | 963 mm | 974 mm |
| Bottom Bracket Drop | 57 mm | 57 mm |
| Standover Height | 627 mm | 651 mm |
| Wheels | 650 | 650 |

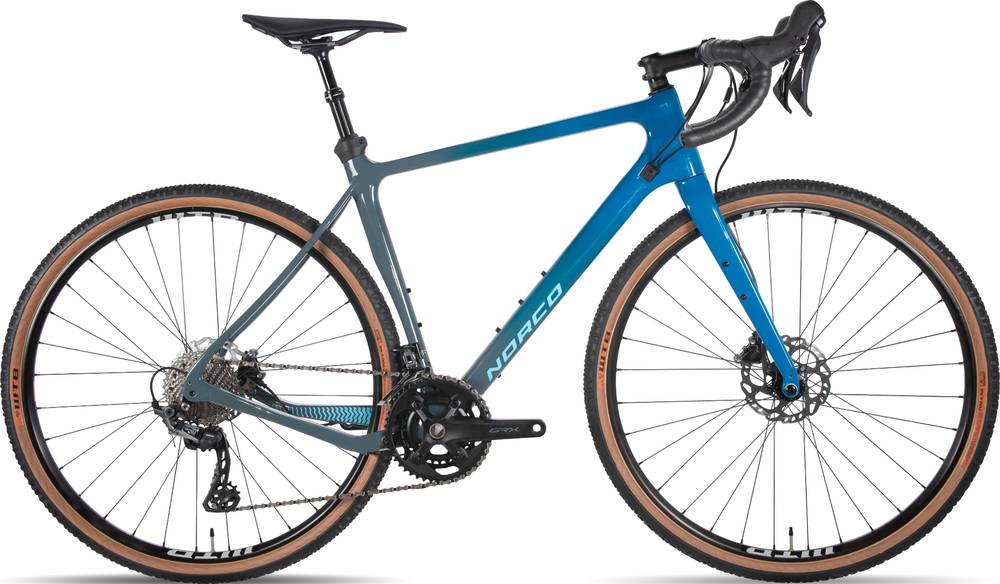

About this model
Search XR C3 650b completes the Norco Search model. 121 bikes variations carry this model name so far. Take a sneak peek at all Norco Search bikes models from 2020, by clicking here.
Model range prices
Norco Search XR A2 700c 2020 is the most affordable bike of this model and has a price of 1599$. On the other hand, Norco Search XR C SE 700c 2020, is the most expensive and costs 5999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Norco released this model in 2020, its price was 3299$. Comparing the average cost of a Gravel bike to this one, you will see that Search XR C3 650b price is 34% higher.
Search XR C3 650b components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The Search XR C3 650b 2020 bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the Search XR C3 650b. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
