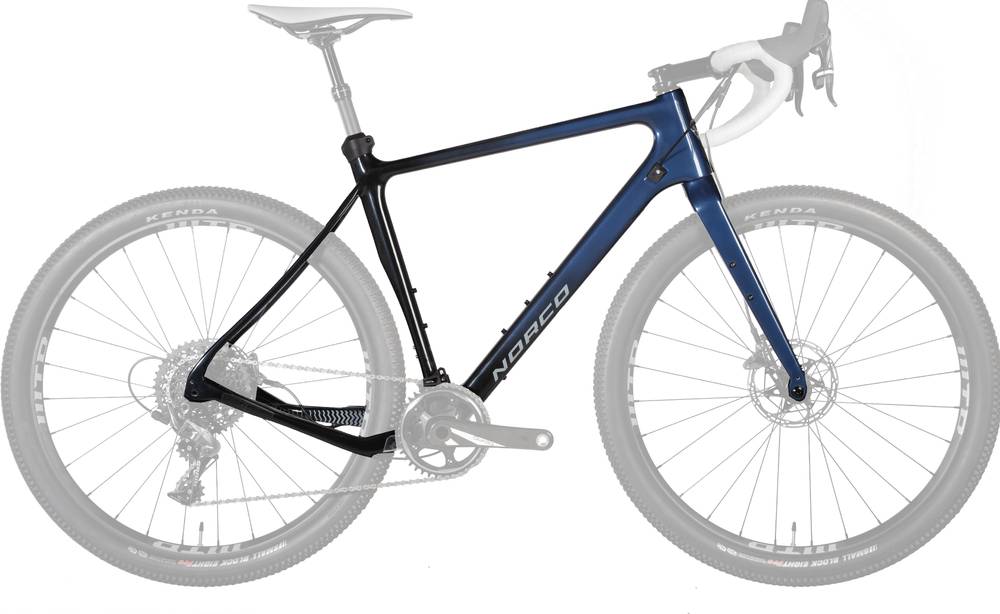

Norco Search XR Carbon Frame/Fork 26 2019
2019 Road
Estimate price |
2,099$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 26" -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Search XR, Carbon, 12x142mm TA Dropouts
Suspension Fork
Norco Search XR Carbon Fork, 12x100mm TA
Drivetrain
Front Derailleur
Norco Integrated 1x Guide
Cockpit
Headset
FSA Orbit No. 42/ACB - All Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45.5cm | 48cm |
|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 278 mm | 278 mm |
| Front Center | 566 mm | 578 mm |
| Rake | 50 mm | 49 mm |
| Trail | 58 mm | 58 mm |
| Stack | 497 mm | 517 mm |
| Reach | 348 mm | 355 mm |
| Top Tube Length | 493 mm | 508 mm |
| Seat Tube Angle | 74 ° | 73.75 ° |
| Seat Tube Length | 410 mm | 435 mm |
| Head Tube Angle | 70.75 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm |
| Chainstay Length | 403 mm | 403 mm |
| Wheelbase | 963 mm | 974 mm |
| Bottom Bracket Drop | 57 mm | 57 mm |
| Standover Height | 699 mm | 718 mm |
| Wheels | 26" | 26" |
Model Overview
Search XR Carbon Frame/Fork 26 is part of the Norco Search model. There are 121 frames that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Norco Search XR Steel Frame/Fork 650b 2019 has a starting price of 1049$. Norco Search XR Carbon Frame/Fork 650b 2019 on the other hand is the most expensive at 2099$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel frames average price
According to our math, the average price for a trustworthy Gravel frame is 1505$. However, this doesn’t mean that if you spend less money on a Gravel frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Norco Search XR Carbon Frame/Fork 26 price was 2099$. In conclusion, this frame price is 39.47% higher than the price of the average Gravel frame.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
