Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50.5cm
158cm - 167cm
53cm
165cm - 174cm
55.5cm
171cm - 180cm
58cm
177cm - 186cm
60.5cm
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Butted X6 Aluminum
Suspension Fork
Search XR Carbon
Drivetrain
Rear Derailleur
Shimano Deore SL-M5100
Shift Levers
Shimano Deore SL-M5100 11spd
Cassette
Shimano Deore CS-M5100, 11-51T, 11 Speed
Crank
Alloy 2 Piece Narrow Wide, 40T, 170mm (50.5), 172.5mm (53, 55.5), 175mm (58, 60.5)
Bottom Bracket
Sealed Bearing PF86
Chain
KMC X11
Pedals
City
Wheels
Front Hub
Alloy 12x100mm, 6 Bolt
Rear Hub
Alloy 12x142mm, HG, 6 Bolt
Rims
WTB ST i23 TCS 2.0 32H, 650b (45.5, 48), 700c (50.5-60.5)
Tires
Vittoria Terreno Dry 38mm
Brakes
Brakes
Tektro HD-R280 Hydraulic Disc
Brake Levers
Tektro 3-Finger Hydraulic, Reach Adjust
Disk Rotors
Tektro 160mm
Cockpit
Stem
Aluminum
Handlebar
Aluminum, 620mm (50, 53), 640mm (55, 58, 60), 15mm Rise
Grips
Lock On Grip
Headset
Integrated Sealed Bearing
Seat
Saddle
Selle Royal Vivo, Mag Rails
Seatpost
Aluminum, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.28 mm | 1.3 mm | 1.33 mm | 1.35 mm | 1.4 mm |
| Bottom Bracket Height | 279 mm | 282 mm | 282 mm | 284 mm | 284 mm |
| Front Center | 652 mm | 661 mm | 674 mm | 683 mm | 688 mm |
| Rake | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Trail | 77 mm | 77 mm | 77 mm | 73 mm | 73 mm |
| Stack | 535 mm | 549 mm | 566 mm | 586 mm | 605 mm |
| Reach | 417 mm | 421 mm | 427 mm | 434 mm | 433 mm |
| Top Tube Length | 570 mm | 583 mm | 600 mm | 616 mm | 623 mm |
| Seat Tube Angle | 74.25 ° | 73.75 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 137.5 mm | 155 mm | 177.5 mm | 197.5 mm |
| Chainstay Length | 414 mm | 414 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1055 mm | 1065 mm | 1081 mm | 1091 mm | 1096 mm |
| Bottom Bracket Drop | 75 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 679 mm | 709 mm | 737 mm | 767 mm | 795 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 171 cm | 177 cm | 184 cm |
| Rider Max Height | 167 cm | 174 cm | 180 cm | 186 cm | 194 cm |

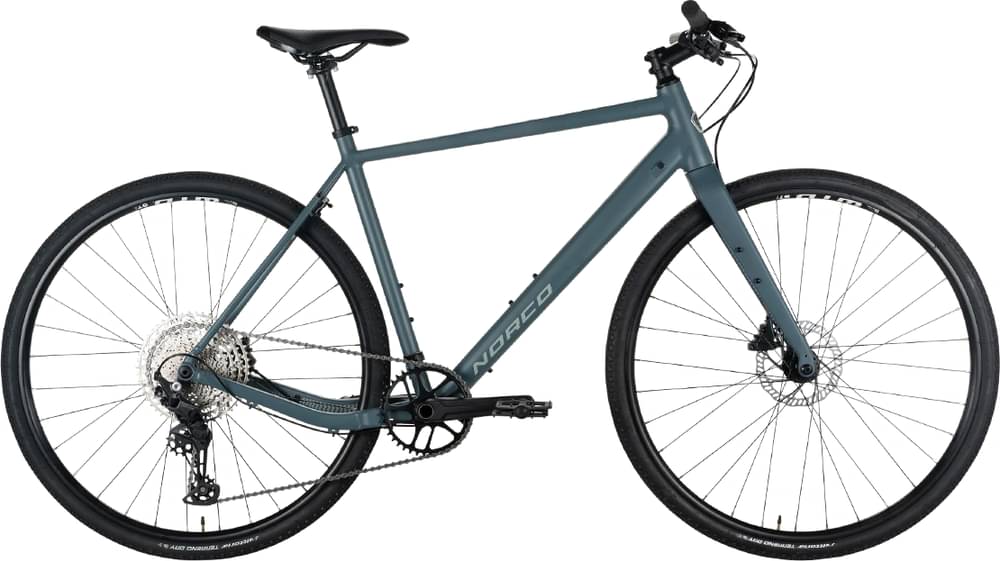

Model Overview
Search XR Flat Bar is a Norco Search model. Norco launched 121 bikes of this model so far. You can easily view all of the Norco Search bikes models from 2021, here.
Model range prices
Norco Search XR Flat Bar 2021 is the cheapest bike model and costs 1299$. Norco Search XR C1 650b 2021 is the most expensive one and costs 4999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1299$. In conclusion, this bike price is 89.53% smaller than the price of the average Gravel bike.
Search XR Flat Bar components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Norco Search XR Flat Bar 2021, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Search XR Flat Bar is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Search XR Flat Bar comes in 5 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
