Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 650b -
Groupset GRX 800, 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Search Reynolds 725 Chromoly Steel
Suspension Fork
Search XR Mid-Modulus Carbon
Drivetrain
Rear Derailleur
Shimano GRX RD-RX810
Front Derailleur
Shimano 105 FD-R7000
Shift Levers
Rear: Shimano GRX ST-RX600 11 speed, Front: Shimano GRX ST-RX600 2 speed
Cassette
Shimano CS-HG700 11-34T
Crank
Easton EA90 46/30T
Bottom Bracket
Easton PressFit BB86
Chain
KMC X11
Wheels
Front Hub
Sealed Bearing 12x100mm TA
Rear Hub
Sealed Bearing w/Alloy Freehub 12x142mm TA
Rims
WTB ST Light i23 TCS 2.0, Tubeless Ready
Tires
WTB Resolute TCS 700x42c, Tubeless Compatible System, Tanwall
Brakes
Brakes
Shimano GRX BR-RX400 Hydraulic Disc
Brake Levers
Shimano GRX RX600 Hydraulic
Cockpit
Stem
Norco SL Aluminum - Custom Painted
Handlebar
Easton EA70 AX Aluminum, 16deg Flare
Headset
FSA 44mm Cartridge Bearing
Seat
Saddle
Norco SL Race, Cromo Rails
Seatpost
X-Fusion Manic Gravel 50mm Dropper, Drop-Bar Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45.5cm | 48cm |
|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm |
| Bottom Bracket Height | 273 mm | 273 mm |
| Front Center | 567 mm | 578 mm |
| Rake | 49 mm | 49 mm |
| Trail | 63 mm | 62 mm |
| Stack | 500 mm | 519 mm |
| Reach | 348 mm | 355 mm |
| Top Tube Length | 493 mm | 508 mm |
| Seat Tube Angle | 74 ° | 73.75 ° |
| Seat Tube Length | 410 mm | 435 mm |
| Head Tube Angle | 70.75 ° | 71 ° |
| Head Tube Length | 100 mm | 120 mm |
| Chainstay Length | 413 mm | 413 mm |
| Wheelbase | 973 mm | 984 mm |
| Bottom Bracket Drop | 57 mm | 57 mm |
| Standover Height | 628 mm | 652 mm |
| Wheels | 650 | 650 |
About this model

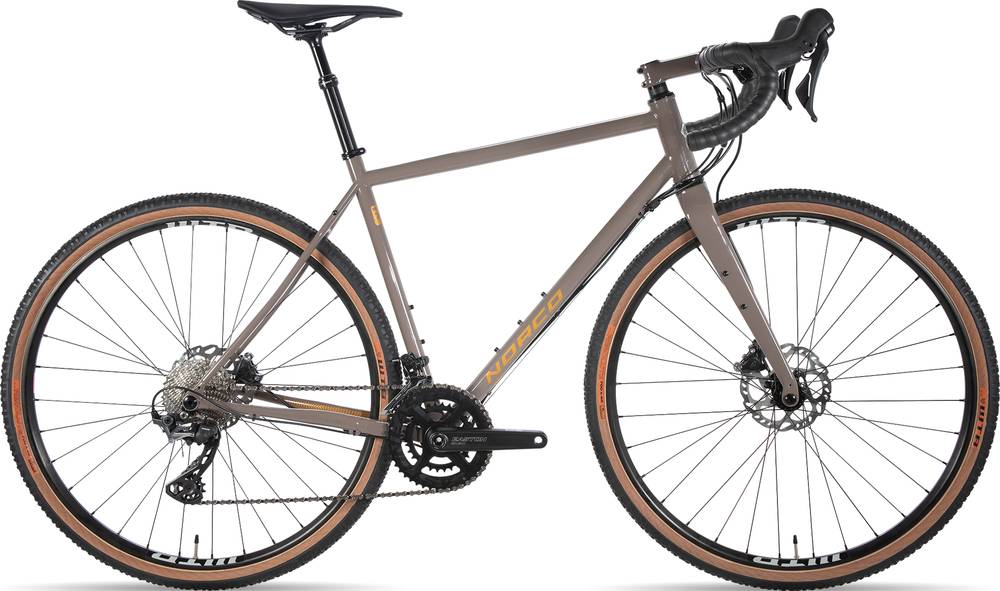

Search XR S1 650b belongs to the Norco Search model. 121 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Norco Search XR A2 700c 2020 is the cheapest bike model and costs 1599$. Norco Search XR C SE 700c 2020 is the most expensive one and costs 5999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Norco released this model in 2020, its price was 2699$. If we compare this with the average Gravel bike cost we notice that the price is 9.63% higher.
Search XR S1 650b components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Search XR S1 650b model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Search XR S1 650b has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Search XR S1 650b. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
