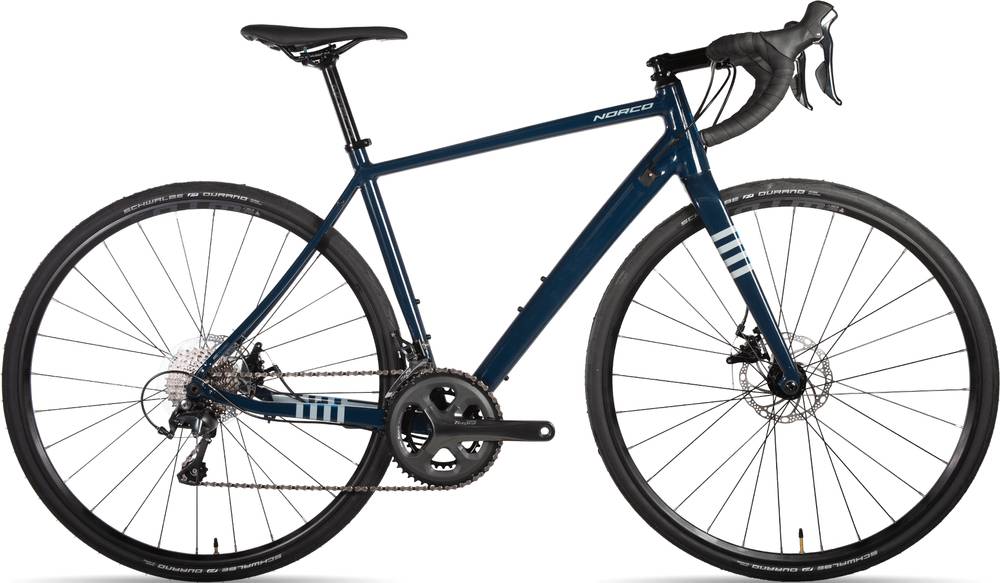

Norco Section Aluminum Tiagra 2019
2019 Road
Estimate price |
1,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Section, Aluminum, 12x142mm TA Dropouts
Suspension Fork
Norco Section Carbon Fork, 12x100mm TA, Aluminum/Steel Frame Specific
Drivetrain
Rear Derailleur
Shimano Tiagra RD-4700-GS, 10 Speed
Front Derailleur
Shimano Tiagra FD-4700, 2 Speed
Shift Levers
Rear: Shimano Tiagra ST-4700, 10 Speed, Front: Shimano Tiagra ST-4700, 2 Speed
Cassette
Shimano CS-HG500, 11-32T, 10 Speed
Crank
Shimano Tiagra FC-4700, 50/34T
Bottom Bracket
Shimano HollowTech II BB, Threaded BSA 68mm
Chain
KMC X10, 10 Speed
Wheels
Front Hub
Alloy, 28 Hole, 12x100mm TA
Rear Hub
Alloy, 28 Hole, 12x142mm TA
Rims
WTB SpeedDisc i19, 28 Hole, 19mm Internal Width
Tires
Schwalbe Durano, 700x32c, RaceGuard
Brakes
Brakes
Tektro MD-C550, 2 Piston Mechanical Disc, 160mm Rotor
Brake Levers
Shimano Tiagra ST-4700
Cockpit
Stem
Norco SL Alloy
Handlebar
Norco Aero All Road, 10° Flare
Headset
Angular Sealed Cartridge Bearings, Tapered
Seat
Saddle
Norco Race, Black
Seatpost
Norco Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm | 63cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.44 mm | 1.45 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 269 mm | 271.5 mm | 271.5 mm | 271.5 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 581 mm | 587 mm | 598 mm | 605 mm | 618 mm | 630 mm | 645 mm |
| Rake | 51 mm | 51 mm | 50 mm | 48 mm | 48 mm | 48 mm | 49 mm |
| Trail | 65 mm | 61 mm | 59 mm | 60 mm | 58 mm | 57 mm | 55 mm |
| Stack | 517 mm | 528 mm | 547 mm | 565 mm | 585 mm | 605 mm | 624 mm |
| Reach | 360 mm | 367 mm | 377 mm | 383 mm | 392 mm | 400 mm | 409 mm |
| Top Tube Length | 506 mm | 521 mm | 538.5 mm | 556 mm | 573.5 mm | 591 mm | 606 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.75 ° | 73.25 ° | 73 ° | 72.75 ° | 72.75 ° |
| Seat Tube Length | 425 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 595 mm |
| Head Tube Angle | 71.25 ° | 71.75 ° | 72.25 ° | 72.5 ° | 72.75 ° | 73 ° | 73 ° |
| Head Tube Length | 107.5 mm | 120 mm | 137.5 mm | 155 mm | 177.5 mm | 197.5 mm | 217.5 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 975 mm | 983 mm | 993 mm | 1000 mm | 1017 mm | 1029 mm | 1044 mm |
| Bottom Bracket Drop | 75 mm | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 703 mm | 720 mm | 741 mm | 762 mm | 787 mm | 810 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Section Aluminum Tiagra belongs to the Norco Section model. There are 36 bikes that carry this model name. You can easily view all of the Norco Section bikes models from 2019, here.
Model range prices
Norco Section Aluminum Tiagra Women 2019 is the cheapest bike model and costs 1399$. Norco Section Carbon Ultegra SL 2019 is the most expensive one and costs 4449$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2019 and its price was 1399$. In conclusion, this bike price is 75.98% smaller than the price of the average Gravel bike.
Section Aluminum Tiagra components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Section Aluminum Tiagra bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Section Aluminum Tiagra has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
