Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shinobi 29er ( 120 mm travel)
Rear Shock
Fox Float Performance CTD air shock with Boost Valve and XV "high volume" (200 x 41.5 mm), (7.875x2")
Cockpit
Headset
FSA #57 E ( tapered internal ) 1.5" to 1-1/8"
Seat
Seatpost
Norco SL double bolt 2014 alloy post 3D forged , 30.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | - | - | - | - |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.49 mm | 1.43 mm | 1.38 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 669 mm | 695 mm | 721 mm | 747 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 99 mm | 99 mm | 99 mm | 99 mm |
| Stack | 609 mm | 619 mm | 628 mm | 638 mm |
| Reach | 394 mm | 416 mm | 439 mm | 461 mm |
| Top Tube Length | 568 mm | 593 mm | 618 mm | 643 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 445 mm | 480 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1123 mm | 1149 mm | 1175 mm | 1201 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

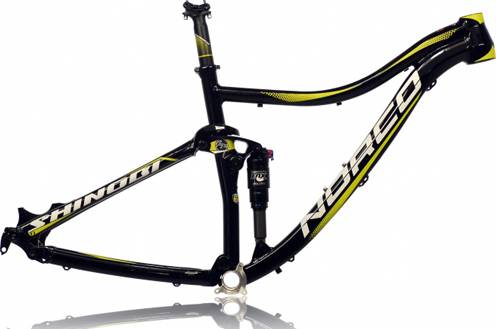

Shinobi 1 Framekit is a Norco Shinobi model. Norco released 9 frames variations of this model so far. You can get a glimpse at all models from 2013, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail frames average price
If you want an acceptable Trail frame you should know that the average price is 1736$. However, this doesn’t mean that if you spend less money on a Trail frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Shinobi 1 Framekit components
Rear Shock
As for the rear shock, this frame has the Fox Float Performance CTD air shock model, with a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
