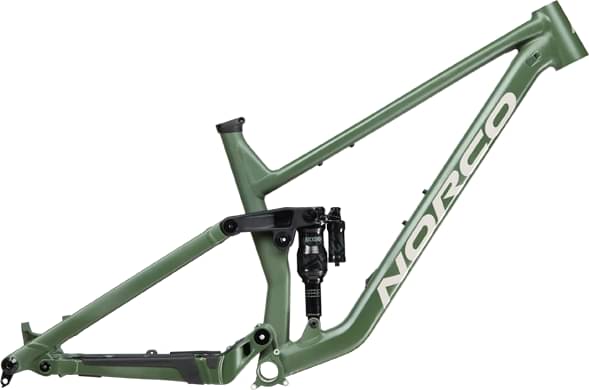

Norco Sight A Framekit 29 2023
2023 Mountain
Estimate price |
1,999$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Rear 150mm -
Suspension Full
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum All-Mountain, 150mm Travel, 27.5" and 29" Options, UDH, Ride Aligned™
Rear Shock
RockShox Super Deluxe Ultimate DH, LINM Tune, Meg Neg Air Can, 185x52.5mm Trunnion
Seat
Seatpost
Norco design alloy nutted clamp 38.5mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.34 mm | 1.28 mm | 1.22 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 758 mm | 788 mm | 823 mm | 857 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm |
| Stack | 616 mm | 616 mm | 625 mm | 634 mm |
| Reach | 429 mm | 459 mm | 489 mm | 519 mm |
| Top Tube Length | 570 mm | 597 mm | 625 mm | 653 mm |
| Seat Tube Angle | 77 ° | 77.3 ° | 77.7 ° | 78 ° |
| Seat Tube Length | 370 mm | 395 mm | 435 mm | 465 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 434 mm | 439 mm | 444 mm | 449 mm |
| Wheelbase | 1191 mm | 1226 mm | 1266 mm | 1305 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 682 mm | 694 mm | 702 mm | 716 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 191 cm |
Model Overview
Sight A Framekit 29 belongs to the Norco Sight model. 215 frames variations carry this model name so far. You can easily view all of the Norco Sight frames models from 2023, here.
Model range prices
Norco Sight A Framekit 27.5 2023 is the cheapest frame model and costs 1999$. Norco Sight C Framekit 27.5 2023 is the most expensive one and costs 3149$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro frames average price
If you want to purchase a solid Enduro frame, it is important to know that the average cost is 1895$. However, this doesn’t mean that if you spend less money on an Enduro frame, you couldn’t get a decent one. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
When Norco released this model in 2023, its price was 1999$. In conclusion, this frame price is 5.49% more expensive than the price of the average Enduro frame.
Overview of components
Rear Shock
The shock that’s installed on this frame is RockShox Super Deluxe Ultimate DH, with a travel distance of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Sizes
Norco Sight A Framekit 29 frame has 4 sizes, in the range of 154 cm – 191 cm (5.05 ft – 6.27 ft). In short, you can easily find one that suits you.
