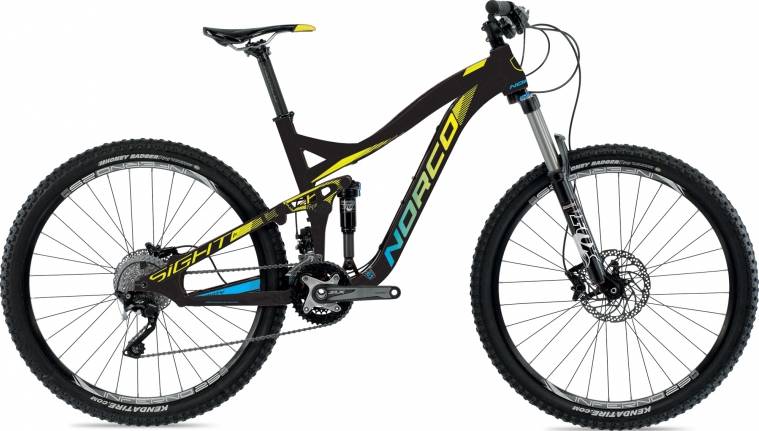

Norco Sight Carbon 7 1.5 2014
2014 Mountain
Estimate price |
4,165$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Performance Float 32
-
Groupset XT, SLX -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sight 27.5 carbon 140 mm travel (frame will not accept shocks with external reservoir)
Suspension Fork
Fox Float 32 CTD FIT 27.5 Performance 140 mm w 15 mm axle
Rear Shock
Fox Float CTD Performance B/V (Shocks with external reservoirs not compatible)
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus long cage 10 speed
Front Derailleur
Shimano SLX high direct mount
Shift Levers
Jagwire LEX housing
Cassette
Shimano HG-62 10 speed cassette
Crank
Shimano SLX 2x10 38/24T w / PF BB92
Bottom Bracket
Comes with crank
Chain
SRAM PC 1031 10 speed chain
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
Shimano SLX 15 mm hub
Rear Hub
Shimano SLX 142 x 12 hub
Rims
Sun Inferno 25 Pinned rim ( 650 B)
Tires
Maxxis Ardent 27.5 x 2.25 wire bead
Brakes
Brakes
Shimano SLX hydraulic disc brake w 160 mm rotor
Brake Levers
Shimano SM-RT 30 180 mm center lock rotor
Disk Rotors
N/A
Cockpit
Stem
Norco short reach 3D forged stem
Handlebar
Norco 1" rise bar 740 mm width 6061 alloy"
Grips
Norco lock on grips
Headset
FSA Orbit C-40-ACB No.42/ACB integrated
Seat
Saddle
Norco design trail / XC saddle
Seatpost
Rockshox Reverb seatpost 30.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.4 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 338.5 mm | 338.5 mm | 338.5 mm | 338.5 mm |
| Front Center | 687 mm | 707 mm | 731 mm | 753 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 102 mm | 102 mm | 102 mm | 102 mm |
| Stack | 588 mm | 597 mm | 606 mm | 616 mm |
| Reach | 407 mm | 426 mm | 447 mm | 466 mm |
| Top Tube Length | 567 mm | 593 mm | 620 mm | 647 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.9 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 435 mm | 470 mm | 510 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 428 mm | 432 mm | 436 mm | 440 mm |
| Wheelbase | 1110 mm | 1137 mm | 1166 mm | 1193 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 744 mm | 744 mm | 739 mm | 739 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Sight Carbon 7 1.5 is a Norco Sight model. Norco launched 215 bikes of this model so far. Take a sneak peek at all Norco Sight bikes models from 2014, by clicking here.
Model range prices
Norco Sight Alloy 7.2 2014 is the most economical model, with a starting price of 2409$. Norco Sight Carbon LE 2014 on the other hand costs 6850$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4165$. In conclusion, this bike price is 50.8% higher than the price of the average Trail bike.
Sight Carbon 7 1.5 components
Fork
The fork installed on this bike is the Fox Performance Float 32 model. The travel on this model is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Sight Carbon 7 1.5 has a rear shock with a travel of 140mm. The model Fox Float CTD Performance B/V (Shocks is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on Sight Carbon 7 1.5 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Sight Carbon 7 1.5 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Norco model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
