Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Internal Routing, Smooth Welds
Suspension Fork
Suntour XCM HLO DS, 100mm, 42mm Offset (27.5), 46mm Offset (29)
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100
Cassette
Sunrace CMX8, 11-51T, 11 Speed
Crank
Prowheel MPX, 30T , 170mm (XXS, XS, S), 175mm (M, L, XL)
Bottom Bracket
Prowheel Cartridge Bearing, BSA Threaded
Chain
KMC X11
Pedals
VP Nylon Flat
Wheels
Front Hub
Alloy QR, 9x100mm QR, 6 Bolt
Rear Hub
Alloy QR, 10x135mm QR, HG, 6 Bolt
Rims
Alex DP21 TRS
Tires
Front: Maxxis Rekon DK60 2.25", Rear: Maxxis Rekon DK60 2.25"
Brakes
Brakes
Front: Tektro HD-M275 Hydraulic, Resin Pads, Rear: Tektro HD-M275 Hydraulic, Resin Pads
Brake Levers
Tektro HD-M275, HD-M276 Short Reach on Step-Thru
Cockpit
Stem
Alloy 60mm, 31.8mm Clamp
Handlebar
X6 Alloy, 720mm (XXS, XS, S), 740mm (M, L, XL), 25mm Rise
Grips
Norco
Headset
Zero Stack
Seat
Saddle
Norco XC
Seatpost
TranzX YSP18 Dropper, 130mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.39 mm | 1.32 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Front Center | 703 mm | 737 mm | 771 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm |
| Stack | 626 mm | 635 mm | 645 mm |
| Reach | 427 mm | 457 mm | 487 mm |
| Top Tube Length | 594 mm | 627 mm | 659 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1148 mm | 1182 mm | 1216 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm |
| Standover Height | 688 mm | 723 mm | 756 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 175 cm | 184 cm | 191 cm |

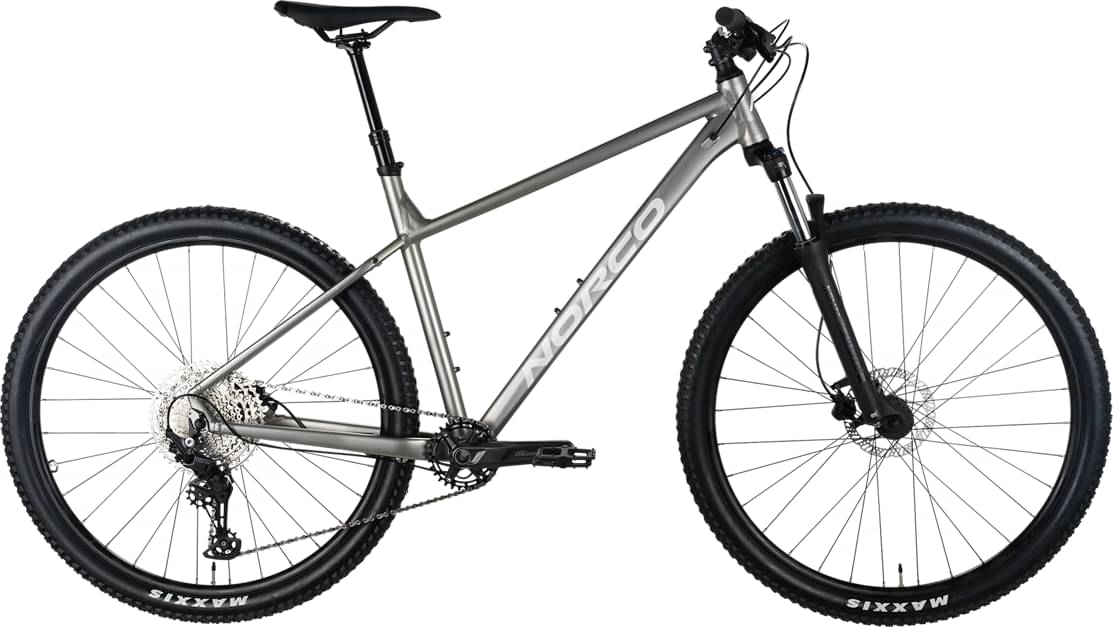

Model Overview
Storm 1 29 is a Norco Storm model. Norco launched 177 bikes of this model so far. Take a sneak peek at all Norco Storm bikes models from 2023, by clicking here.
Model range prices
Norco Storm 14 SS 2023 is the most economical model, with a starting price of 361$. Norco Storm 1 29 2023 on the other hand costs 1049$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1049$. Comparing the average cost of a Crosscountry bike to this one, you will see that Storm 1 29 price is 81.6% smaller.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Storm 1 29 components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on Storm 1 29 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Storm 1 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Storm 1 29 comes in 3 sizes, that range from 163 cm – 191 cm (5.35 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Storm 1 29. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
