Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XXS
145cm - 159cm
XS
157cm - 168cm
SM
165cm - 176cm
MD
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Storm 6061 Alloy XC Frame
Suspension Fork
Suntour XCT 100mm 29"
Drivetrain
Rear Derailleur
Shimano Tourney RD-TX800 8spd
Front Derailleur
Shimano Tourney FD-TX50 3spd
Shift Levers
Rear: Shimano Easy-Fire 500 8spd, Front: Shimano Easy-Fire 500 3spd
Cassette
Sun Race CSM55 8spd 11/34
Crank
Shimano TY301 42/34/24
Bottom Bracket
Cartridge BB
Chain
KMC Z7 8spd
Pedals
Steel Cage Pedal
Wheels
Front Hub
Joytech D041DSE Alloy Disc QR
Rear Hub
Joytech D142TSE Alloy Disc QR
Rims
WTB SX19 29"/27.5" DW Rims
Tires
WTB Nineline 29 x 2.25/Beeline 27.5" x 2.25
Brakes
Brakes
Tektro MD-280 160mm Mech Disc
Brake Levers
Tektro Alloy
Cockpit
Stem
Alloy 80mm/70mm x 31.8
Handlebar
X6 Alloy 720mm x 31.8
Grips
Norco Grip
Headset
Zero Stack Headset
Seat
Saddle
Norco XC Saddle
Seatpost
Norco Alloy 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.82 mm | 1.76 mm | 1.69 mm | 1.62 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 300 mm |
| Front Center | 600 mm | 618 mm | 642 mm | 666 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 95 mm | 93 mm | 91 mm | 90 mm |
| Stack | 596 mm | 607 mm | 617 mm | 627 mm |
| Reach | 327 mm | 344 mm | 366 mm | 388 mm |
| Top Tube Length | 506 mm | 531 mm | 561 mm | 591 mm |
| Seat Tube Angle | 73.5 ° | 73.1 ° | 72.7 ° | 72.3 ° |
| Seat Tube Length | 340 mm | 390 mm | 430 mm | 470 mm |
| Head Tube Angle | 68.5 ° | 68.75 ° | 69 ° | 69.25 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1020 mm | 1039 mm | 1062 mm | 1087 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 50 mm |
| Standover Height | 722 mm | 715 mm | 724 mm | 767 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 145 cm | 157 cm | 165 cm | 174 cm |
| Rider Max Height | 159 cm | 168 cm | 176 cm | 183 cm |
Model Overview

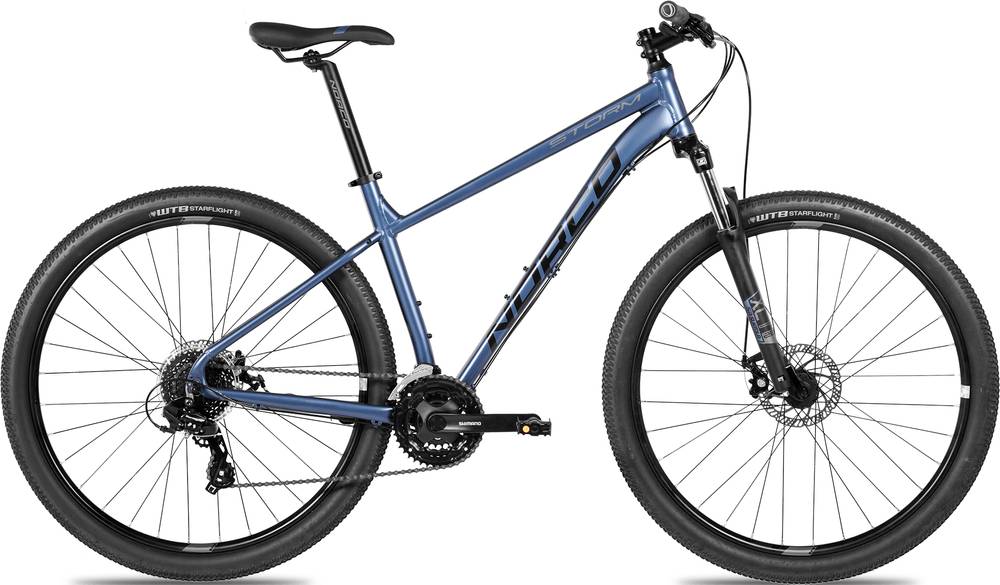

Storm 3 27.5 belongs to the Norco Storm model. Norco launched 177 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Norco Storm 2.3 2018 is the cheapest bike model and costs 269$. Norco Storm 1 29 2018 is the most expensive one and costs 729$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Norco released this model in 2018, its price was 459$. In conclusion, this bike price is 315.03% smaller than the price of the average Crosscountry bike.
Overview of components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Storm 3 27.5 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Storm 3 27.5 has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Storm 3 27.5 comes in 4 sizes, that range from 145 cm – 183 cm (4.76 ft – 6 ft). In short, it won’t be difficult to find the right one for you.
