Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Storm 6061 Alloy XC Frame
Suspension Fork
Suntour XCT HLO 100mm
Drivetrain
Rear Derailleur
Shimano Tourney RD-TX800 8spd
Front Derailleur
Shimano Tourney FD-TX50 3spd
Shift Levers
Rear: Shimano Altus SL-M310 Rapidfire 8spd, Front: Shimano Altus SL-M310 Rapidfire 3spd
Cassette
Sun Race CSM55 8spd 11/34
Crank
Shimano TY301 42/34/24
Bottom Bracket
Cartridge BB
Chain
KMC Z7 8spd
Pedals
Steel Cage Pedal
Wheels
Front Hub
Joytech D041DSE Alloy Disc QR
Rear Hub
Joytech D142TSE Alloy Disc QR
Rims
WTB SX19 29"/27.5" DW Rims
Tires
WTB Nineline 29 x 2.25/Beeline 27.5" x 2.25
Brakes
Brakes
Tektro HD-M285 Hydraulic 160mm
Brake Levers
Tektro HD-M285
Cockpit
Stem
Alloy 80mm/70mm x 31.8
Handlebar
X6 Alloy 720mm x 31.8
Grips
Norco Grip
Headset
Zero Stack Headset
Seat
Saddle
Norco XC Saddle
Seatpost
Norco Alloy 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.62 mm | 1.56 mm | 1.51 mm |
| Bottom Bracket Height | 303 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 654 mm | 678 mm | 700 | 722 mm |
| Rake | 46 mm | 45 mm | 47 mm | 47 mm |
| Trail | 92 mm | 92 mm | 88 mm | 86 mm |
| Stack | 640 mm | 650 | 660 mm | 671 mm |
| Reach | 379 mm | 401 mm | 422 mm | 443 mm |
| Top Tube Length | 578 mm | 608 mm | 638 mm | 668 mm |
| Seat Tube Angle | 72.8 ° | 72.4 ° | 72 ° | 71.6 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 69.3 ° | 69.5 ° | 69.8 ° | 70 ° |
| Head Tube Length | 115 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1091 mm | 1116 mm | 1139 mm | 1161 mm |
| Bottom Bracket Drop | 68 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 742 mm | 788 mm | 794 mm | 805 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

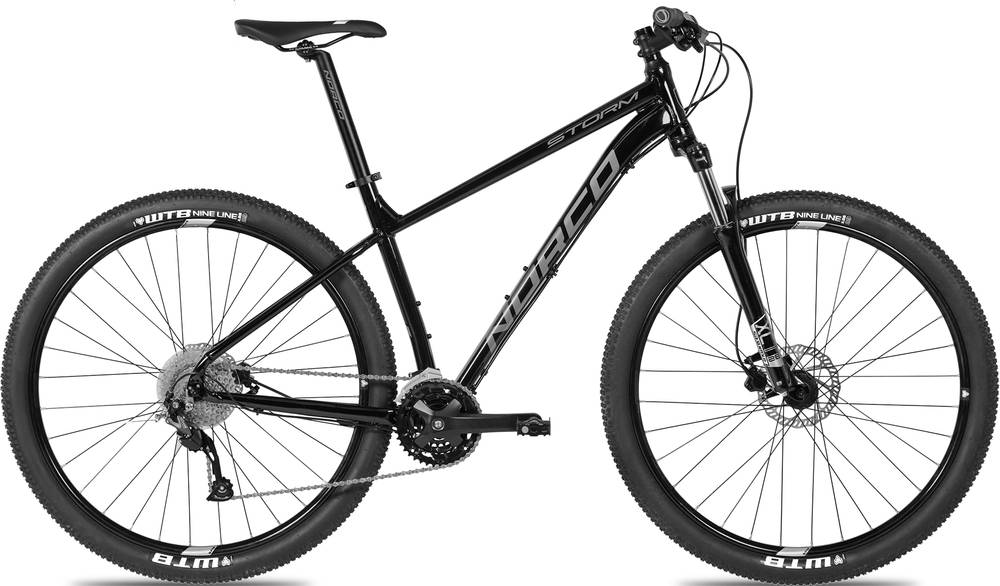

Storm 3 Hydro 29 is a Norco Storm model. There are 177 bikes that carry this model name. You can easily view all of the Norco Storm bikes models from 2018, here.
Model range prices
Norco Storm 2.3 2018 is the most affordable bike of this model and has a price of 269$. On the other hand, Norco Storm 1 29 2018, is the most expensive and costs 729$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2018 and its price was 499$. Comparing the average cost of a Crosscountry bike to this one, you will see that Storm 3 Hydro 29 price is 281.76% lower.
Overview of components
Fork
The Storm 3 Hydro 29 comes factory-installed with the SunTour XCT fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Storm 3 Hydro 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Storm 3 Hydro 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
