Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 75mm -
Fork SunTour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Storm 6061 Alloy Step Thru Frame
Suspension Fork
Suntour M3030 75mm
Drivetrain
Rear Derailleur
Shimano Tourney RD-TX800 8spd
Front Derailleur
Shimano Tourney FD-TX50 3spd
Shift Levers
Rear: Shimano Easy-Fire 500 8spd, Front: Shimano Easy-Fire 500 3spd
Cassette
Sun Race CSM55 8spd 11/34
Crank
Shimano TY301 42/34/24
Bottom Bracket
Cartridge BB
Chain
KMC Z7 8spd
Pedals
Steel Cage Pedal
Wheels
Front Hub
Joytech D041DSE Alloy Disc QR
Rear Hub
Joytech D142TSE Alloy Disc QR
Rims
WTB SX19 27.5"
Tires
WTB Beeline 27.5 x 2.2
Brakes
Brakes
Tektro MD-280 160mm Mech Disc
Brake Levers
Shimano EF51 Tourney Levers
Cockpit
Stem
Norco Alloy 70mm/80mm
Handlebar
X6 Alloy 720mm x 31.8
Grips
Norco Grip
Headset
Zero Stack Headset
Seat
Saddle
Norco XC Saddle
Seatpost
Norco Alloy 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM |
|---|---|---|---|
| Stack Reach Ratio | 1.82 mm | 1.77 mm | 1.69 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 600 mm | 616 mm | 642 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 95 mm | 91 mm | 91 mm |
| Stack | 596 mm | 608 mm | 617 mm |
| Reach | 327 mm | 344 mm | 366 mm |
| Top Tube Length | 506 mm | 531 mm | 561 mm |
| Seat Tube Angle | 73.5 ° | 73.1 ° | 72.7 ° |
| Seat Tube Length | 340 mm | 395 mm | 440 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69 ° |
| Head Tube Length | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1020 mm | 1036 mm | 1062 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 705 mm | 690 mm | 682 mm |
| Wheels | 27" | 27" | 27" |
Model Overview

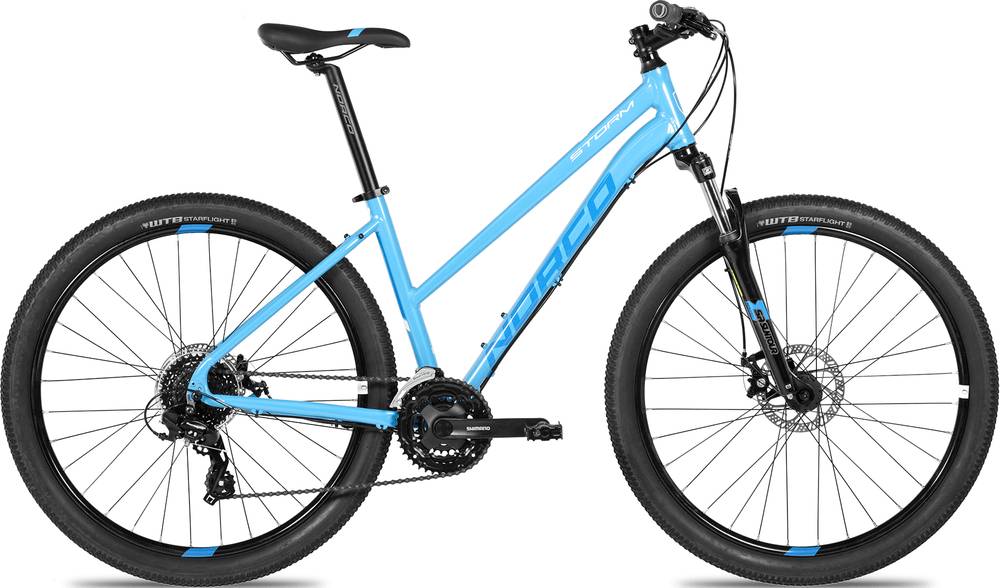

Storm 3 Step-Thru completes the Norco Storm model. Norco released 177 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Norco Storm 2.3 2018 is the most affordable bike of this model and has a price of 269$. On the other hand, Norco Storm 1 29 2018, is the most expensive and costs 729$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2018 and its price was 459$. Comparing this to the average Crosscountry bike price, we see that the price is 315.03% lower.
Overview of components
Fork
This bike has the SunTour fork installed. The fork’s travel is 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Norco Storm 3 Step-Thru 2018, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Storm 3 Step-Thru comes with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
