Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Storm 29" Alloy XC "
Suspension Fork
Suntour XCM HLO 29" 100mm "
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera 8spd
Front Derailleur
Shimano Altus FD-M190
Shift Levers
N/A
Cassette
Shimano CS-HG31-8spd 11-34T cassette
Crank
Suntour XCT 42/32/22
Bottom Bracket
Cartridge BB
Chain
KMC Z-72
Chain Tensioner
N/A
Pedals
Black Resin
Wheels
Front Hub
Joytech D041DSE Alloy Disc QR
Rear Hub
Joytech D142TSE Alloy Disc QR 9spd
Rims
Alex Alloy DW Disc 29""
Tires
WTB Nineline 29"x2.25"
Brakes
Brakes
Tektro HD-M285 Hydraulic 160mm
Brake Levers
Tektro HD-M285
Disk Rotors
N/A
Cockpit
Stem
Norco Alloy 80mm
Handlebar
Norco Alloy 15mm riser 720mm
Grips
Norco Grip
Headset
N/A
Seat
Saddle
Norco XC Saddle
Seatpost
Norco Alloy 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.62 mm | 1.56 mm | 1.51 mm |
| Bottom Bracket Height | 303 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 654 mm | 678 mm | 700 | 722 mm |
| Rake | 46 mm | 45 mm | 47 mm | 47 mm |
| Trail | 93 mm | 92 mm | 88 mm | 86 mm |
| Stack | 640 mm | 650 | 660 mm | 671 mm |
| Reach | 379 mm | 401 mm | 422 mm | 443 mm |
| Top Tube Length | 578 mm | 608 mm | 638 mm | 668 mm |
| Seat Tube Angle | 72.8 ° | 72.4 ° | 72 ° | 71.6 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 69.25 ° | 69.5 ° | 69.75 ° | 70 ° |
| Head Tube Length | 115 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1091 mm | 1116 mm | 1139 mm | 1161 mm |
| Bottom Bracket Drop | 68 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 742 mm | 788 mm | 794 mm | 805 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

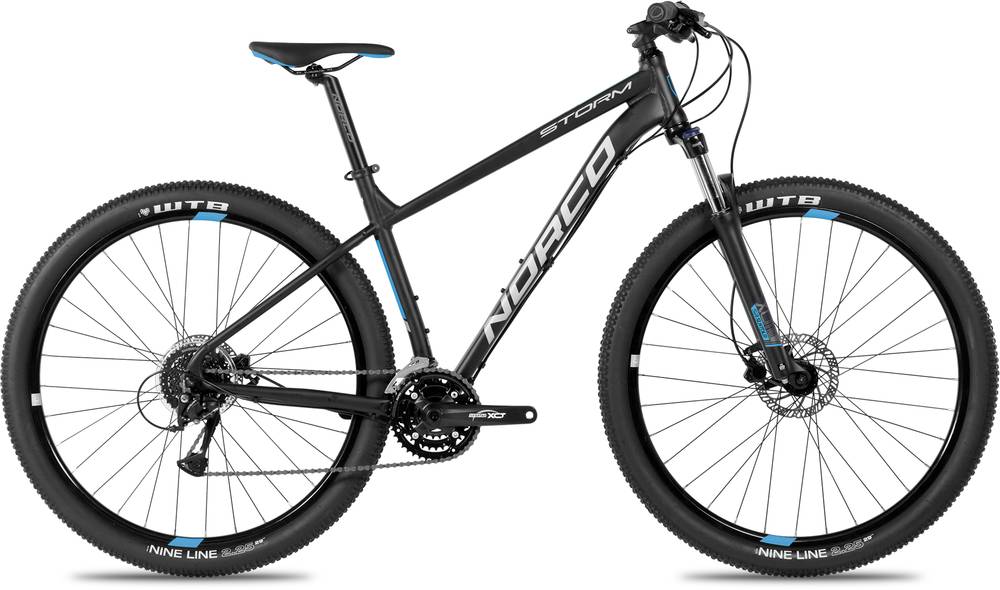

Storm 9.2 belongs to the Norco Storm model. Norco released 177 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Norco Storm 7.4 Forma Step-Thru 2017 is the cheapest bike model and costs 429$. Norco Storm 7.1 2017 is the most expensive one and costs 639$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 559$. Comparing this to the average Crosscountry bike price, we see that the price is 240.79% smaller.
Storm 9.2 components
Fork
The fork installed on this bike is the SunTour XCM HLO model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Storm 9.2 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Storm 9.2 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Storm 9.2 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
