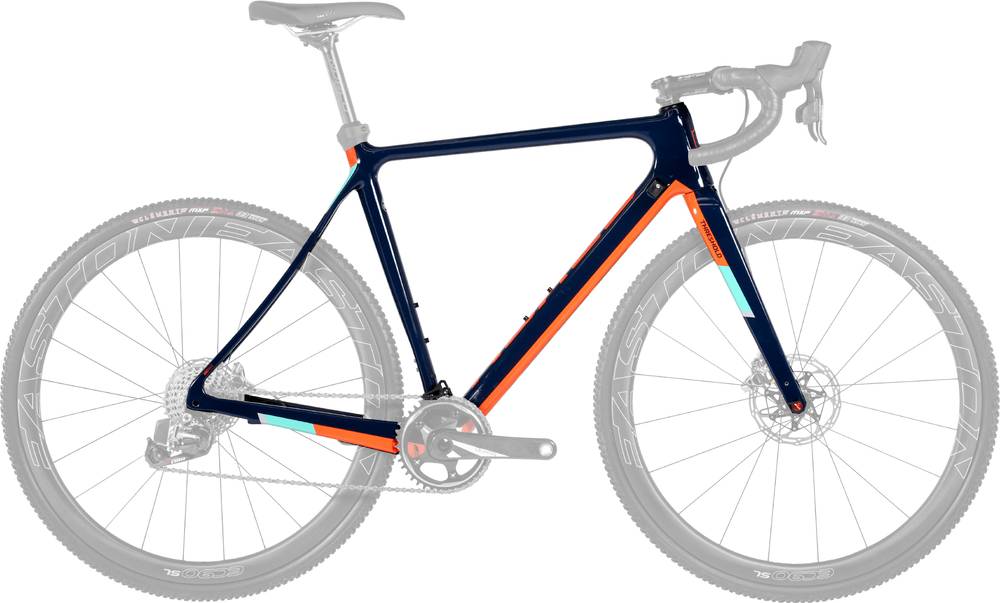

Norco Threshold C Frame/Fork 2018
2018 Road
Estimate price |
1,599$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Threshold Carbon
Suspension Fork
Threshold Carbon
Cockpit
Headset
Angular Sealed Cartridge Bearings - Tapered
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.47 mm | 1.48 mm | 1.49 mm | 1.51 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm | 275 mm | 276.5 mm | 276.5 mm |
| Front Center | 593 mm | 597 mm | 598 mm | 603 mm | 616 mm | 628 mm |
| Rake | 51 mm | 50 mm | 48 mm | 48 mm | 49 mm | 48 mm |
| Trail | 71 mm | 68 mm | 66 mm | 61 mm | 58 mm | 58 mm |
| Stack | 518 mm | 532 mm | 548 mm | 565 mm | 583 mm | 603 mm |
| Reach | 365 mm | 369 mm | 374 mm | 381 mm | 390 mm | 399 mm |
| Top Tube Length | 505 mm | 517.5 mm | 532.5 mm | 550 mm | 567.5 mm | 585 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 480 mm | 505 mm | 530 mm | 555 mm | 580 mm | 605 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.25 ° | 72 ° | 72.25 ° | 72.5 ° |
| Head Tube Length | 105 mm | 117.5 mm | 130 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 415 mm | 415 mm | 417 mm | 417 mm | 420 mm | 420 mm |
| Wheelbase | 998 mm | 1002 mm | 1005 mm | 1011 mm | 1027 mm | 1039 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm |
| Standover Height | 739 mm | 755 mm | 776 mm | 798 mm | 819 mm | 837 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Threshold C Frame/Fork is a Norco Threshold model. There are 58 frames that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Cyclocross frames
Our math shows that the average cost of a dependable Cyclocross frame is 1405$. However, even though the average price of a Cyclocross frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
When Norco released this model in 2018, its price was 1599$. Comparing the average cost of a Cyclocross frame to this one, you will see that Threshold C Frame/Fork price is 13.81% higher.
Threshold C Frame/Fork components
Fork material
When it comes to the fork, this frame has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
