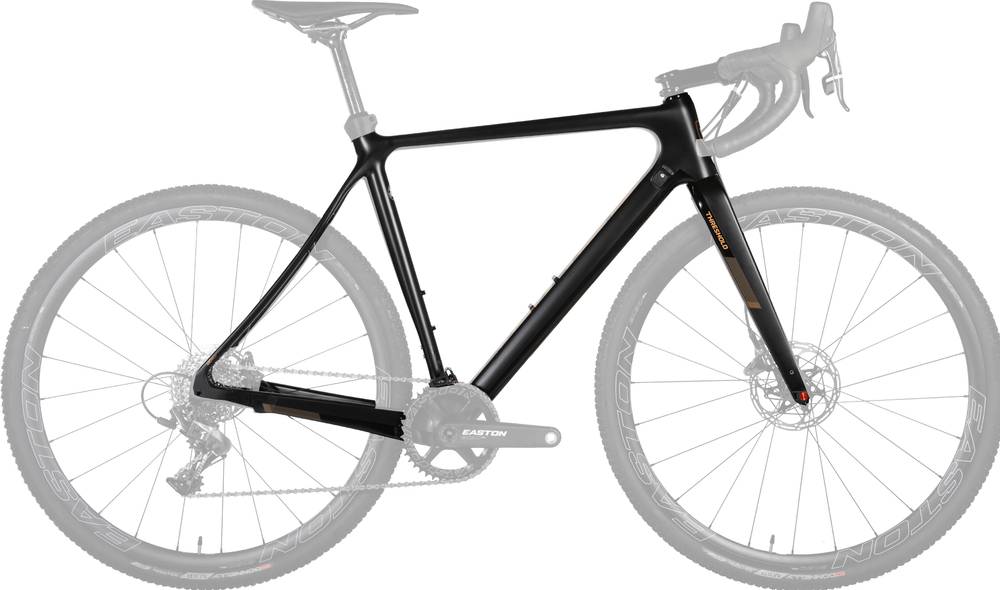

Norco Threshold Carbon Frame/Fork 2019
2019 Road
Estimate price |
1,749$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Threshold, Carbon, 12x142mm TA Dropouts
Suspension Fork
Norco Threshold Carbon Fork, 12x100mm TA
Drivetrain
Front Derailleur
Norco Integrated 1x Guide
Cockpit
Headset
FSA Orbit No. 42/ACB - All Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.47 mm | 1.48 mm | 1.49 mm | 1.51 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm | 275 mm | 276.5 mm | 276.5 mm |
| Front Center | 593 mm | 597 mm | 598 mm | 603 mm | 616 mm | 628 mm |
| Rake | 51 mm | 50 mm | 48 mm | 48 mm | 49 mm | 48 mm |
| Trail | 71 mm | 68 mm | 66 mm | 61 mm | 58 mm | 58 mm |
| Stack | 518 mm | 532 mm | 548 mm | 565 mm | 583 mm | 603 mm |
| Reach | 365 mm | 369 mm | 374 mm | 381 mm | 390 mm | 399 mm |
| Top Tube Length | 505 mm | 517.5 mm | 532.5 mm | 550 mm | 567.5 mm | 585 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 480 mm | 505 mm | 530 mm | 555 mm | 580 mm | 605 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.25 ° | 72 ° | 72.25 ° | 72.5 ° |
| Head Tube Length | 105 mm | 117.5 mm | 130 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 415 mm | 415 mm | 417 mm | 417 mm | 420 mm | 420 mm |
| Wheelbase | 998 mm | 1002 mm | 1005 mm | 1011 mm | 1027 mm | 1039 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm |
| Standover Height | 739 mm | 755 mm | 776 mm | 798 mm | 819 mm | 837 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Threshold Carbon Frame/Fork completes the Norco Threshold model. There are 58 frames that carry this model name. You can easily view all of the Norco Threshold frames models from 2019, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Cyclocross frames
If you want an acceptable Cyclocross frame you should know that the average price is 1405$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 1749$. Doing a quick comparison, we notice that Threshold Carbon Frame/Fork price is 24.48% higher than the average cost of a Cyclocross frame.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
