Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Threshold Cross 30T High-Mod Carbon - Disc
Rear Shock
N/A
Cockpit
Headset
Cane Creek 40-Series w/9mm Top Cover
Seat
Seatpost
Easton EC70 31.6mm - Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 59cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.44 mm | 1.48 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 281.5 mm | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 589 mm | 590 mm | 594 mm | 609 mm | 621 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 71 mm | 67 mm | 62 mm | 59 mm | 58 mm |
| Stack | 534 mm | 543 mm | 564 mm | 585 mm | 605 mm |
| Reach | 374 mm | 377 mm | 381 mm | 394 mm | 403 mm |
| Top Tube Length | 523 mm | 533 mm | 548 mm | 568 mm | 588 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.3 ° | 72.8 ° | 73 ° |
| Head Tube Length | 115 mm | 125 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1003 mm | 1005 mm | 1008 mm | 1023 mm | 1036 mm |
| Bottom Bracket Drop | 67 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 769 mm | 783 mm | 806 mm | 828 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

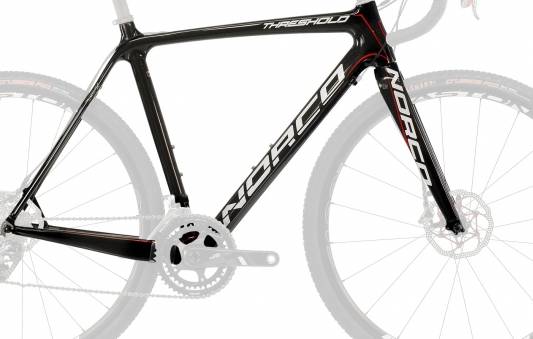

Threshold SL Framekit is a Norco Threshold model. Norco released 58 frames variations of this model so far. You can easily view all of the Norco Threshold frames models from 2014, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Cyclocross frames
Our math shows that the average cost of a dependable Cyclocross frame is 1405$. However, you could also get a good Cyclocross frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
