Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Chromoly Steel
Cockpit
Headset
FSA Cartridge Bearing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.41 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm | 333 mm |
| Front Center | 757 mm | 787 mm | 822 mm | 856 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 138 mm | 138 mm | 138 mm | 138 mm |
| Stack | 641 mm | 641 mm | 650 | 659 mm |
| Reach | 424 mm | 454 mm | 484 mm | 514 mm |
| Top Tube Length | 583 mm | 613 mm | 645 mm | 677 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 395 mm | 435 mm | 485 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 429 mm | 429 mm |
| Wheelbase | 1177 mm | 1207 mm | 1247 mm | 1281 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 666 mm | 681 mm | 702 mm | 748 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 191 cm |
About this model

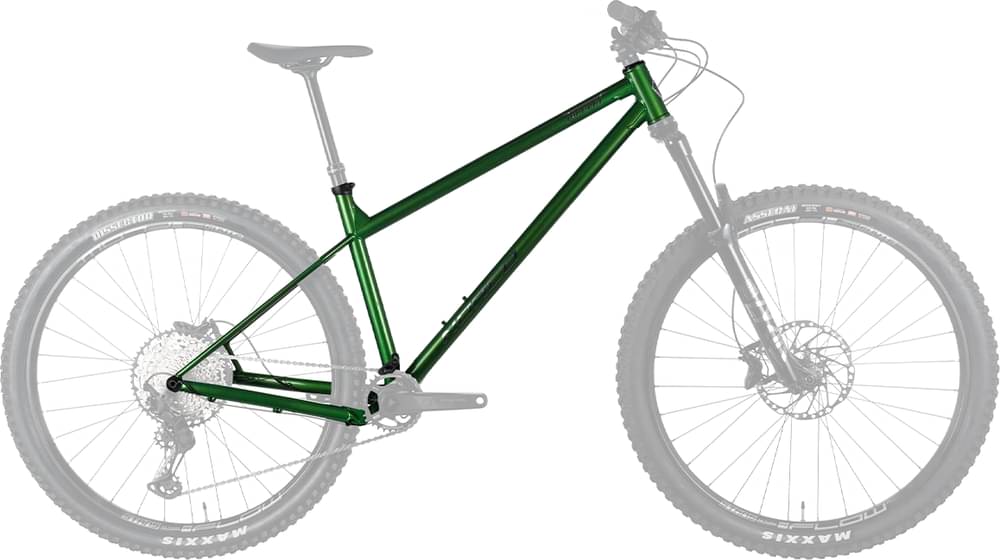

Torrent S HT Frame is part of the Norco Torrent model. Norco released 44 frames variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail frames
If you want to purchase a solid Trail frame, it is important to know that the average cost is 1736$. However, this doesn’t mean that if you spend less money on a Trail frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 799$. If we compare this with the average Trail frame cost we notice that the price is 117.27% smaller.
Overview of components
Sizes
This frame is available in 4 sizes. They vary from 154 cm – 191 cm (5.05 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
