Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 26" -
Travel Front 180mm -
Travel Rear 180mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Truax 1 ( 180 mm travel )
Rear Shock
Fox DHX RC 2 Performance coil (8.75"x2.75"), Small 350 lb , medium 400 lb, large 450 lb
Cockpit
Headset
FSA #57 E ( tapered internal ) 1.5" to 1-1/8"
Seat
Seatpost
Norco SL double bolt 2014 alloy post 3D forged 30.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | - | - | - |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.52 mm | 1.47 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm |
| Front Center | 696 mm | 722 mm | 748 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 96 mm | 96 mm | 96 mm |
| Stack | 599 mm | 608 mm | 617 mm |
| Reach | 377 mm | 399 mm | 421 mm |
| Top Tube Length | 570 mm | 595 mm | 620 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 405 mm | 445 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1141 mm | 1167 mm | 1193 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm |
| Front Travel | 180 mm | 180 mm | 180 mm |
| Rear Travel | 180 mm | 180 mm | 180 mm |
| Wheels | 26" | 26" | 26" |
Model Overview

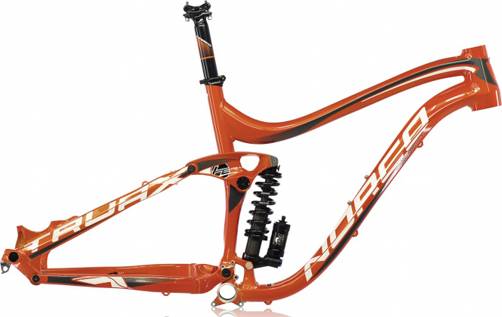

Truax 1 Framekit is a Norco Truax model. Norco released 10 frames variations of this model so far. You can easily view all of the Norco Truax frames models from 2013, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Downhill frames average price
If you want an acceptable Downhill frame you should know that the average price is 1923$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Overview of components
Rear Shock
From the factory, it comes with the Fox DHX RC 2 Performance coil (8.75″x2.75″) rear shock model, which has a travel of 180mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
