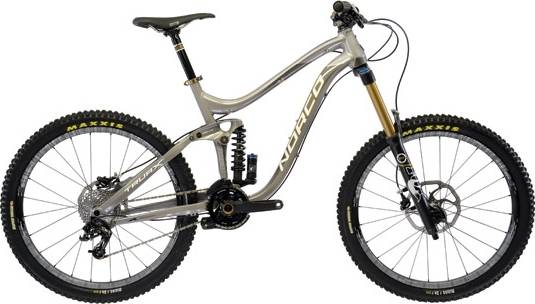

Norco Truax LE 2012
2012 Mountain
Estimate price |
6,785$
Weight | 14.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 180mm -
Travel Rear 180mm -
Fork Fox Float 36
-
Groupset XTR, e*thirteen -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRUAX freeride frame , 180 mm travel , hydroformed 6061 aluminum
Suspension Fork
Fox 36 180 Float FIT RC 2
Rear Shock
Fox DHX RC 4 coil
Drivetrain
Rear Derailleur
Shimano XTR M-985 GS mid cage
Front Derailleur
NA
Shift Levers
N/A
Cassette
PG-1070 11-36 T 10 speed
Crank
E-13 7050 alloy DH crank with 36/BG 10 SPD
Bottom Bracket
N/A
Chain
SRAM PC 1031
Pedals
Black Spire flat pedals ( Sub 400 model)
Wheels
Front Hub
Easton Havoc DH wheelset
Rear Hub
Easton Havoc DH wheelset
Rims
Easton Havoc DH wheelset
Spokes
N/A
Tires
Maxxis Minion DHF 26x2.35 Wire
Brakes
Brakes
SRAM XO hydraulic disc w/ 200 mm rotor
Brake Levers
SRAM XO
Cockpit
Stem
Easton Havoc 50 mm stem
Handlebar
Easton Havoc Carbon DH bar
Grips
Norco Lock on grips
Headset
Cane Creek 40.ZS semi intergrated , tapered
Seat
Saddle
WTB Silverado ( nicro tubular) ( Team blk)
Seatpost
Norco SL double bolt 2014 alloy post 3D forged
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.54 mm | 1.48 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm |
| Front Center | 699 mm | 719 mm | 744 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 96 mm | 96 mm | 96 mm |
| Stack | 603 mm | 608 mm | 617 mm |
| Reach | 378 mm | 396 mm | 417 mm |
| Top Tube Length | 572 mm | 592 mm | 617 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 405 mm | 445 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1144 mm | 1164 mm | 1189 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm |
| Standover Height | 794 mm | 784 mm | 774 mm |
| Front Travel | 180 mm | 180 mm | 180 mm |
| Rear Travel | 180 mm | 180 mm | 180 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Truax LE is part of the Norco Truax model. 10 bikes variations carry this model name so far. Take a sneak peek at all Norco Truax bikes models from 2012, by clicking here.
Model range prices
The most economical model, the Norco Truax Two 2012 has a starting price of 3550$. Norco Truax LE 2012 on the other hand is the most expensive at 6785$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Downhill bikes
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2012 and its price was 6785$. In conclusion, this bike price is 100.09% more expensive than the price of the average Downhill bike.
Average weight for Downhill bikes
Downhill bikes weigh an average of 15.89 kg (35.03 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 14.9 kg (32.85 lbs), the Truax LE model is a bit lighter than average. In short, the average Downhill bike weight is 6.64% higher than this one.
Truax LE components
Fork
Norco Truax LE 2012 bike is equipped with the Fox Float 36 fork, and has 180mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Fox DHX RC 4 coil, with a travel distance of 180mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Truax LE 2012 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
