Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour MOBIE
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Power Pack 500 (500 Watt) -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Urban Bosch E aluminum frame
Suspension Fork
SR Suntour Mobie-25 15mm axle, tapered steer, remote lockout, 63mm, coil spring
Drivetrain
Rear Derailleur
Shimano Deore XT RD-M772 Shadow - Black
Shift Levers
Shimano Deore SL-M590 9spd
Cassette
Shimano CS-HG300 11-36T 9spd
Crank
FSA Dyna Drive E-Bike crank for Bosch
Bottom Bracket
Bosch compatible FSA sprocket 18T stainless steel
Chain
KMC X9 9spd
Pedals
VP Flat BMX style pedal
Wheels
Front Hub
Shimano Deore 15mm Center Lock
Rear Hub
Shimano Deore 142x12 cassette rear
Rims
Alex FR30 Double wall aluminum 700C - black 23mm inner
Tires
Schwalbe Delta Cruiser Plus 47-622 Reflective Sidewall 3M guard
Brakes
Brakes
Shimano Deore BR-M6000 Hydraulic w/180mm rotor
Brake Levers
Shimano Deore BR-M6000
Cockpit
Stem
Norco SL Alloy 60mm - Black
Handlebar
Norco 6061 aluminum rise bar 31.8mm, 15mm rise, 680-720mm width
Grips
Ergon GA 30 with lock on
Headset
FSA #NO42 1.5" to 1-1/8"
Seat
Saddle
Norco Urban Dual Density
Seatpost
Norco Alloy 27.2mm - Black Stealth
Motor & Battery
Motor
Bosch Performance CX
Battery
Power Pack 500 (500 Watt)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.51 mm | 1.5 mm | 1.51 mm | 1.5 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 618 mm | 638 mm | 660 mm | 670 mm | 690 mm |
| Rake | 44 mm | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 75 mm | 75 mm | 75 mm | 70 mm | 69 mm |
| Stack | 607 mm | 607 mm | 626 mm | 649 mm | 668 mm |
| Reach | 381 mm | 402 mm | 416 mm | 430 mm | 444 mm |
| Top Tube Length | 552 mm | 577 mm | 602 mm | 627 mm | 652 mm |
| Seat Tube Angle | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 105 mm | 105 mm | 125 mm | 145 mm | 165 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1096 mm | 1117 mm | 1138 mm | 1148 mm | 1169 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 766 mm | 773 mm | 793 mm | 819 mm | 845 mm |
| Front Travel | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

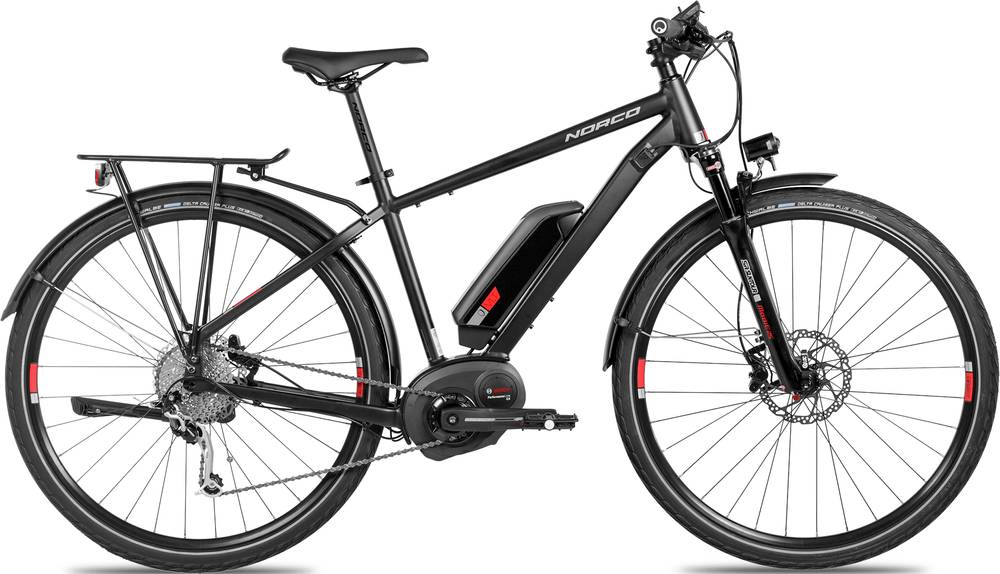

VLT S1 is a Norco E Vlt model. 6 e-bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Norco VLT R2 2018 has a starting price of 2349$. Norco VLT S1 2018 on the other hand is the most expensive at 3099$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Road e-bikes
Our math shows that the average cost of a dependable General Road e-bike is 2631$. However, you could also get a good General Road e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2018 and its price was 3099$. Comparing the average cost of a General Road e-bike to this one, you will see that VLT S1 price is 17.79% higher.
VLT S1 components
Fork
Norco VLT S1 2018 e-bike is equipped with the SunTour MOBIE fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the VLT S1 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The VLT S1 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Norco VLT S1 e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
