Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork Suntour XCT
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
158cm - 168cm
MD
166cm - 176cm
LG
174cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X6 Aluminum, Smooth Welds, Step Thru
Suspension Fork
SR Suntour XCT30, 80mm, Lockout
Drivetrain
Rear Derailleur
Shimano Altus RD-M310
Front Derailleur
Shimano Tourney FD-TY710
Shift Levers
Shimano Altus SL-M315, Rapidfire Plus
Cassette
Shimano CS-HG31, 11-34T, 8 Speed
Crank
Prowheel Alloy, 46/30T, 170mm (XS, S, M), 175mm (L, XL)
Bottom Bracket
Cartridge Bearing, BSA Threaded
Chain
KMC Z8.3
Pedals
City, Black
Wheels
Front Hub
Alloy, Weather Sealed, 9x100mm, 6-bolt
Rear Hub
Alloy, Weather Sealed, 10x135mm, HG, 6-bolt
Rims
WTB SX19 Double Wall, 32H, 29"
Tires
Kenda 700x50c Fast Rolling
Brakes
Brakes
Front: Tektro HD-M275 Hydraulic Disc, Rear: Tektro HD-M275 Hydraulic Disc
Brake Levers
Tektro HD-M275 Hydraulic
Cockpit
Stem
Aluminum, 60mm Reach, 31.8mm Clamp
Handlebar
Aluminum, 660mm (XS), 680mm (S, M) 700mm (L, XL), 25mm Rise
Grips
Norco
Headset
Zero-Stack Internal
Seat
Saddle
Norco Sport
Seatpost
Aluminum, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.73 mm | 1.66 mm | 1.59 mm | 1.53 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 621 mm | 650 | 680 mm | 711 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 627 mm | 641 mm | 655 mm | 669 mm |
| Reach | 362 mm | 387 mm | 412 mm | 437 mm |
| Top Tube Length | 540 mm | 569 mm | 598 mm | 627 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 155 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1069 mm | 1099 mm | 1129 mm | 1160 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 538 mm | 536 mm | 535 mm | 533 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 158 cm | 166 cm | 174 cm |
| Rider Max Height | 161 cm | 168 cm | 176 cm | 184 cm |

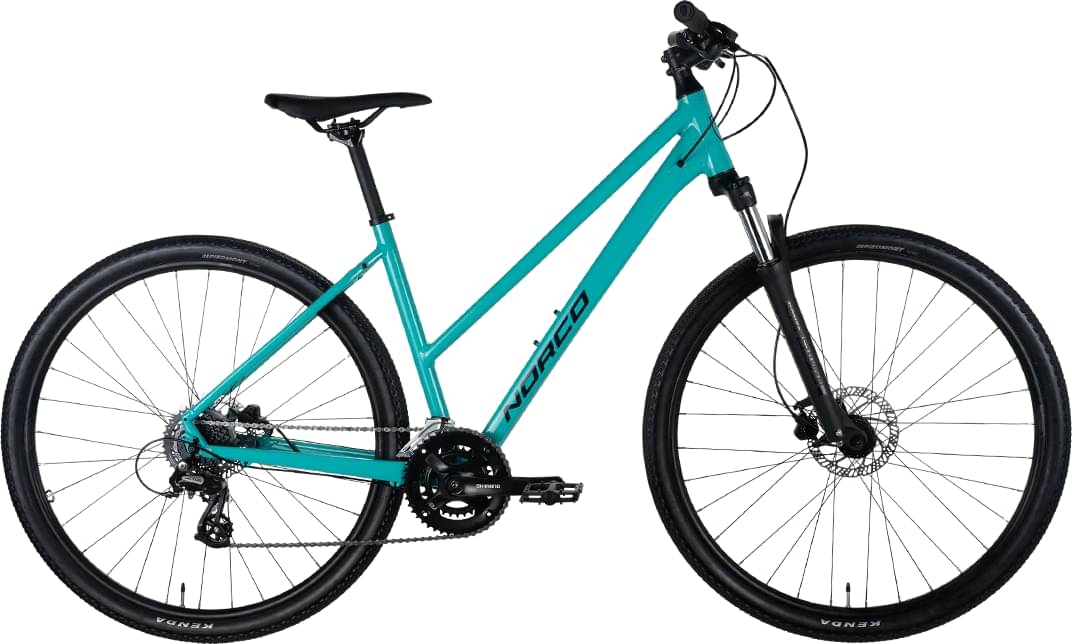

Model Overview
XFR 2 Step-Thru is part of the Norco Xfr model. Norco launched 76 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Norco XFR 3 Step-Thru 2023 is the cheapest bike model and costs 649$. Norco XFR 1 2023 is the most expensive one and costs 849$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 749$. In conclusion, this bike price is 33.27% more expensive than the price of the average Hybrid bike.
Overview of components
Fork
The XFR 2 Step-Thru comes factory-installed with the Suntour XCT fork. This has a travel range of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on XFR 2 Step-Thru are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco XFR 2 Step-Thru is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
XFR 2 Step-Thru comes in 4 sizes, that range from 152 cm – 184 cm (4.99 ft – 6.04 ft). In short, you can easily find one that suits you.
