Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
XFR Double Butted X6 w/CS Disc and Flip
Suspension Fork
SR Suntour NVX 75mm w/Hydraulic Lock-Out
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera RD-M3000 Shadow
Front Derailleur
Shimano Altus FD-M191
Shift Levers
N/A
Cassette
Shimano CS-HG200 12-32T 8speed
Crank
Shimano Acera FC-M361 48/38/28T - Black
Bottom Bracket
Cartridge Bearing BB
Chain
KMC Z72 8spd Chain Grey/Brown
Chain Tensioner
N/A
Pedals
Alloy pedal - Black
Wheels
Front Hub
Shimano CenterLock - Black
Rear Hub
Shimano CenterLock - Black
Rims
Double wall alloy 700c x 32hole - Black
Tires
Impac CrossPac 700x38c
Brakes
Brakes
Shimano BR-M365 Hydraulic w/160mm Rotor
Brake Levers
Shimano BL-M365 - Black
Disk Rotors
N/A
Cockpit
Stem
Norco - Black
Handlebar
Norco 25mm Riser - Black
Grips
Norco Grip
Headset
Zero Stack Headset w/15mm spacer
Seat
Saddle
Norco MTB Sport - Black
Seatpost
Norco Alloy 27.2mm - Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.56 mm | 1.52 mm | 1.48 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 626 mm | 642 mm | 658 mm | 679 mm | 699 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 47 mm |
| Trail | 78 mm | 75 mm | 72 mm | 72 mm | 70 mm |
| Stack | 625 mm | 635 mm | 646 mm | 655 mm | 665 mm |
| Reach | 381 mm | 398 mm | 415 mm | 432 mm | 449 mm |
| Top Tube Length | 557 mm | 582 mm | 607 mm | 632 mm | 657 mm |
| Seat Tube Angle | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 107.5 mm | 115 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1080 mm | 1095 mm | 1113 mm | 1133 mm | 1154 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 745 mm | 769 mm | 804 mm | 827 mm | 849 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

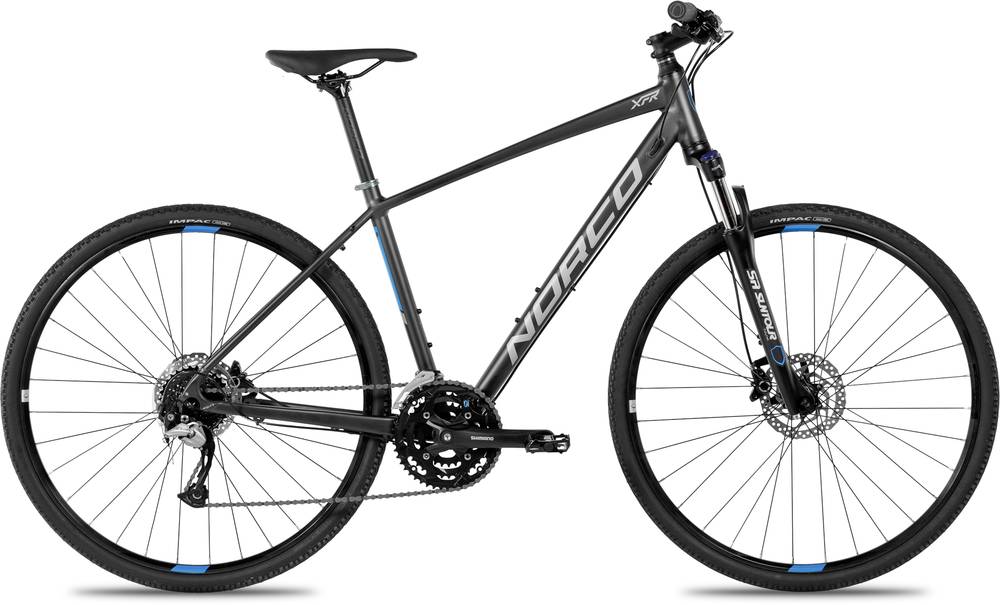

XFR 3 is a Norco Xfr model. Norco launched 76 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Norco XFR 4 2017 is the most affordable bike of this model and has a price of 549$. On the other hand, Norco XFR 1 2017, is the most expensive and costs 1099$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Norco released this model in 2017, its price was 699$. Comparing the average cost of a Hybrid bike to this one, you will see that XFR 3 price is 24.38% higher.
XFR 3 components
Fork
Norco XFR 3 2017 bike is equipped with the SunTour fork, and has 75mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the XFR 3 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco XFR 3 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
