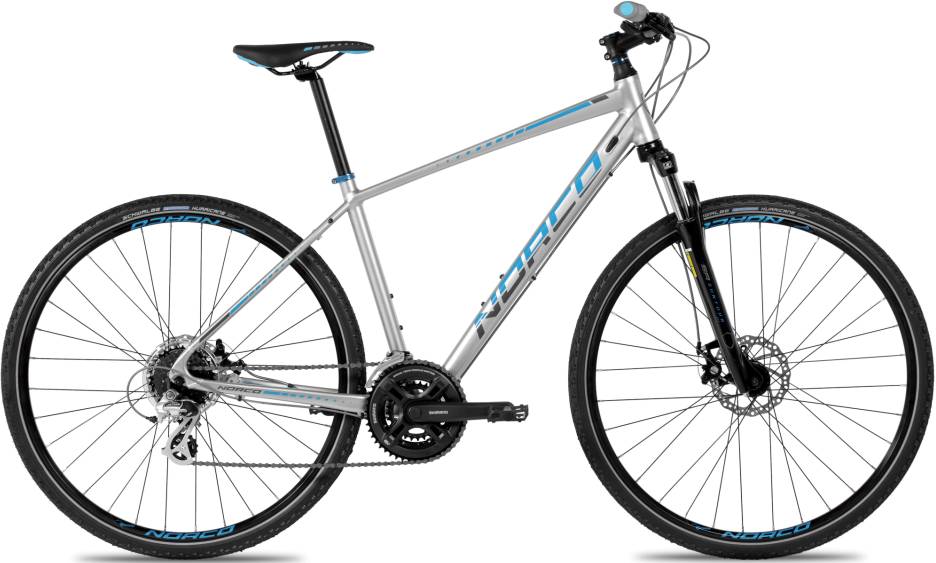

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
XFR Double Butted X6 w/CS Disc and Flip
Suspension Fork
SR Suntour NVX 75mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus RD-M310 - Black
Front Derailleur
Shimano Altus FD-M191
Shift Levers
Shift housing - Dark Grey
Cassette
Shimano CS-HG200 12-32T 8speed
Crank
Shimano Altus FC-M171 48/38/28T - Black
Bottom Bracket
Cartridge BB
Chain
KMC Z72 8spd Chain Grey/Brown
Chain Tensioner
N/A
Pedals
Resin City - Black
Wheels
Front Hub
Double Sealed Alloy Disc Hub - 32h - Black
Rear Hub
Double Sealed Alloy Disc Hub - 32h - Black
Rims
Double wall alloy 700c x 32hole - Black
Tires
N/A
Brakes
Brakes
Tektro Mechanical Disc w/160mm rotor
Brake Levers
Shimano Easy-Fire w/2-finger lever
Disk Rotors
N/A
Cockpit
Stem
Alloy - Black
Handlebar
Alloy 25mm Riser - Black
Grips
Dual Density Ergonomic - Black/Grey
Headset
FSA No.10P Semi-cartridge w/25mm spacer
Seat
Saddle
Norco MTB Sport - Black
Seatpost
Alloy 27.2mm - Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.56 mm | 1.52 mm | 1.48 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 626 mm | 642 mm | 658 mm | 679 mm | 699 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 47 mm |
| Trail | 78 mm | 75 mm | 72 mm | 72 mm | 70 mm |
| Stack | 625 mm | 635 mm | 646 mm | 655 mm | 665 mm |
| Reach | 381 mm | 398 mm | 415 mm | 432 mm | 449 mm |
| Top Tube Length | 557 mm | 582 mm | 607 mm | 632 mm | 657 mm |
| Seat Tube Angle | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 107.5 mm | 115 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1080 mm | 1095 mm | 1113 mm | 1133 mm | 1154 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 745 mm | 769 mm | 804 mm | 827 mm | 849 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
XFR 4 belongs to the Norco Xfr model. 76 bikes variations carry this model name so far. You can get a glimpse at all models from 2016, by clicking on this link.
Model range prices
Norco XFR 4 Forma 2016 is the most affordable bike of this model and has a price of 555$. On the other hand, Norco XFR 1 2016, is the most expensive and costs 1095$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 555$. Doing a quick comparison, we notice that XFR 4 price is 1.26% smaller than the average cost of a Hybrid bike.
XFR 4 components
Fork
The SunTour is included from the factory. It has a travel distance of 75mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the XFR 4 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The XFR 4 comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
