Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XXS
145cm - 159cm
XS
157cm - 168cm
SM
165cm - 176cm
MD
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
XFR Double Butted X6 w/CS Disc and Flip
Suspension Fork
SR Suntour NVX 75mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus RD-M310 - Black
Front Derailleur
Shimano Altus FD-M191
Shift Levers
N/A
Cassette
Shimano CS-HG200 12-32T 8speed
Crank
Shimano Altus FC-M171 48/38/28T - Black
Bottom Bracket
Cartridge Bearing BB
Chain
KMC Z72 8spd Chain Grey/Brown
Chain Tensioner
N/A
Pedals
Resin City - Black
Wheels
Front Hub
Double Sealed Alloy Disc Hub - 32h - Black
Rear Hub
Double Sealed Alloy Disc Hub - 32h - Black
Rims
Double wall alloy 700c x 32hole - Black
Tires
Impac CrossPac 700x38c
Brakes
Brakes
Tektro Mechanical Disc w/160mm Rotor
Brake Levers
Shimano Easy-Fire w/2-finger lever
Disk Rotors
N/A
Cockpit
Stem
Alloy - Black
Handlebar
Alloy 25mm Riser - Black
Grips
Slim Forma Grip - Black
Headset
Zero Stack Headset w/15mm spacer
Seat
Saddle
Norco MTB Forma - Black
Seatpost
Alloy 27.2mm - Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.65 mm | 1.6 mm | 1.56 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 291 mm |
| Front Center | 611 mm | 626 mm | 642 mm | 658 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 81 mm | 78 mm | 75 mm | 72 mm |
| Stack | 608 mm | 619 mm | 629 mm | 640 mm |
| Reach | 357 mm | 375 mm | 392 mm | 409 mm |
| Top Tube Length | 526 mm | 551 mm | 576 mm | 601 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 73.7 ° | 73.3 ° |
| Seat Tube Length | 350 mm | 390 mm | 430 mm | 470 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 100 mm | 107.5 mm | 115 mm | 130 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1058 mm | 1074 mm | 1089 mm | 1107 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 63 mm |
| Standover Height | 706 mm | 739 mm | 763 mm | 798 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 165 cm | 174 cm |
| Rider Max Height | 159 cm | 168 cm | 176 cm | 183 cm |

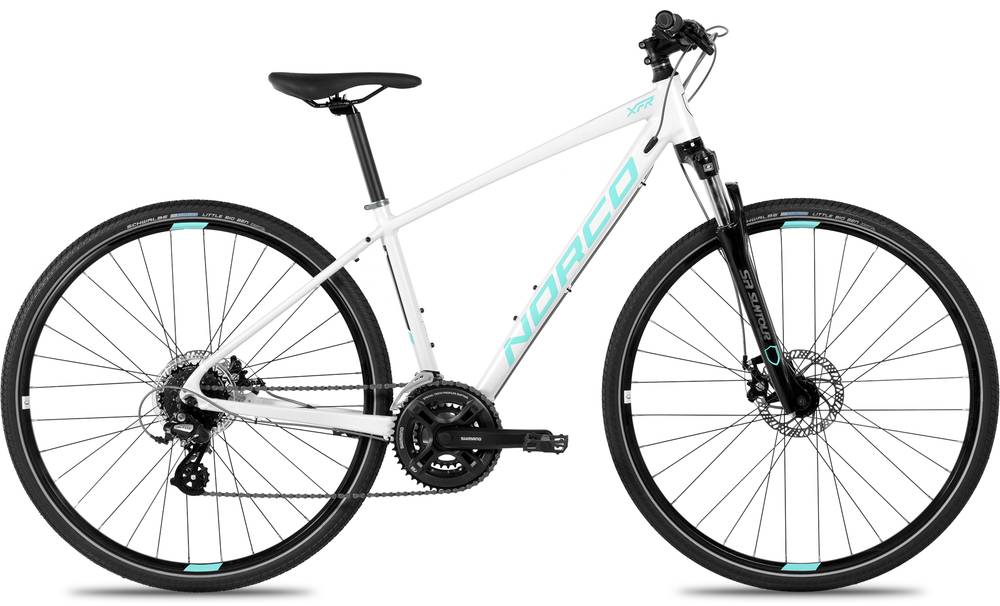

Model Overview
XFR 4 Forma is a Norco Xfr model. Norco released 76 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
The most economical model, the Norco XFR 4 Forma 2017 has a starting price of 549$. Norco XFR 1 2017 on the other hand is the most expensive at 1099$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Norco XFR 4 Forma price was 549$. If we compare this with the average Hybrid bike cost we notice that the price is 2.37% lower.
Overview of components
Fork
This bike has the SunTour fork installed. The fork’s travel is 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The XFR 4 Forma 2017 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Norco XFR 4 Forma bike has 4 sizes, in the range of 145 cm – 183 cm (4.76 ft – 6 ft). In conclusion, it won’t take much to find one that’s right for you.
