Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tourney, Altus -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 Alloy w/Comfort Stays
Suspension Fork
Hi-Tensile Steel Hybrid Fork
Drivetrain
Rear Derailleur
Shimano RD-TY500
Front Derailleur
Shimano FD-TY510
Shift Levers
Rear: Shimano Altus Easy-Fire 510 21spd, Front: Shimano Altus Easy-Fire 510 21spd
Cassette
SunRace 11-34 7spd
Crank
Shimano FC-TY301 48/38/28T - Black
Bottom Bracket
Cartridge BB
Chain
KMC Z-51
Pedals
Resin Comfort Pedal w/Kraton
Wheels
Front Hub
Alloy Sealed Hub 32h - Silver
Rear Hub
Alloy Sealed Hub 32h - Silver
Rims
Double Wall Alloy w/CNC Brake - Silver
Tires
City Slicks 700x35C
Brakes
Brakes
Tektro 837AL V-Brakes - Black
Brake Levers
Shimano Easy-Fire w/4-Finger Lever
Cockpit
Stem
Forged Alloy Adjustable Stem - Silver
Handlebar
Steel Comfort High Riser Bar - Silver
Grips
Ergonomic w/Norco Logo Bar Plug
Headset
Alloy Threaded Sealed Bearing - Silver
Seat
Saddle
Selle Royal Loire Saddle - Black w/Silver Rails
Seatpost
Alloy Suspension Seatpost - Silver
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.56 mm | 1.53 mm |
| Bottom Bracket Height | 287 mm | 287 mm | 287 mm |
| Front Center | 628 mm | 643 mm | 658 mm |
| Rake | 45 mm | 49 mm | 42 mm |
| Trail | 82 mm | 78 mm | 86 mm |
| Stack | 606 mm | 615 mm | 625 mm |
| Reach | 382 mm | 395 mm | 409 mm |
| Top Tube Length | 601 mm | 616 mm | 631 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° |
| Seat Tube Length | 355 mm | 415 mm | 475 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1096 mm | 1116 mm | 1126 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 597 mm | 570 mm | 545 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

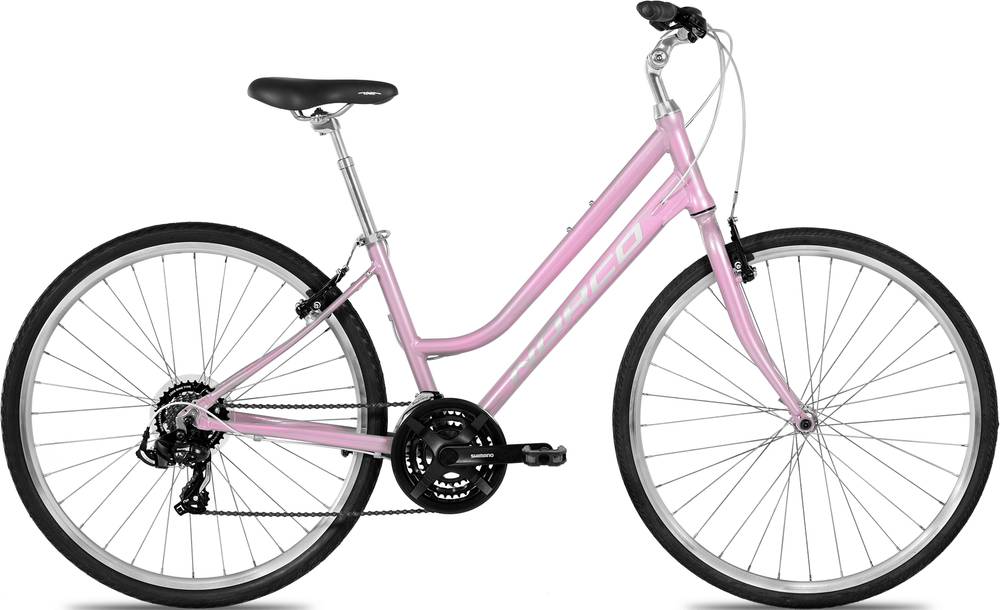

Model Overview
Yorkville Step-Thru is part of the Norco Yorkville model. 32 bikes variations carry this model name so far. Take a sneak peek at all Norco Yorkville bikes models from 2018, by clicking here.
Model range prices
Norco Yorkville Step-Thru 2018 is the most affordable bike of this model and has a price of 419$. On the other hand, Norco Yorkville 2018, is the most expensive and costs 419$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Norco released this model in 2018, its price was 419$. Doing a quick comparison, we notice that Yorkville Step-Thru price is 34.13% lower than the average cost of a Hybrid bike.
Yorkville Step-Thru components
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
The wheels on Yorkville Step-Thru are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Yorkville Step-Thru has Rim brakes installed. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
