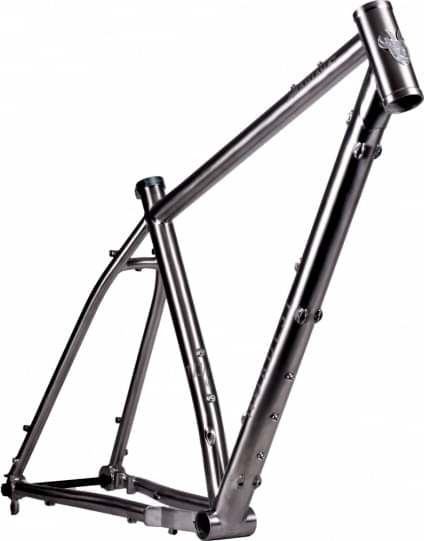

nordest KUTXO TI FRAME 2023
2023 Road
Estimate price |
1,949$
Weight | 1.84 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Frame Ti3Al2.5V double butted.
Drivetrain
Crank
1x Chainring 36T max.
Bottom Bracket
Bottom bracket 73mm BSA.
Wheels
Tires
Tires until 29er 2.4?.
Seat
Seatpost
For 31.6mm seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | MD/LG | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.48 mm | 1.44 mm |
| Front Center | 680 mm | 699 mm | 724 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm | 86 mm |
| Stack | 591 mm | 605 mm | 619 mm |
| Reach | 396 mm | 410 mm | 429 mm |
| Top Tube Length | 561 mm | 578 mm | 601 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1095 mm | 1114 mm | 1139 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
About this model
KUTXO TI FRAME is part of the Nordest Kutxo model. Nordest launched 10 frames of this model so far. Take a sneak peek at all Nordest Kutxo frames models from 2023, by clicking here.
Model range prices
Nordest KUTXO FRAME 2023 is the cheapest frame model and costs 774$. Nordest KUTXO TI FRAME Frameset 2023 is the most expensive one and costs 2229$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel frames average price
According to our calculations, the average cost of a Gravel frame that is reliable is 1505$. However, you could also get a good Gravel frame even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
When Nordest released this model in 2023, its price was 1804$. Comparing this to the average Gravel frame price, we see that the price is 19.87% higher.
Average weight for Gravel frames
If we make a quick analysis of the average weight of a Gravel frame, we get 1.93 kg (4.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly lighter than average, KUTXO TI FRAME has a weight of 1.84 kg (4.06 lbs). In short, the average Gravel frame weight is 4.89% higher than this one.
Overview of components
Fork material
KUTXO TI FRAME has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
