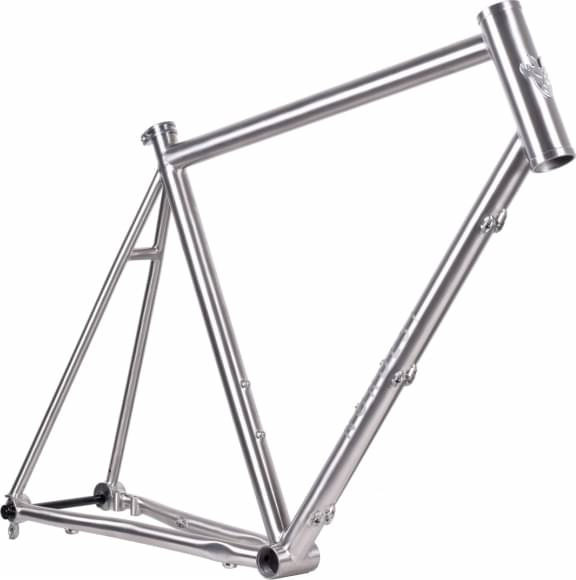

nordest MIRANDA TI FRAME 2022
2022 Road
Estimate price |
1,949$
Weight | 1.75 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Seatclamp 31.8mm, include with frame
Drivetrain
Crank
53/36T max chainrings in 2x or 46T in 1x
Seat
Seatpost
For 27.2mm seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.52 mm | 1.55 mm | 1.57 mm | 1.59 mm |
| Bottom Bracket Height | 260 mm | 260 mm | 260 mm | 263 mm | 263 mm |
| Front Center | 580 mm | 588 mm | 596 mm | 604 mm | 612 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Stack | 538 mm | 552 mm | 566 mm | 578 mm | 592 mm |
| Reach | 360 mm | 363 mm | 366 mm | 369 mm | 373 mm |
| Top Tube Length | 513 mm | 520 mm | 532 mm | 545 mm | 557 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 545 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 402 mm | 402 mm |
| Wheelbase | 968 mm | 976 mm | 984 mm | 995 mm | 1003 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm | 73 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
MIRANDA TI FRAME is part of the Nordest Miranda model. 4 frames variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Nordest MIRANDA TI FRAME 2022 is the most economical model, with a starting price of 1804$. Nordest MIRANDA TI Frameset 2022 on the other hand costs 2123$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race frames average price
If you want an acceptable Race frame you should know that the average price is 2445$. However, this doesn’t mean that if you spend less money on a Race frame, you couldn’t get a decent one. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
When Nordest released this model in 2022, its price was 1804$. If we compare this with the average Race frame cost we notice that the price is 35.53% smaller.
Average weight for Race frames
Race frames have an average weight of 1.41 kg (3.11 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 1.75 kg (3.86 lbs), Nordest frame is much heavier than average. In other words, this model is 24.11% heavier than the average Race frame.
