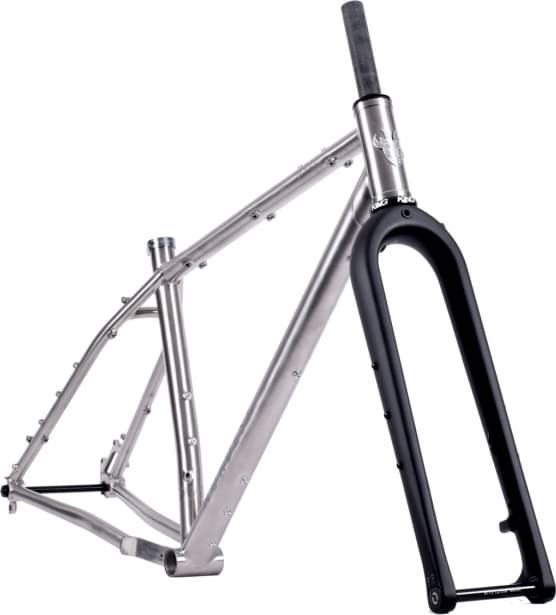

nordest SARDINHA 2 TI CARBON Frameset 2023
2023 Mountain
Estimate price |
2,407$
Weight | 1.75 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Wheels 27.5"
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Frame TITANIUM Ti3Al2.5V double butted
Suspension Fork
Nordest Kutxo Carbon fork with 490mm A-C and 51mm rake. For postmount brake caliper.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | MD/LG | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.32 mm | 1.28 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 722 mm | 751 mm | 782 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 95 mm | 95 mm | 95 mm |
| Stack | 602 mm | 611 mm | 625 mm |
| Reach | 438 mm | 463 mm | 488 mm |
| Top Tube Length | 613 mm | 639 mm | 672 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 420 mm | 450 mm | 485 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1148 mm | 1177 mm | 1208 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 27" |
About this model
SARDINHA 2 TI CARBON Frameset is a Nordest Sardinha model. Nordest released 9 frames variations of this model so far. Take a sneak peek at all Nordest Sardinha frames models from 2023, by clicking here.
Model range prices
Nordest SARDINHA 2 FRAME 2023 is the cheapest frame model and costs 774$. Nordest SARDINHA 2 TI CARBON Frameset 2023 is the most expensive one and costs 2229$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail frames
If you want an acceptable Trail frame you should know that the average price is 1736$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Nordest SARDINHA 2 TI CARBON Frameset price was 2229$. Doing a quick comparison, we notice that SARDINHA 2 TI CARBON Frameset price is 28.4% higher than the average cost of a Trail frame.
Average weight for Trail frames
The average weight for Trail frames is 2.88 kg (6.35 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much lighter than average, SARDINHA 2 TI CARBON Frameset has a weight of 1.75 kg (3.86 lbs). In conclusion, the average Trail frame weighs 64.57% more than SARDINHA 2 TI CARBON Frameset.
SARDINHA 2 TI CARBON Frameset components
Fork material
When it comes to the fork, this frame has a carbon one, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
