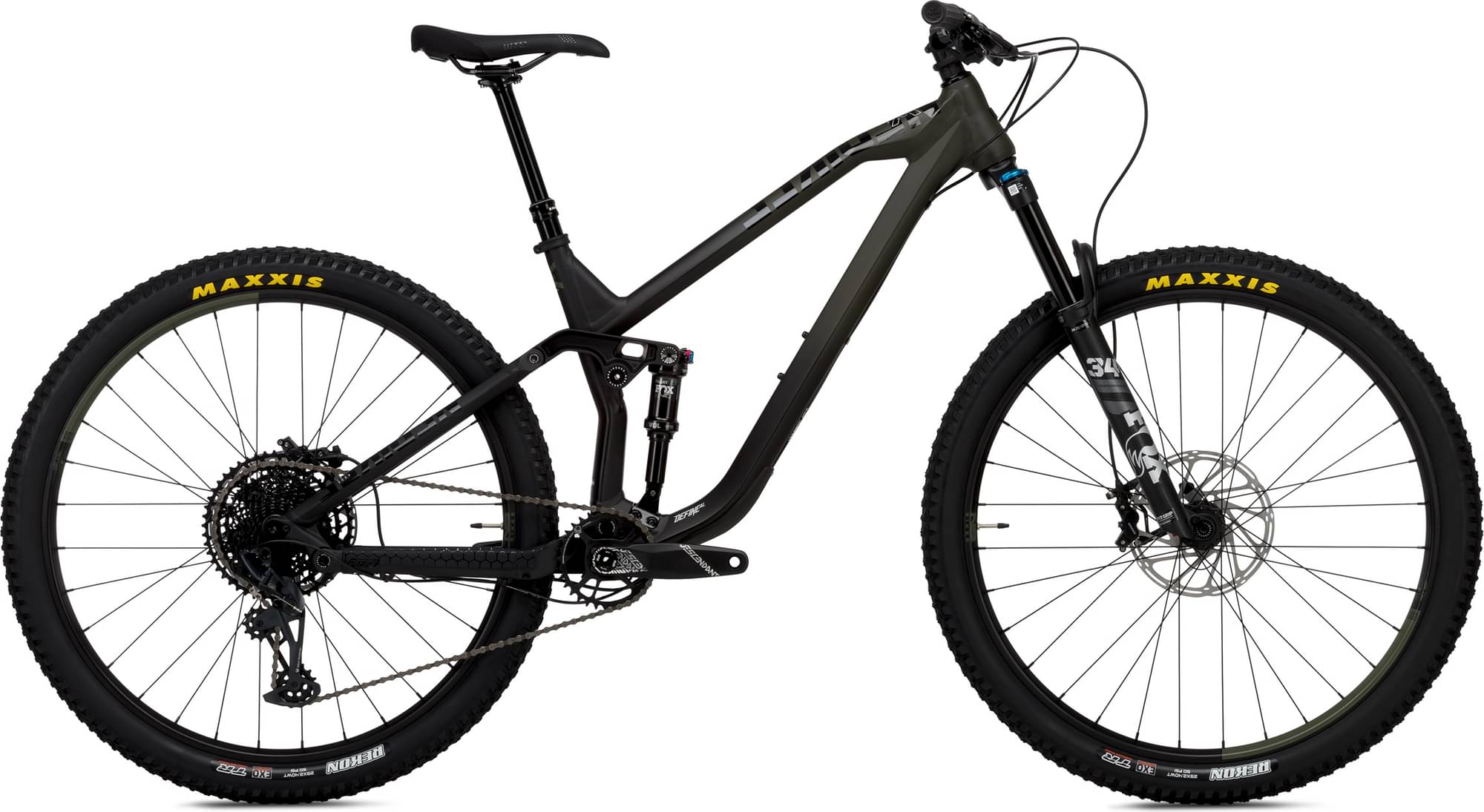

NS DEFINE AL 130 1 2022
2022 Mountain
Estimate price |
5,504$
Weight | 14.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NS Define AL w/ 130mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes,
Suspension Fork
Fox Performance 34 Float Grip, 140mm travel, 3pos-Adj w/ Open Mode Adj, 15x110mm Boost, 1.5 tapered steerer tube, 44mm offset
Rear Shock
Fox Performance Float DPS 3pos-Adj Evol LV Trunnion 185x55
Drivetrain
Shift Levers
SRAM NX EAGLE, 12spd
Cassette
SRAM PG-1210,12spd 11-50t
Crank
Truvativ Descendant 6K DUB 170mm 32t
Bottom Bracket
SRAM DUB BSA 73mm
Chain
SRAM, 12 spd
Chain Guide
/
Pedals
/
Wheels
Front Hub
NS Rotary 15 Boost 110x15 disc (sealed bearings)
Rear Hub
NS Rotary Cassette 148x12mm Boost (sealed bearings)
Rims
Octane One Solar 29”, 32h, tubeless compatible
Spokes
Spokes w/14mm nipples
Tires
Maxxis Rekon EXO TR 29x2.4" WT
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
NS Quantum Lite 35 , 45mm
Handlebar
NS Bar 35, 780mm, 20mm rise
Grips
NS Hold Fast
Headset
integrated tapered IS42/IS52, sealed bearings
Seat
Saddle
WTB Volt Medium Cromoly
Seatpost
Race Face Aeffect R S-125, M-150, L-170mm, 31,6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.28 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm |
| Front Center | 756 mm | 790 mm | 824 mm |
| Rake | 11 mm | 11 mm | 11 mm |
| Trail | 159 mm | 159 mm | 159 mm |
| Stack | 619 mm | 628 mm | 637 mm |
| Reach | 436 mm | 466 mm | 496 mm |
| Top Tube Length | 579 mm | 612 mm | 645 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 396 mm | 432 mm | 483 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1189 mm | 1223 mm | 1257 mm |
| Bottom Bracket Drop | -42 mm | -42 mm | -42 mm |
| Standover Height | 729 mm | 725 mm | 723 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
DEFINE AL 130 1 belongs to the Ns Define model. NS released 38 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the NS Define AL 130 2 2022 has a starting price of 4140$. NS Define 150 1 2022 on the other hand is the most expensive at 7644$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When NS released this model in 2022, its price was 5096$. Doing a quick comparison, we notice that DEFINE AL 130 1 price is 84.5% more expensive than the average cost of a Trail bike.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 14.8 kg (32.63 lbs), the DEFINE AL 130 1 model is considerably heavier than average. In conclusion, the average Trail bike weighs 14.02% less than DEFINE AL 130 1.
DEFINE AL 130 1 components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
NS DEFINE AL 130 1 bike has the Fox Performance Float DPS 3pos-Adj Evol LV Trunnion 185×55 model installed, and has a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the DEFINE AL 130 1 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The DEFINE AL 130 1 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the DEFINE AL 130 1. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
