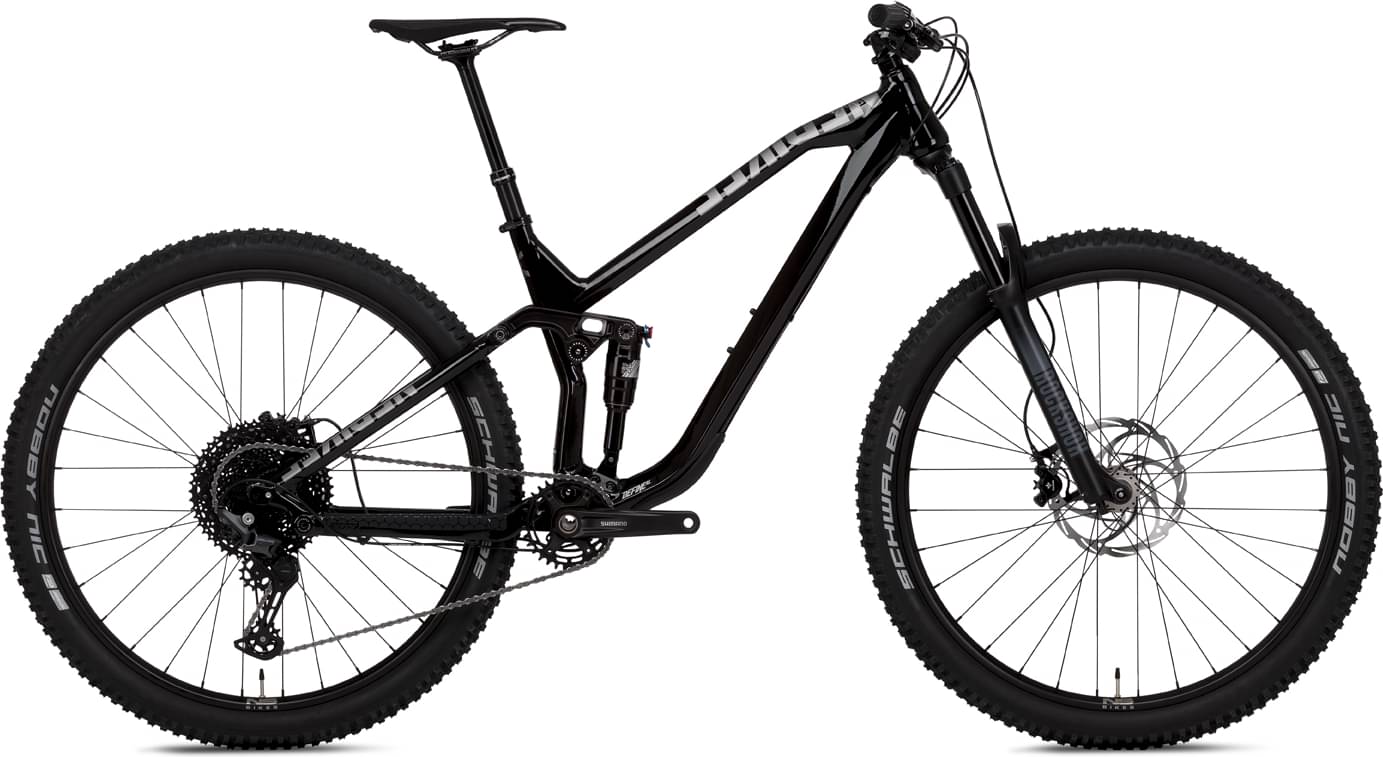

NS Define AL 130 2 2023
2023 Mountain
Estimate price |
4,303$
Weight | 15.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NS Define AL w/ 130mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, semi internal cable routing
Suspension Fork
Rock Shox 35 Gold RL 140mm travel, 15x110mm Boost, 1.5 tapered steerer tube
Rear Shock
Rock Shox Deluxe Select+ Trunnion 185x55
Drivetrain
Shift Levers
Shimano Deore M6100, 12spd
Cassette
Sunrace CSMZ800, 12spd 11-51T
Crank
Shimano Deore FC-MT5101 170mm 32t
Bottom Bracket
Shimano BSA 73mm
Chain
Shimano, 12 spd
Chain Guide
/
Pedals
/
Wheels
Front Hub
NS Rotary 15 Boost 15x110 disc (sealed bearings)
Rear Hub
NS Rotary Cassette 148x12mm Boost (sealed bearings)
Rims
Octane One Solar 29” , 32h, tubeless compatible
Spokes
Spokes w/14mm nipples
Tires
Schwalbe Nobby Nic 29x2.35"
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
NS Tone 35, 45mm
Handlebar
NS 35, 780mm wide, 20mm rise
Grips
NS Hold Fast
Headset
NS custom tapered 1&1/8"-1.5" IS42/IS52 reach adjustable offset cups (+/-10mm), sealed bearing
Seat
Saddle
WTB Volt Medium Steel SL
Seatpost
Kind shox rage i internal S-125, M-150, L-170mm, 31,6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.28 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm |
| Front Center | 756 mm | 790 mm | 824 mm |
| Rake | 11 mm | 11 mm | 11 mm |
| Trail | 159 mm | 159 mm | 159 mm |
| Stack | 619 mm | 628 mm | 637 mm |
| Reach | 436 mm | 466 mm | 496 mm |
| Top Tube Length | 579 mm | 612 mm | 645 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 396 mm | 432 mm | 483 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1189 mm | 1223 mm | 1257 mm |
| Bottom Bracket Drop | -42 mm | -42 mm | -42 mm |
| Standover Height | 729 mm | 725 mm | 723 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Define AL 130 2 is part of the Ns Define model. NS launched 38 bikes of this model so far. Take a sneak peek at all Ns Define bikes models from 2023, by clicking here.
Model range prices
NS Define AL 150 2 2023 is the most affordable bike of this model and has a price of 3821$. On the other hand, NS Define 150 1 2023, is the most expensive and costs 7644$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 3928$. Comparing this to the average Trail bike price, we see that the price is 42.22% higher.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 15.5 kg (34.17 lbs), the Define AL 130 2 model is much heavier than average. In short, the average Trail bike weight is 19.41% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Define AL 130 2 components
Fork
The Define AL 130 2 comes factory-installed with the RockShox 35 Gold RL fork. This has a travel range of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is Rock Shox Deluxe Select+ Trunnion 185×55, with a travel distance of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Define AL 130 2 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Define AL 130 2 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
