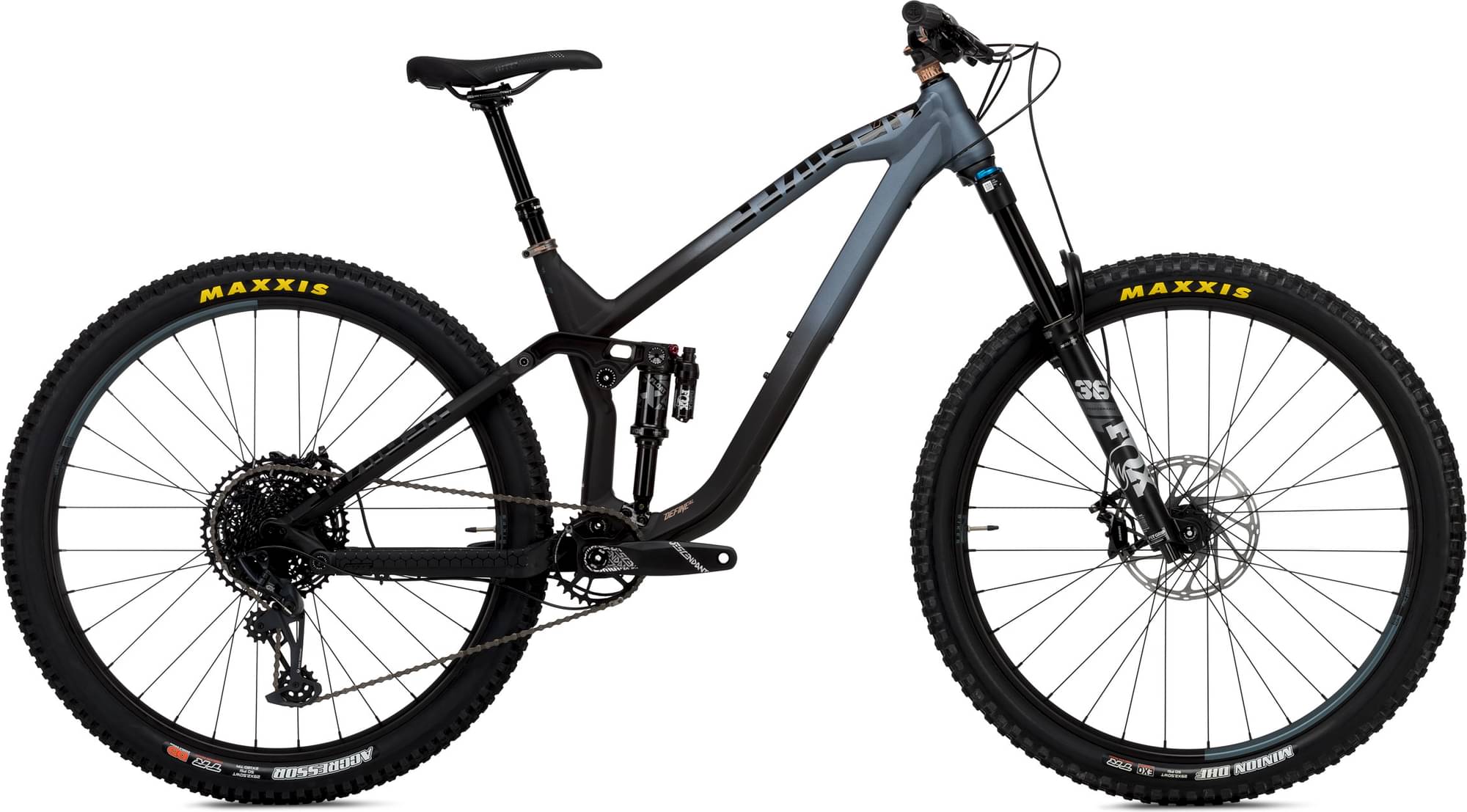

NS Define AL 150 1 2023
2023 Mountain
Estimate price |
5,350$
Weight | 14.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NS Define AL w/ 150mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes,
Suspension Fork
Fox Float 36 Performance Grip, 160mm travel, 3pos-Adj w/ Open Mode Adj, 110x15mm Boost, 1.5T, 44mm offset
Rear Shock
Fox Performace Float X 2pos-Adj Trunnion, Evol LV, DPX2 205x62,5
Drivetrain
Shift Levers
SRAM NX EAGLE, 12spd
Cassette
SRAM PG-1210,12spd 11-50t
Crank
Truvativ Descendant 6K DUB 170mm 32t
Bottom Bracket
SRAM DUB BSA 73mm
Chain
SRAM, 12 spd
Chain Guide
/
Pedals
/
Wheels
Front Hub
NS Rotary 15 Boost 15x110 disc (sealed bearings)
Rear Hub
NS Rotary Cassette 148x12mm Boost (sealed bearings)
Rims
Octane One Solar 29”, tubeless compatible
Spokes
Spokes w/14mm nipples
Tires
Maxxis DHF EXO/TR 29x2.5" WT / Maxxis Aggressor EXO/DD/TR 29x2.5" WT
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
NS Quantum Lite 35 , 45mm
Handlebar
NS Bar 35, 800mm, 20mm rise
Grips
NS Hold Fast
Headset
integrated tapered IS42/IS52, sealed bearings
Seat
Saddle
WTB Volt Medium Cromoly
Seatpost
Race Face Aeffect R S-125, M-150, L-170mm, 31,6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Front Center | 763 mm | 798 mm | 832 mm |
| Rake | 14 mm | 14 mm | 14 mm |
| Trail | 163 mm | 163 mm | 163 mm |
| Stack | 626 mm | 635 mm | 644 mm |
| Reach | 426 mm | 456 mm | 486 mm |
| Top Tube Length | 582 mm | 615 mm | 648 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 396 mm | 432 mm | 483 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1197 mm | 1232 mm | 1266 mm |
| Bottom Bracket Drop | -35 mm | -35 mm | -35 mm |
| Standover Height | 742 mm | 738 mm | 735 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Define AL 150 1 is part of the Ns Define model. NS released 38 bikes variations of this model so far. You can easily view all of the Ns Define bikes models from 2023, here.
Model range prices
The most economical model, the NS Define AL 150 2 2023 has a starting price of 3821$. NS Define 150 1 2023 on the other hand is the most expensive at 7644$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 4883$. Doing a quick comparison, we notice that Define AL 150 1 price is 35.68% more expensive than the average cost of an Enduro bike.
Average weight for Enduro bikes
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 14.9 kg (32.85 lbs), NS bike is slightly heavier than average. In conclusion, the average Enduro bike weighs 4.41% less than Define AL 150 1.
Define AL 150 1 components
Fork
The Define AL 150 1 comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Fox Performace Float X 2pos-Adj Trunnion, with a travel distance of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the Define AL 150 1 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. NS Define AL 150 1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Define AL 150 1 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
