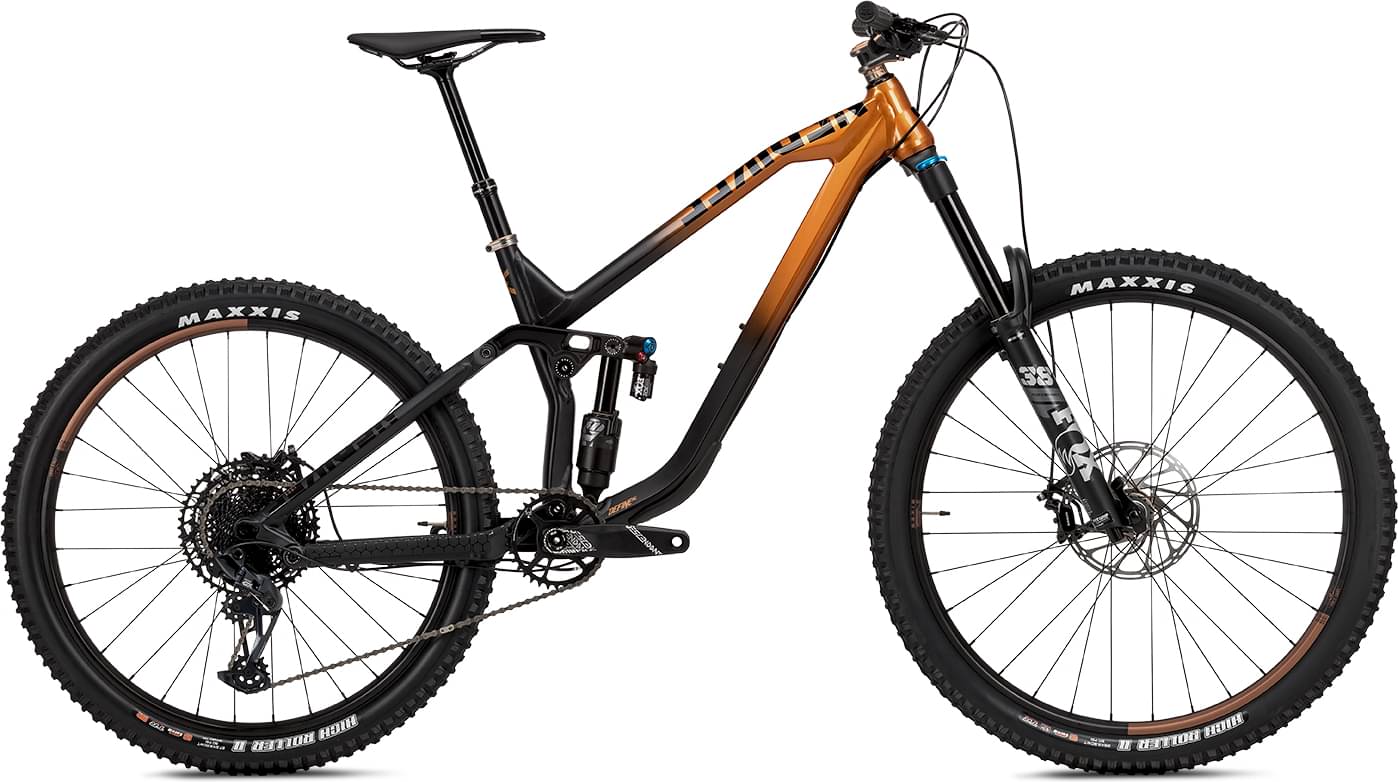

NS Define AL 170 1 2023
2023 Mountain
Estimate price |
5,816$
Weight | 15.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 180mm -
Travel Rear 170mm -
Fork Fox Performance Float 38
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NS Define AL w/ 170mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, semi internal cable routing
Suspension Fork
Fox Float 38 Performance Grip, 180mm travel, 3 Pos Micro Adj Lever, 110x15mm Boost, 1.5T, 44mm offset
Rear Shock
Fox Float X2 Performance w/ LSC, LSR Trunnion 225x70mm
Drivetrain
Shift Levers
SRAM NX EAGLE, 12spd
Cassette
SRAM PG-1210,12spd 11-50t
Crank
Truvativ Descendant 6k DUB 170mm 34t
Bottom Bracket
SRAM DUB BSA 73mm
Chain
SRAM, 12 spd
Chain Guide
/
Pedals
/
Wheels
Front Hub
NS Rotary 15 Boost 110x15mm disc (sealed bearings)
Rear Hub
NS Rotary Cassette 148x12mm Boost (sealed bearings)
Rims
Octane One Solar 29” front, Octane One Solar 27.5” rear, 32h, tubeless ready
Spokes
Spokes w/14mm nipples
Tires
Maxxis High Roller II 29x2.5" WT TR EXO / Maxxis High Roller II 27.5x2.4" TR DH
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
NS Quantum Lite 35 , 45mm
Handlebar
NS Bar 35, 800mm, 20mm rise
Grips
NS Hold Fast
Headset
GW integrated tapered IS42/IS52, sealed bearings
Seat
Saddle
WTB Volt Medium Cromoly
Seatpost
Race Face Aeffect R S-125, M-150, L-170mm, 31,6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.4 mm | 1.34 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Front Center | 781 mm | 811 mm | 846 mm |
| Rake | 35 mm | 35 mm | 37 mm |
| Trail | 140 mm | 140 mm | 138 mm |
| Stack | 640 mm | 640 mm | 649 mm |
| Reach | 426 mm | 456 mm | 486 mm |
| Top Tube Length | 588 mm | 620 mm | 650 |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 396 mm | 432 mm | 483 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1214 mm | 1244 mm | 1280 mm |
| Bottom Bracket Drop | -7 mm | -7 mm | -7 mm |
| Standover Height | 761 mm | 753 mm | 748 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Define AL 170 1 belongs to the Ns Define model. NS released 38 bikes variations of this model so far. You can easily view all of the Ns Define bikes models from 2023, here.
Model range prices
NS Define AL 150 2 2023 is the most economical model, with a starting price of 3821$. NS Define 150 1 2023 on the other hand costs 7644$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, NS Define AL 170 1 price was 5308$. In conclusion, this bike price is 47.49% higher than the price of the average Enduro bike.
Enduro bikes average weight
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 15.5 kg (34.17 lbs), NS bike is a bit heavier than average. In short, the average Enduro bike weight is 8.62% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
NS Define AL 170 1 2023 bike is equipped with the Fox Performance Float 38 fork, and has 180mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
NS Define AL 170 1 bike has the Fox Float X2 Performance w/ LSC model installed, and has a travel of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Define AL 170 1 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Define AL 170 1 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
NS Define AL 170 1 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
