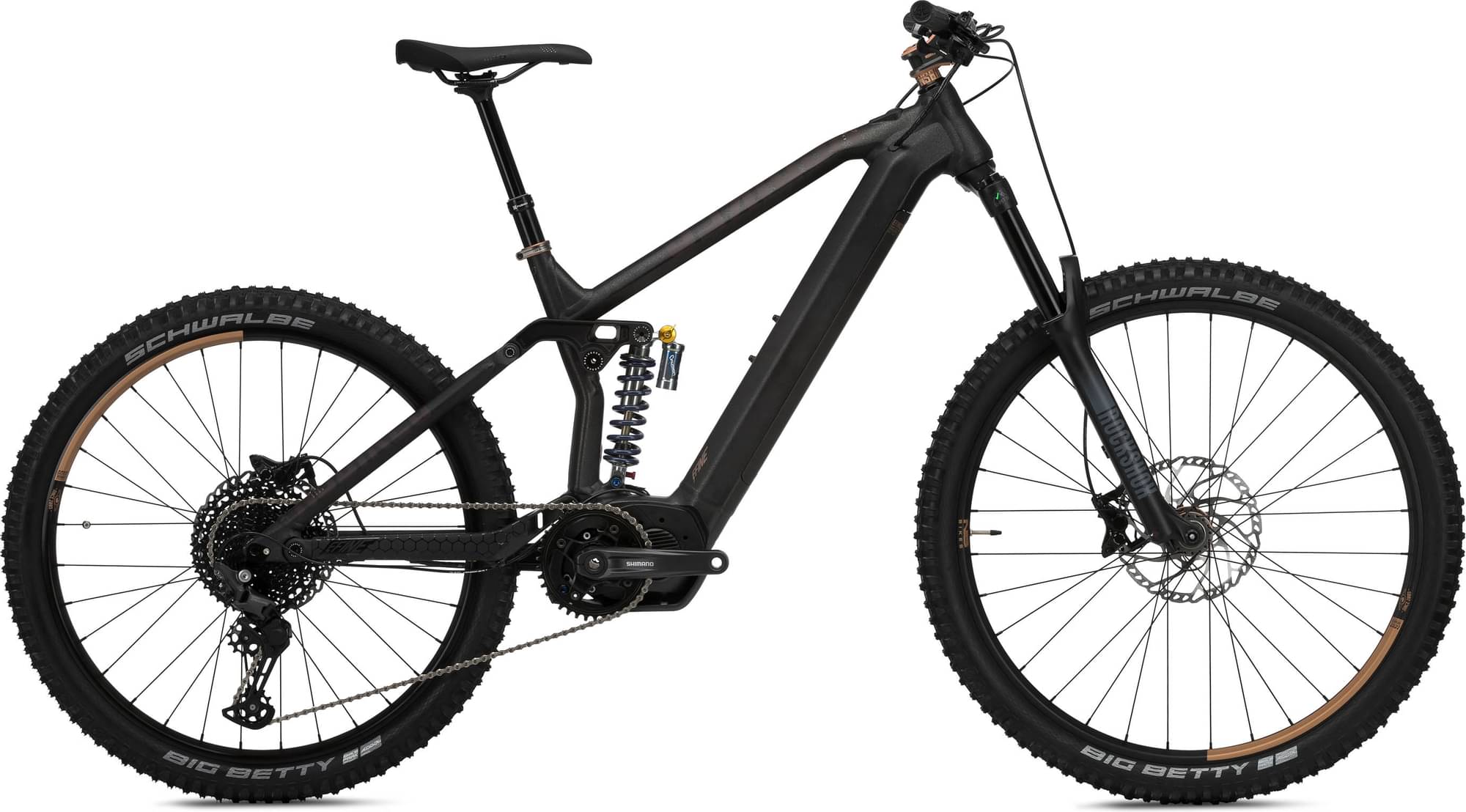

NS E-Fine 2 2022
2022 E-bike
Estimate price |
6,979$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Gold RL
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery SHIMANO STEPS -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NS Bikes E-fine AL w/ 150mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, Shimano Steps E7000 system 504WH integrated Shimano battery
Suspension Fork
Rock Shox 35 GOLD RL CROWN ADJUST 29, DEBONAIR 160MM travel E-MTB,15x110mm Boost, 1.5 tapered steerer tube, 44mm offset
Rear Shock
X-FUSION H3C Trunnion 205x62,5, spring
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100, 11spd
Shift Levers
Shimano Deore SL-M5100-R, 11spd
Cassette
Sun Race CSMS7, 11-46t, 11spd
Crank
Shimano FC-E8000, 165mm, 38t
Bottom Bracket
Shimano Steps E7000
Chain
KMC e11 Silver, 11spd
Chain Guide
/
Pedals
/
Wheels
Front Hub
NS Bikes Rotary 110x15mm Boost (sealed bearings)
Rear Hub
NS Rotary Cassette 148x12mm Boost (sealed bearings)
Rims
Octane One Solar 29” front, Octane One Solar 27.5” rear, 32h, tubeless ready
Spokes
Spokes w/14mm nipples
Tires
Schwalbe big betty BikePark 29x2.4" / Schwalbe big betty BikePark 27.5x2.4"
Brakes
Brakes
Front: Shimano Deore MT420 4 piston, 203mm, Rear: Shimano Deore MT420 4 piston, 203mm
Cockpit
Stem
NS Quantum Lite 35, 45mm
Handlebar
NS Bar 35, 800mm, 20mm rise
Grips
NS Hold Fast
Headset
NS Bikes custom tapered IS42/IS52, sealed bearing
Seat
Saddle
WTB Volt Medium Cromoly
Seatpost
X-Fusion Manic internal S
Motor & Battery
Motor
Shimano E7000
Battery
SHIMANO STEPS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.37 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 335 mm |
| Front Center | 779 mm | 805 mm | 838 mm |
| Rake | 32 mm | 26 mm | 27 mm |
| Trail | 149 mm | 155 mm | 154 mm |
| Stack | 632 mm | 642 mm | 651 mm |
| Reach | 421 mm | 448 mm | 476 mm |
| Top Tube Length | 593 mm | 618 mm | 650 |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 396 mm | 432 mm | 480 mm |
| Head Tube Angle | 63.8 ° | 63.8 ° | 63.8 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1229 mm | 1255 mm | 1288 mm |
| Bottom Bracket Drop | -10 mm | -10 mm | -10 mm |
| Standover Height | 779 mm | 782 mm | 785 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
E-Fine 2 is a Ns E E Fine model. NS launched 4 e-bikes of this model so far. You can easily view all of the Ns E E Fine e-bikes models from 2022, here.
Model range prices
NS E-Fine 2 2022 is the cheapest e-bike model and costs 6370$. NS E-Fine 1 2022 is the most expensive one and costs 8175$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When NS released this model in 2022, its price was 6370$. Doing a quick comparison, we notice that E-Fine 2 price is 33.12% more expensive than the average cost of an Enduro e-bike.
Enduro e-bikes average weight
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
E-Fine 2 weighs 24.5 kg (54.01 lbs) and is slightly heavier than the average. In short, the average Enduro e-bike weight is 4.61% lower than this one.
Overview of components
Fork
This e-bike has the RockShox 35 Gold RL fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the X-FUSION H3C Trunnion 205×62 rear shock model, which has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on E-Fine 2 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The NS model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
