Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork SunTour
-
Groupset NX, Suntour SR -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour Axon LOR DS 15QLC32, 9x100mm axle, aluminum tapered steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX, Type 2.1, long cage, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
Sun Race CSMS7, 11-speed, 11-42 tooth
Crank
SR Suntour Zeron 1x, 175mm length
Bottom Bracket
SR Suntour Euro BSA
Chain
SRAM, 11-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Front: NS disc, sealed bearing, Rear: NS Cassette, 135x10mm, sealed bearing
Rear Hub
Front: NS disc, sealed bearing, Rear: NS Cassette, 135x10mm, sealed bearing
Rims
Octane One Solar, tubeless ready
Spokes
14mm nipples
Tires
WTB Trail Boss, foldable bead, TCS Light/Fast Rolling Dual DNA Compound, Lightweight Skinwall, 29" x 2.4"
Brakes
Brakes
SRAM Level, 180mm rotors
Brake Levers
SRAM Level
Cockpit
Stem
NS Tone, 31.8mm clamp, 45mm length
Handlebar
NS, 760mm width
Grips
NS Hold Fast
Headset
GW integrated, tapered IS42/52, sealed bearings
Seat
Saddle
Octane One Rocker, steel rails
Seatpost
Kalloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.44 mm | 1.38 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm |
| Front Center | 718 mm | 743 mm | 771 mm |
| Rake | 51 mm | 52 mm | 51 mm |
| Trail | 107 mm | 106 mm | 107 mm |
| Stack | 625 mm | 635 mm | 644 mm |
| Reach | 422 mm | 442 mm | 467 mm |
| Top Tube Length | 594 mm | 617 mm | 644 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 407 mm | 445 mm | 495 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1139 mm | 1164 mm | 1192 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 732 mm | 758 mm | 793 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

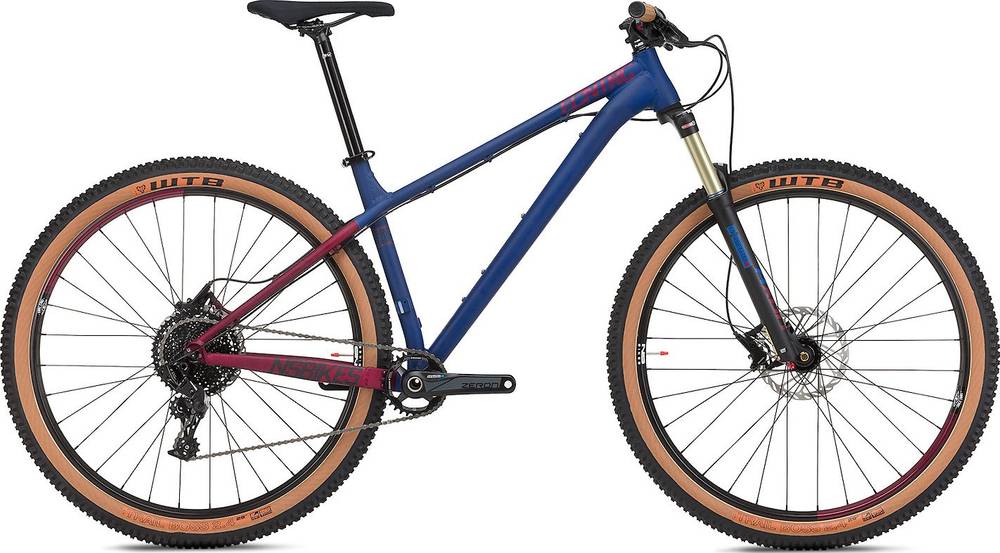

Eccentric Lite 1 is part of the Ns Eccentric model. There are 31 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, Eccentric Lite 1 has a weight of 13 kg (28.66 lbs). In short, the average Trail bike weight is 0.15% lower than this one.
Overview of components
Fork
The SunTour is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When it comes to wheels, the Eccentric Lite 1 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. NS Eccentric Lite 1 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Eccentric Lite 1 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
