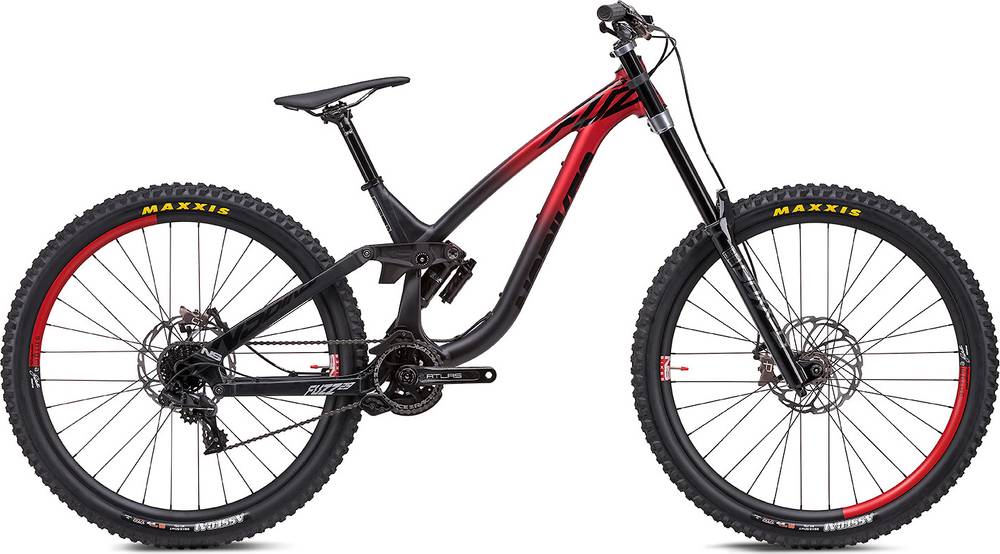

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 200mm -
Travel Rear 190mm -
Fork RockShox BoXXer Ultimate
-
Groupset GX, Race Face -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox BoXXer Ultimate World Cup RC2, Charger 2 damper, DebonAir, 46mm offset, 110x20mm Boost thru-axle
Rear Shock
RockShox SuperDeluxe Ulitmate DH, DebonAir RC, trunnion mount, 225mm x 75mm
Drivetrain
Rear Derailleur
SRAM GX DH, 7-speed, X-HORIZON
Front Derailleur
N/A
Shift Levers
SRAM GX DH, 7-speed
Cassette
SRAM PG-720 DH, 7-speed 11-25 tooth
Crank
Race Face Atlas, 165mm length
Bottom Bracket
Race Face BSA
Chain
SRAM, 12-speed
Chain Guide
Mozartt Presto Alu upper and lower guides with bashguard
Pedals
N/A
Wheels
Front Hub
NS Rotary, sealed bearings, 110x20mm Boost front, 157x12mm SuperBoost rear
Rear Hub
NS Rotary, sealed bearings, 110x20mm Boost front, 157x12mm SuperBoost rear
Rims
NS Enigma Rock, 32 hole, tubeless ready
Spokes
14mm nipples
Tires
Maxxis Assegai, MaxxGrip, 3C, DH, TR, 29" x 2.5"
Brakes
Brakes
Hayes Dominion, 4-piston, 200mm rotors
Brake Levers
Hayes Dominion
Cockpit
Stem
NS Direct Mount, 31.8mm clamp, 40-48mm length (two positions)
Handlebar
NS Licence, 31.8mm bore, 820mm width
Grips
NS Hold Fast Supersoft
Headset
NS custom EX56/56, sealed bearings, reach adjustable offset cups (+/- 16mm)
Seat
Saddle
Octane One Crit, CrMo hollow rails
Seatpost
Kalloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 358 mm | 358 mm |
| Front Center | 820 mm | 849 mm |
| Rake | 54 mm | 54 mm |
| Trail | 130 mm | 130 mm |
| Stack | 630 mm | 639 mm |
| Reach | 450 mm | 474 mm |
| Top Tube Length | 651 mm | 680 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 402 mm | 402 mm |
| Head Tube Angle | 63 ° | 63 ° |
| Chainstay Length | 457 mm | 457 mm |
| Wheelbase | 1277 mm | 1306 mm |
| Bottom Bracket Drop | 16 mm | 16 mm |
| Standover Height | 720 mm | 722 mm |
| Wheels | 29" | 29" |
About this model
Fuzz 29 1 belongs to the Ns Fuzz model. 16 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill bikes
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Downhill bikes average weight
Downhill bikes have an average weight of 15.89 kg (35.03 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 16.4 kg (36.16 lbs), the Fuzz 29 1 model is slightly heavier than average. In other words, this model is 3.21% heavier than the average Downhill bike.
Fuzz 29 1 components
Fork
The fork installed on this bike is the RockShox BoXXer Ultimate model. The travel on this model is 200mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Fuzz 29 1 has a rear shock with a travel of 190mm. The model RockShox SuperDeluxe Ulitmate DH is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Fuzz 29 1 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. NS Fuzz 29 1 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
