Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 203mm -
Travel Rear 190mm -
Fork Fox Factory Float 40
-
Groupset GX, Race Face -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 40 Factory, GRIP2 damper, high/low-speed compression adjust, high/low-speed rebound adjust, 56mm offset, 110x20mm Boost thru-axle
Rear Shock
FOX FLOAT X2 Performance, low-speed compression adjust, low-speed rebound adjust, trunnion mount, 225mm x 75mm
Drivetrain
Rear Derailleur
SRAM GX DH, 7-speed, X-HORIZON
Front Derailleur
None
Shift Levers
SRAM GX DH, 7-speed
Cassette
SRAM PG-720 DH, 7-speed, 11-25 tooth
Crank
Race Face Atlas, 165mm length
Bottom Bracket
Race Face, 83mm English/BSA threaded
Chain
SRAM, 11-speed
Chain Guide
Mozartt Presto ST upper and lower guides with bashguard
Pedals
None
Wheels
Front Hub
NS Rotary, sealed bearings, 110x20mm Boost front, 157x12mm rear with HG driver
Rear Hub
NS Rotary, sealed bearings, 110x20mm Boost front, 157x12mm rear with HG driver
Rims
NS Enigma Rock, 32 hole, tubeless compatible
Spokes
14mm nipples
Tires
Maxxis Assegai, 3C MaxxGrip, DH casing, TR, 29" x 2.5"
Brakes
Brakes
Hayes Dominion A4, 4-piston, 200mm rotors
Brake Levers
Hayes Dominion
Cockpit
Stem
NS Direct Mount, 31.8mm bar clamp, 40-48mm length (two positions)
Handlebar
NS Licence, 31.8mm clamp diameter, 820mm width
Grips
NS Hold Fast
Headset
NS custom EX56/56, sealed bearings, reach adjustable offset cups (+/- 8mm)
Seat
Saddle
Octane One Crit, CrMo hollow rails
Seatpost
Kalloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 358 mm | 358 mm |
| Front Center | 820 mm | 849 mm |
| Rake | 54 mm | 54 mm |
| Trail | 130 mm | 130 mm |
| Stack | 630 mm | 639 mm |
| Reach | 450 mm | 474 mm |
| Top Tube Length | 651 mm | 680 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 402 mm | 402 mm |
| Head Tube Angle | 63 ° | 63 ° |
| Chainstay Length | 457 mm | 457 mm |
| Wheelbase | 1277 mm | 1306 mm |
| Bottom Bracket Drop | 16 mm | 16 mm |
| Standover Height | 720 mm | 722 mm |
| Wheels | 29" | 29" |
Model Overview

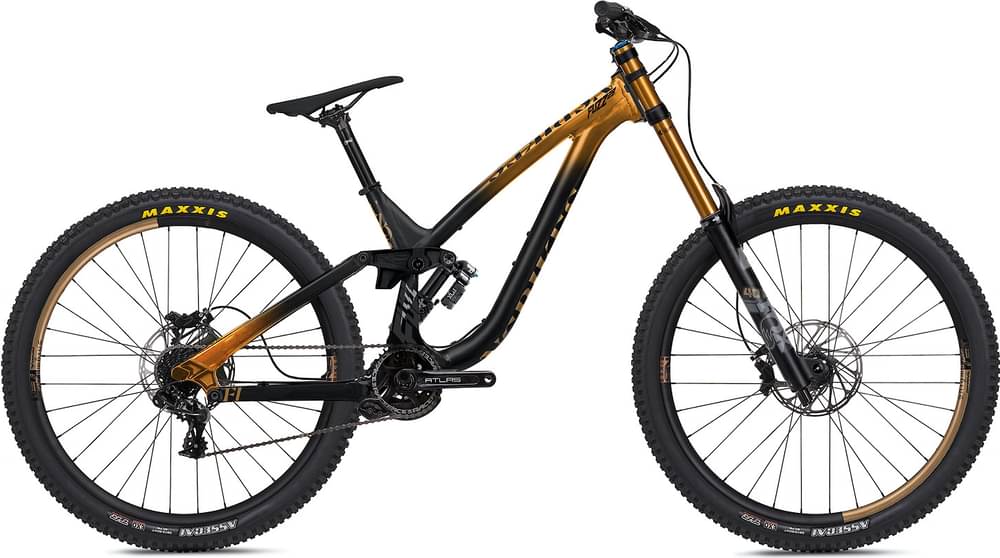

Fuzz 29 1 completes the Ns Fuzz model. NS released 16 bikes variations of this model so far. Take a sneak peek at all Ns Fuzz bikes models from 2021, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Downhill bikes average price
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Downhill bikes
Downhill bikes have an average weight of 15.89 kg (35.03 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 16.4 kg (36.16 lbs), the Fuzz 29 1 model is slightly heavier than average. In conclusion, the average Downhill bike weighs 3.21% less than Fuzz 29 1.
Overview of components
Fork
This bike has the Fox Factory Float 40 fork installed. The fork’s travel is 203mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the FOX FLOAT X2 Performance rear shock model, which has a travel of 190mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Fuzz 29 1 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fuzz 29 1 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
