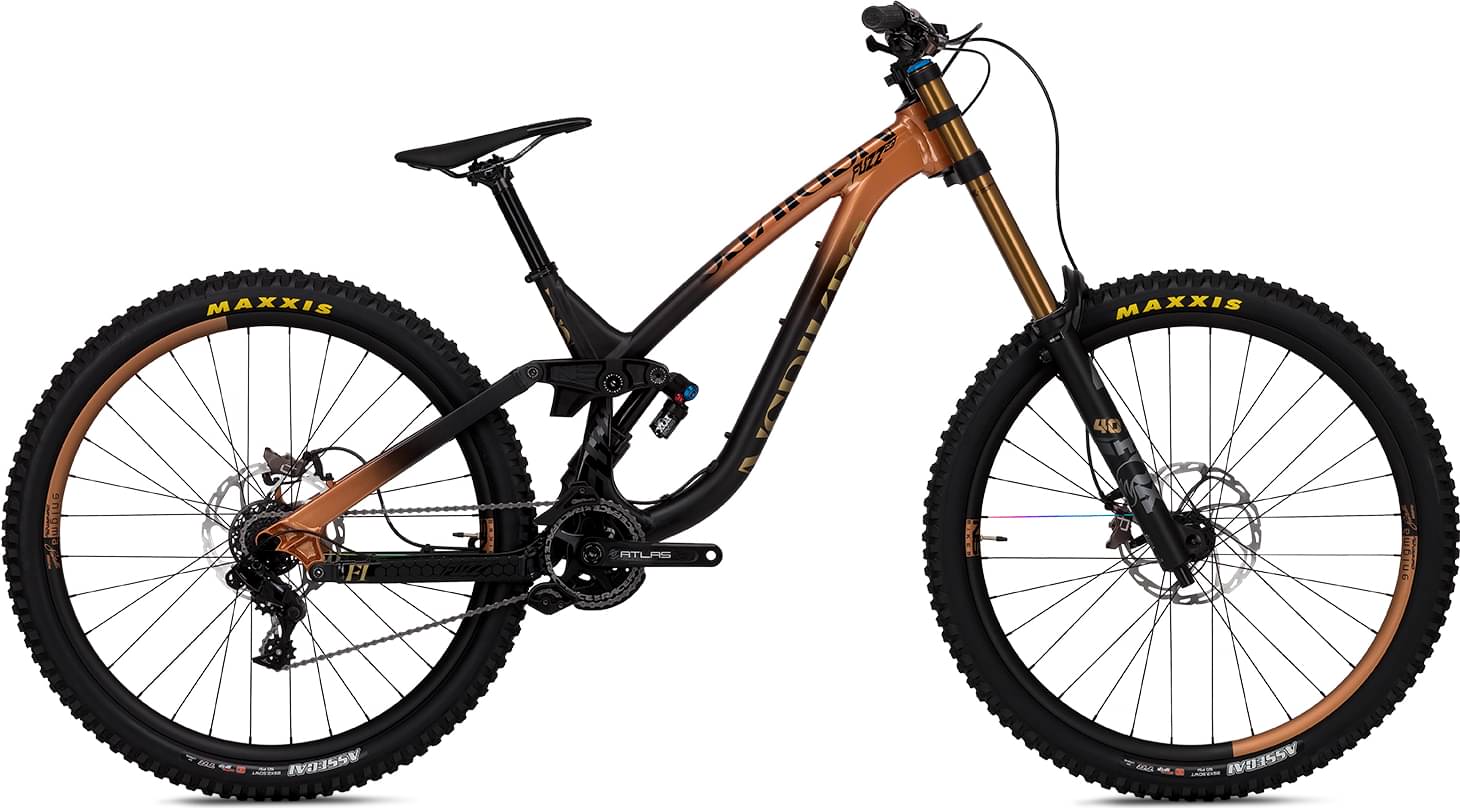

NS Fuzz 29 1 2023
2023 Mountain
Estimate price |
7,569$
Weight | 16.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 203mm -
Travel Rear 190mm -
Fork Fox Factory Float 40
-
Groupset GX, Race Face -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NS Fuzz 29 w/ 190mm travel, 1.5'' head tube with custom reach adjustable offset cups (+/- 16mm), AL6061-T6 +AL6066-T6, custom formed and butted tubes
Suspension Fork
Fox Float 40 Factory 203mm travel, Grip 2, HSC, LSC, HSR, LSR, 110x20mm Boost, 1&1/8” steerer, 56mm offset
Rear Shock
Fox Float X2 Performance w/ LSC, LSR, Trunnion 225x75mm
Drivetrain
Shift Levers
SRAM GX DH, 7spd
Cassette
SRAM PG-720 DH, 7 speed 11-25t
Crank
Race Face Atlas 165mm 36t
Bottom Bracket
Race Face BSA 83mm
Chain
SRAM, 11 spd
Chain Guide
Mozartt Presto ST with bashguard
Pedals
/
Wheels
Front Hub
NS Rotary 20 Boost 110x20 disc (sealed bearings)
Rear Hub
NS Rotary Cassette 157x12mm (sealed bearings)
Rims
NS Enigma Rock 29", 32h, tubeless compatible
Spokes
Spokes w/14mm nipples
Tires
Maxxis Assegai MaxxGrip 3C DH TR 29.5x2.50
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
NS Direct Mount 31.8 (40-48mm / 2 positions)
Handlebar
NS Licence 31.8, 820mm
Grips
NS Hold Fast
Headset
NS custom 1.5" EX56/56, sealed bearings, reach adjustable offset cups (+/- 16mm)
Seat
Saddle
Octane One Crit , CrMo hollow rails
Seatpost
Kalloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 390 mm | 390 mm |
| Front Center | 820 mm | 849 mm |
| Rake | 39 mm | 40 mm |
| Trail | 147 mm | 146 mm |
| Stack | 630 mm | 639 mm |
| Reach | 450 mm | 474 mm |
| Top Tube Length | 651 mm | 680 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 402 mm | 402 mm |
| Head Tube Angle | 63 ° | 63 ° |
| Head Tube Length | 100 mm | 110 mm |
| Chainstay Length | 457 mm | 457 mm |
| Wheelbase | 1277 mm | 1306 mm |
| Bottom Bracket Drop | -16 mm | -16 mm |
| Standover Height | 720 mm | 722 mm |
| Wheels | 29" | 29" |
About this model
Fuzz 29 1 completes the Ns Fuzz model. 16 bikes variations carry this model name so far. You can easily view all of the Ns Fuzz bikes models from 2023, here.
Model range prices
NS Fuzz 27.5 2023 is the cheapest bike model and costs 5096$. NS Fuzz 29 1 2023 is the most expensive one and costs 7007$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Downhill bikes average price
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 7007$. Comparing the average cost of a Downhill bike to this one, you will see that Fuzz 29 1 price is 106.64% more expensive.
Downhill bikes average weight
The average weight for Downhill bikes is 15.89 kg (35.03 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 16.4 kg (36.16 lbs), NS bike is slightly heavier than average. To sum up, it’s 3.21% heavier than the average weight of Downhill bikes.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 40 model. The travel on this model is 203mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
NS Fuzz 29 1 bike has the Fox Float X2 Performance w/ LSC model installed, and has a travel of 190mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Fuzz 29 1 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fuzz 29 1 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
