Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Manitou Machete Comp
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Manitou Machete Comp, 15x110mm Boost, 1.5" tapered steerer tube
Rear Shock
Manitou Radium Expert, 190x40mm
Drivetrain
Rear Derailleur
SRAM NX Eagle, long cage, 12-speed
Front Derailleur
None
Shift Levers
SRAM NX, 12-speed
Cassette
SRAM PG-1230, 12-speed, 11-50 tooth
Crank
Truvativ Descendant PS, 170mm
Bottom Bracket
SRAM Power Spline, BSA
Chain
SRAM, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Front: NS 15, Boost 15x110 disc, sealed bearings, Rear: NS Cassette, 148x12mm Boost, sealed bearings
Rear Hub
Front: NS 15, Boost 15x110 disc, sealed bearings, Rear: NS Cassette, 148x12mm Boost, sealed bearings
Rims
Octane One Solar 29", 32 hole, tubeless ready
Spokes
14mm nipples
Tires
Schwalbe Nobby Nic 29x2.25"
Brakes
Brakes
SRAM Level, 180mm rotors
Brake Levers
SRAM Level
Cockpit
Stem
Octane One Tone 35, 45mm
Handlebar
NS Bar, 780mm, 20mm rise
Grips
NS Hold Fast
Headset
GW integrated tapered IS42/IS52, sealed bearings
Seat
Saddle
Octane One Rocker2
Seatpost
X-Fusion Manic, internal, 125mm on S/M, 150mm on L
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.32 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm |
| Front Center | 729 mm | 757 mm | 786 mm |
| Rake | 51 mm | 50 mm | 50 mm |
| Trail | 104 mm | 105 mm | 105 mm |
| Stack | 608 mm | 617 mm | 626 mm |
| Reach | 424 mm | 449 mm | 474 mm |
| Top Tube Length | 577 mm | 604 mm | 632 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Chainstay Length | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1160 mm | 1188 mm | 1217 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm |
| Standover Height | 675 mm | 674 mm | 681 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

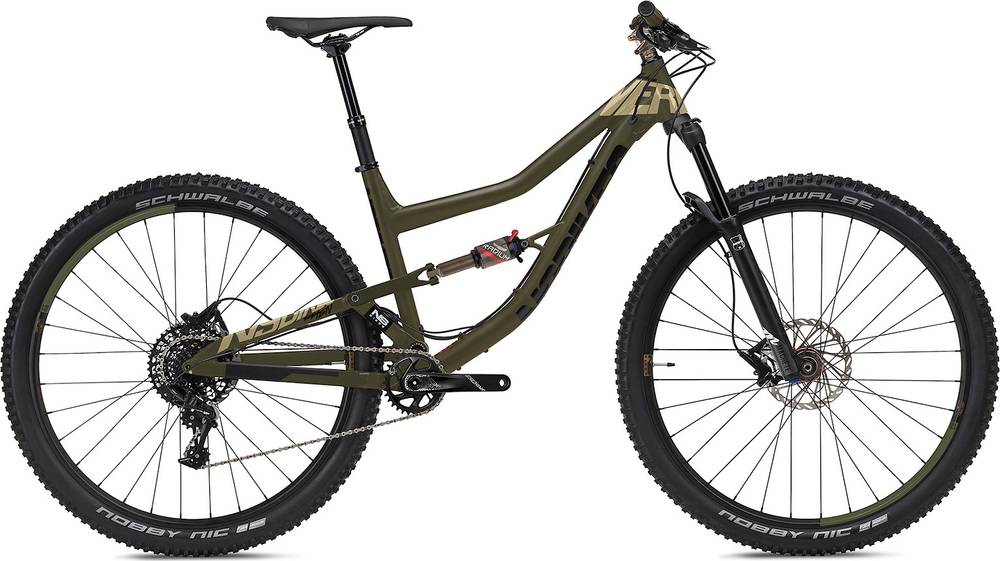

Nerd Lite 2 is part of the Ns Nerd model. NS released 10 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, Nerd Lite 2 has a weight of 14 kg (30.86 lbs). To sum up, it’s 7.86% heavier than the average weight of Trail bikes.
Overview of components
Fork
The Manitou Machete Comp is included from the factory. It has a travel distance of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Manitou Radium Expert rear shock model, which has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, NS Nerd Lite 2 2019, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nerd Lite 2 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
NS Nerd Lite 2 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
