Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Performance 36 Float FIT4, 3-position adjust with open mode adjust, tapered steerer, 15x110mm axle, 44mm offset
Rear Shock
FOX Performance Float DPX2, 3-position adjust, Trunnion mount, Evol LV, 205mm x 65mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8000 GS, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano CS-M7000, 11-46 tooth, 11-speed
Crank
Race Face Aeffect, 170mm length
Bottom Bracket
Race Face Euro BSA
Chain
Shimano, 11-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Front: NS Rotary 15 Boost disc, sealed bearing, Rear: NS Rotary Cassette, 142mm, sealed bearing
Rear Hub
Front: NS Rotary 15 Boost disc, sealed bearing, Rear: NS Rotary Cassette, 142mm, sealed bearing
Rims
NS Enigma Roll (front), NS Enigma Rock (rear)
Spokes
14g-2.0mm, 14mm nipples
Tires
Front: Schwalbe Magic Mary, folding, TL-Easy, 27.5" x 2.35", Rear: Schwalbe Nobby Nic, folding, TL-Easy, 27.5" x 2.35"
Brakes
Brakes
SRAM Guide R, Centerline rotors, 200mm front, 180mm rear
Brake Levers
SRAM Guide R
Cockpit
Stem
NS Quantum Lite, 31.8mm clamp, 45mm length
Handlebar
NS Evidence Plus, 780mm width
Grips
NS Hold Fast
Headset
GW integrated, tapered IS42/52, sealed bearings
Seat
Saddle
Octane One Rocket, hollow cromoly rails
Seatpost
Kind Shock LEV Integra, 125mm travel (S), 150mm travel (M), 170mm travel (L)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 748 mm | 778 mm | 807 mm |
| Rake | 40 mm | 41 mm | 40 mm |
| Trail | 122 mm | 121 mm | 122 mm |
| Stack | 594 mm | 603 mm | 612 mm |
| Reach | 424 mm | 449 mm | 474 mm |
| Top Tube Length | 571 mm | 599 mm | 627 mm |
| Seat Tube Angle | 75.6 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1172 mm | 1202 mm | 1231 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm |
| Standover Height | 745 mm | 744 mm | 746 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

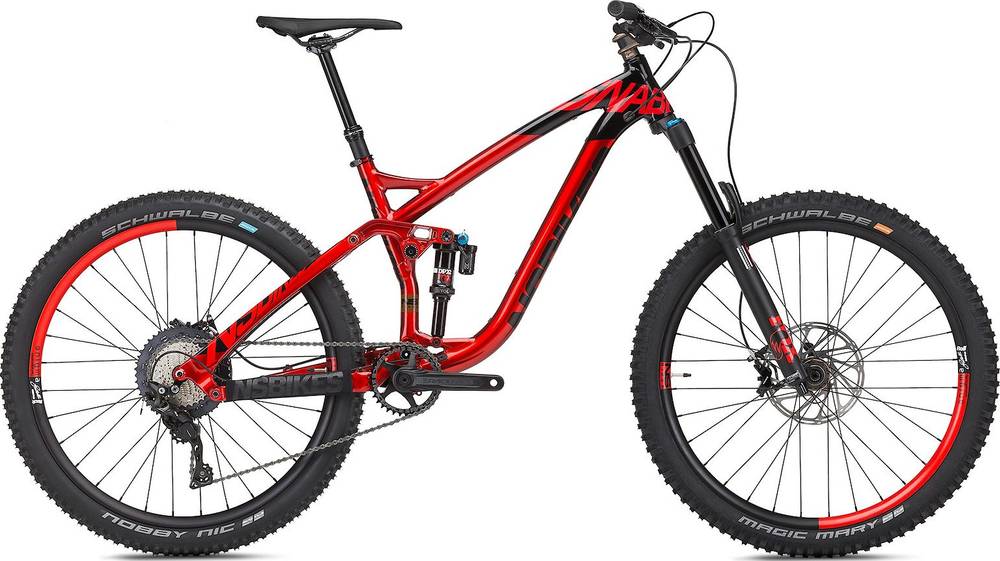

Snabb 160 1 is a Ns Snabb model. NS released 18 bikes variations of this model so far. You can easily view all of the Ns Snabb bikes models from 2018, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Enduro bikes
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 13.8 kg (30.42 lbs), the Snabb 160 1 model is slightly lighter than average. To sum up, it’s 3.41% lighter than the average weight of Enduro bikes.
Overview of components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the FOX Performance Float DPX2 rear shock model, which has a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Snabb 160 1 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Snabb 160 1 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
NS Snabb 160 1 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Snabb 160 1. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
