Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 32 FLOAT Step-Cast Factory, FIT4 damper, 2-position remote lockout with Open Mode Adjust, push-to-unlock, 44mm offset, 110x15mm Boost thru-axle
Rear Shock
FOX FLOAT DPS Factory, 2-position remote lockout, push-to-unlock, EVOL LV, trunnion mount, 165mm x 37.5mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed, Type 3
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM XG-1295, 12-speed, 10-50 tooth
Crank
Truvativ X1 Carbon DUB, 170mm length (175mm on XL)
Bottom Bracket
SRAM DUB PressFit BB92
Chain
SRAM, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
NS Rotary Straight Pull, sealed bearings, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
NS Rotary Straight Pull, sealed bearings, 110x15mm Boost front, 148x12mm Boost rear
Rims
NS Enigma Lite, 32 hole, tubeless ready
Spokes
Straight pull
Tires
Front: Maxxis Ikon, TR, 29" x 2.2", Rear: Maxxis Recon Race, EXO, TR, 29" x 2.25"
Brakes
Brakes
SRAM Level TLM, 180mm front rotor, 160mm rear rotor
Brake Levers
SRAM Level TLM
Cockpit
Stem
NS Synonym Race, 31.8mm clamp, -8° rise, Length: 60mm (SM), 70mm (MD), 80mm (LG/XL)
Handlebar
NS Licence Carbon Flat Lite, 31.8mm bore, 750mm width
Grips
NS Silicone Lite
Headset
FSA No.42/47/ACB
Seat
Saddle
fi'zi:k Antares R3
Seatpost
KS LEV Ci Carbon dropper, 100mm drop (125mm on XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.25 mm | 1.22 mm | 1.2 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm |
| Stack | 576 mm | 585 mm | 599 mm | 617 mm |
| Reach | 438 mm | 468 mm | 493 mm | 513 mm |
| Top Tube Length | 572 mm | 605 mm | 633 mm | 657 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1152 mm | 1186 mm | 1216 mm | 1244 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 735 mm | 734 mm | 735 mm | 736 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

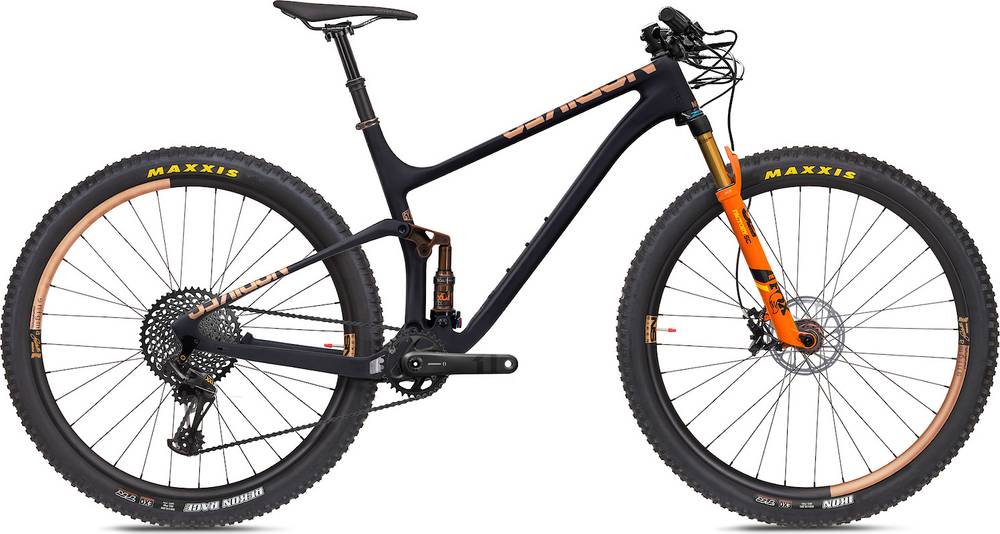

Synonym RC 1 is part of the Ns Synonym model. 12 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
NS Synonym RC 1 it’s weighing 10.5 kg (23.15 lbs). At this weight, is much lighter than average. In short, the average Crosscountry bike weight is 18.1% higher than this one.
Synonym RC 1 components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Synonym RC 1 has a rear shock with a travel of 100mm. The model FOX FLOAT DPS Factory is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Synonym RC 1 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Synonym RC 1 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
NS Synonym RC 1 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The NS model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
