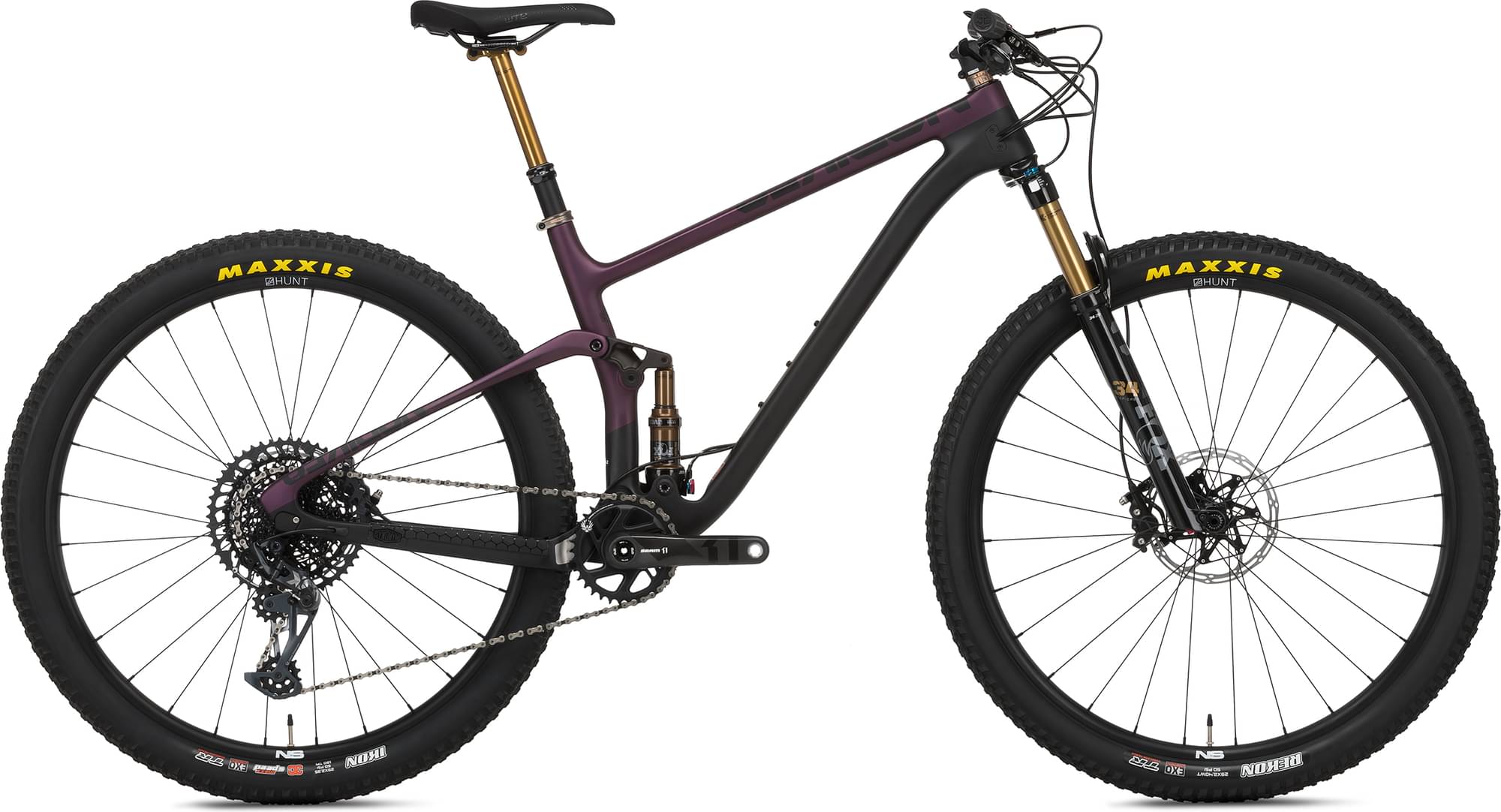

NS Synonym TR1 2022
2022 Mountain
Estimate price |
8,375$
Weight | 11.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset GX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NS Synonym, superlite carbon fibre w/ 120mm travel
Suspension Fork
Fox Factory 34 Step Cast Float FIT4, 120mm travel, 2pos remote lockout w/ Open Mode Adj, push-to-unlock, 15x110mm Boost, 1.5 tapered steerer tube, 44mm offset
Rear Shock
Fox Factory Float DPS 2pos remote lockout, push-to-unlock, Evol LV Trunnion 165x42.5
Drivetrain
Shift Levers
SRAM GX Eagle, 12spd
Cassette
SRAM XG-1275, 10-50t 12 speed
Crank
SRAM X1 Carbon DUB 170mm 34t (XL size 175mm)
Bottom Bracket
SRAM DUB Press Fit BB92
Chain
SRAM GX Eagle, 12 spd
Chain Guide
/
Pedals
/
Wheels
Front Hub
NSBikesxHunt straight pull 110x15mm Boost (sealed bearings)
Rear Hub
NSBikesxHunt straight pull 148x12mm Boost (sealed bearings)
Rims
NS Bikes x Hunt 30 29", 32h, tubeless ready
Spokes
Straight Pull Spokes
Tires
Maxxis Recon 2.4WT EXO/TR / Maxxis Ikon 2.35 EXO/TR
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Synonym Trail 31.8 (S: 50, M, L & XL: 60mm), angle +5°
Handlebar
NS Licence Carbon Mini Rise Lite 31.8, 760mm, 15mm rise
Grips
NS Hold Fast supersoft
Headset
FSA NO.42/47/ACB
Seat
Saddle
WTB Volt Medium Cromoly
Seatpost
Fox Transfer Factory S: 120mm, M, L, XL: 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.29 mm | 1.25 mm | 1.24 mm |
| Bottom Bracket Height | 326 mm | 326 mm | 326 mm | 326 mm |
| Front Center | 732 mm | 766 mm | 796 mm | 824 mm |
| Rake | 14 mm | 14 mm | 13 mm | 13 mm |
| Trail | 151 mm | 151 mm | 153 mm | 153 mm |
| Stack | 583 mm | 592 mm | 607 mm | 625 mm |
| Reach | 429 mm | 459 mm | 484 mm | 504 mm |
| Top Tube Length | 575 mm | 608 mm | 637 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1160 mm | 1194 mm | 1225 mm | 1253 mm |
| Bottom Bracket Drop | -38 mm | -38 mm | -38 mm | -38 mm |
| Standover Height | 747 mm | 746 mm | 746 mm | 747 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Synonym TR1 is part of the Ns Synonym model. NS released 12 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the NS Synonym TR2 2022 has a starting price of 5733$. NS Synonym RC 1 2022 on the other hand is the most expensive at 8069$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When NS released this model in 2022, its price was 7644$. Comparing this to the average Trail bike price, we see that the price is 176.76% more expensive.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit lighter than average, Synonym TR1 has a weight of 11.9 kg (26.23 lbs). To sum up, it’s 9.08% lighter than the average weight of Trail bikes.
Overview of components
Fork
NS Synonym TR1 2022 bike is equipped with the Fox Factory Float 34 fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Synonym TR1 has a rear shock with a travel of 120mm. The model Fox Factory Float DPS 2pos remote lockout is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, NS Synonym TR1 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
NS Synonym TR1 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
