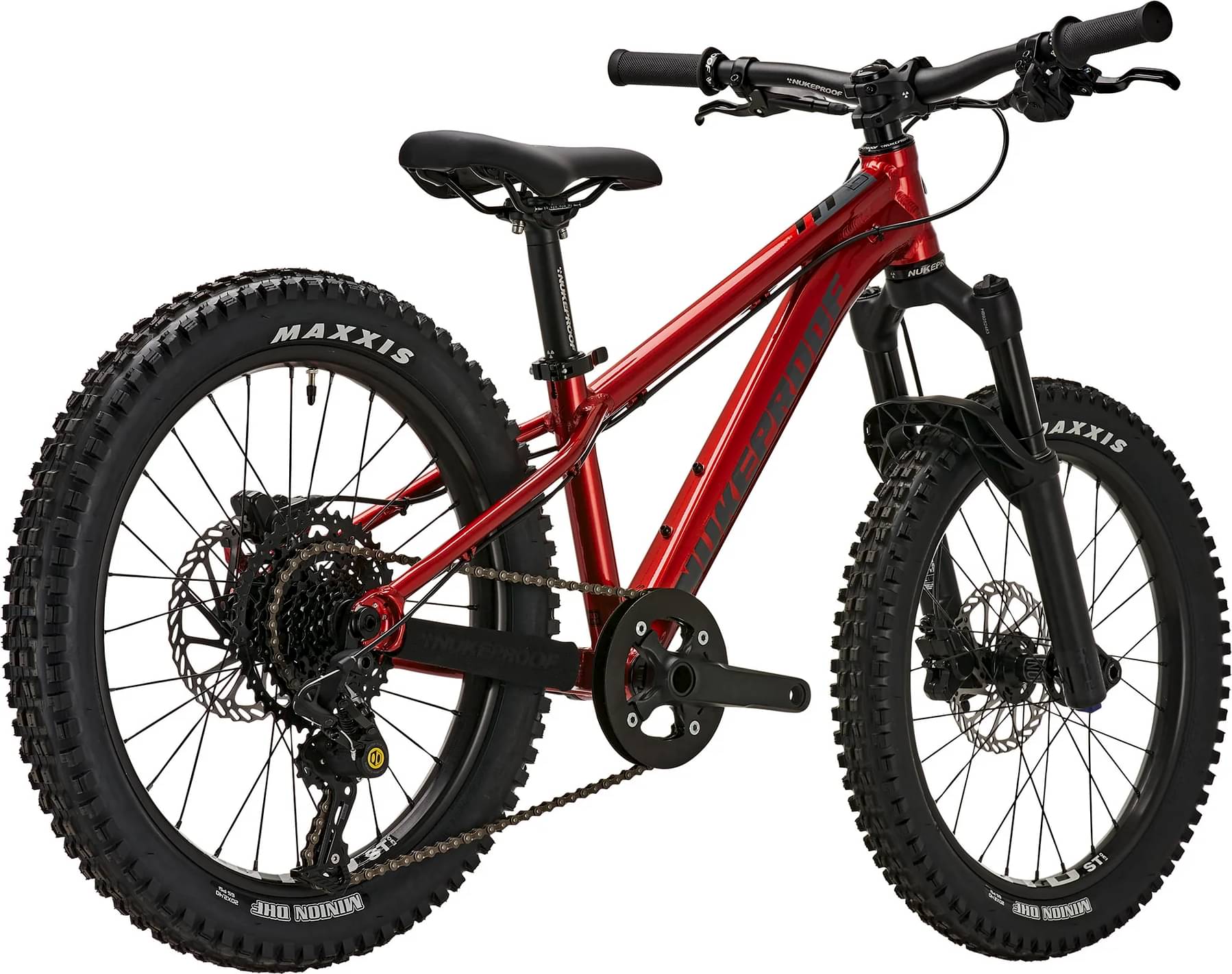

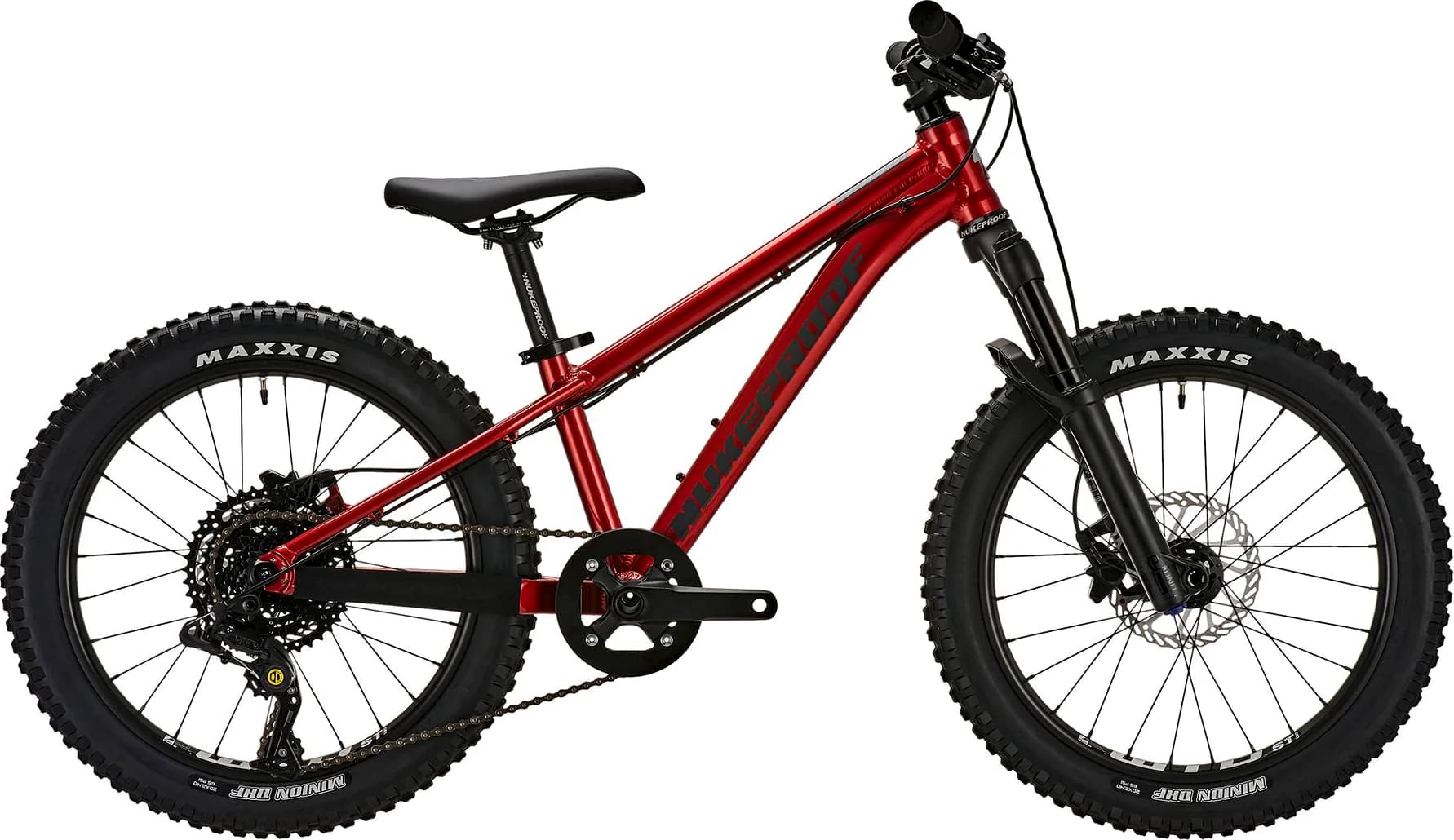

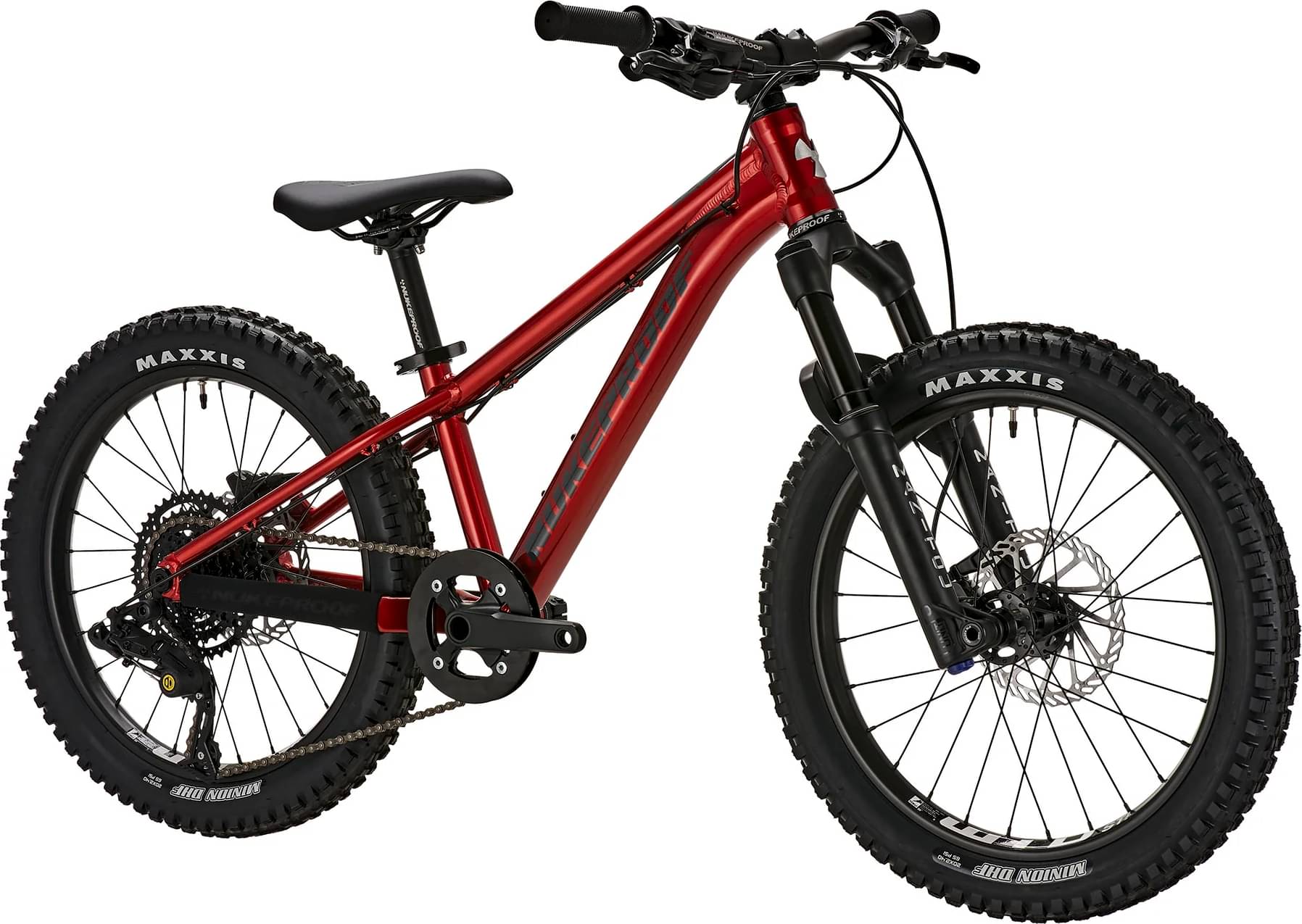

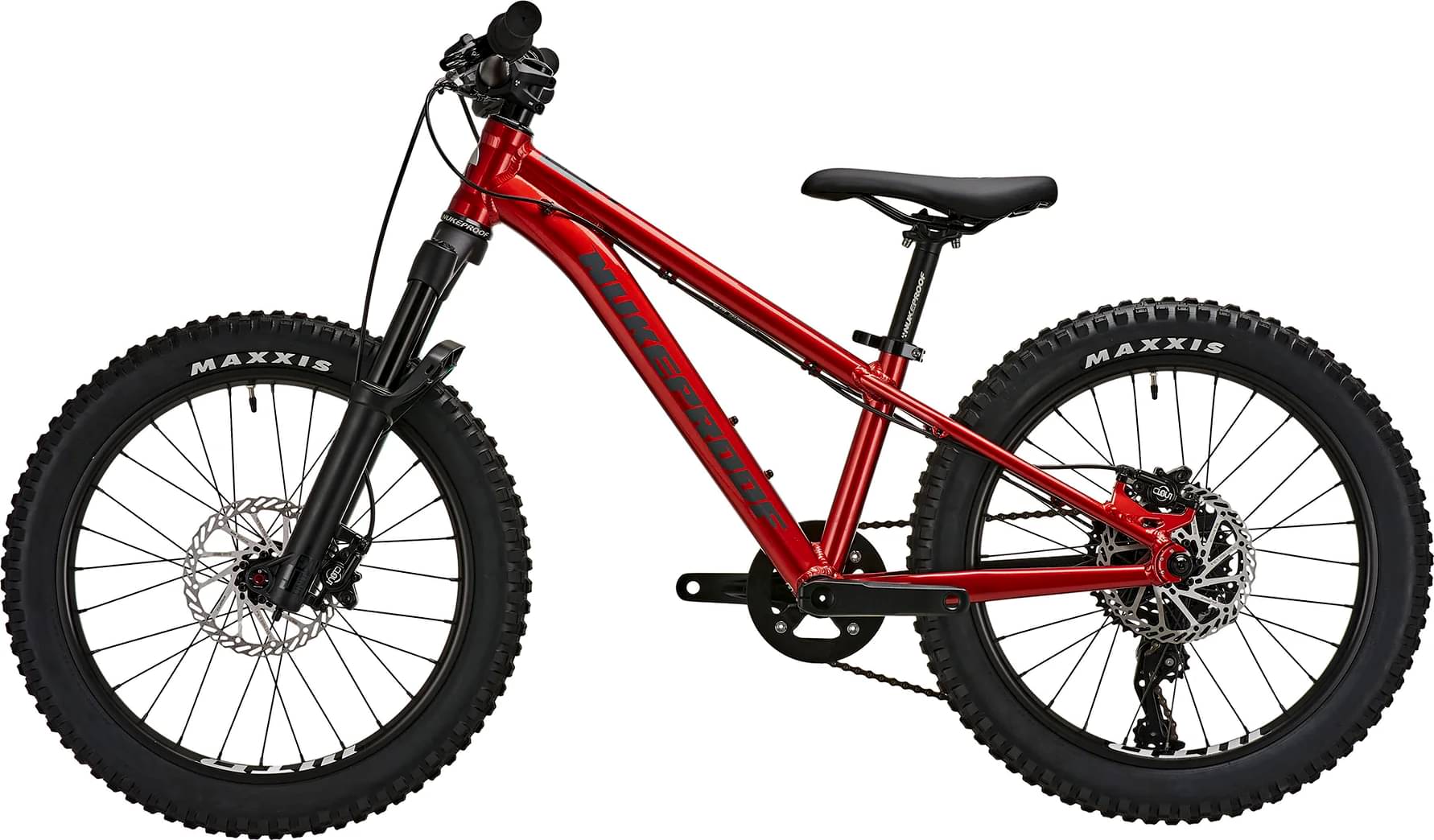

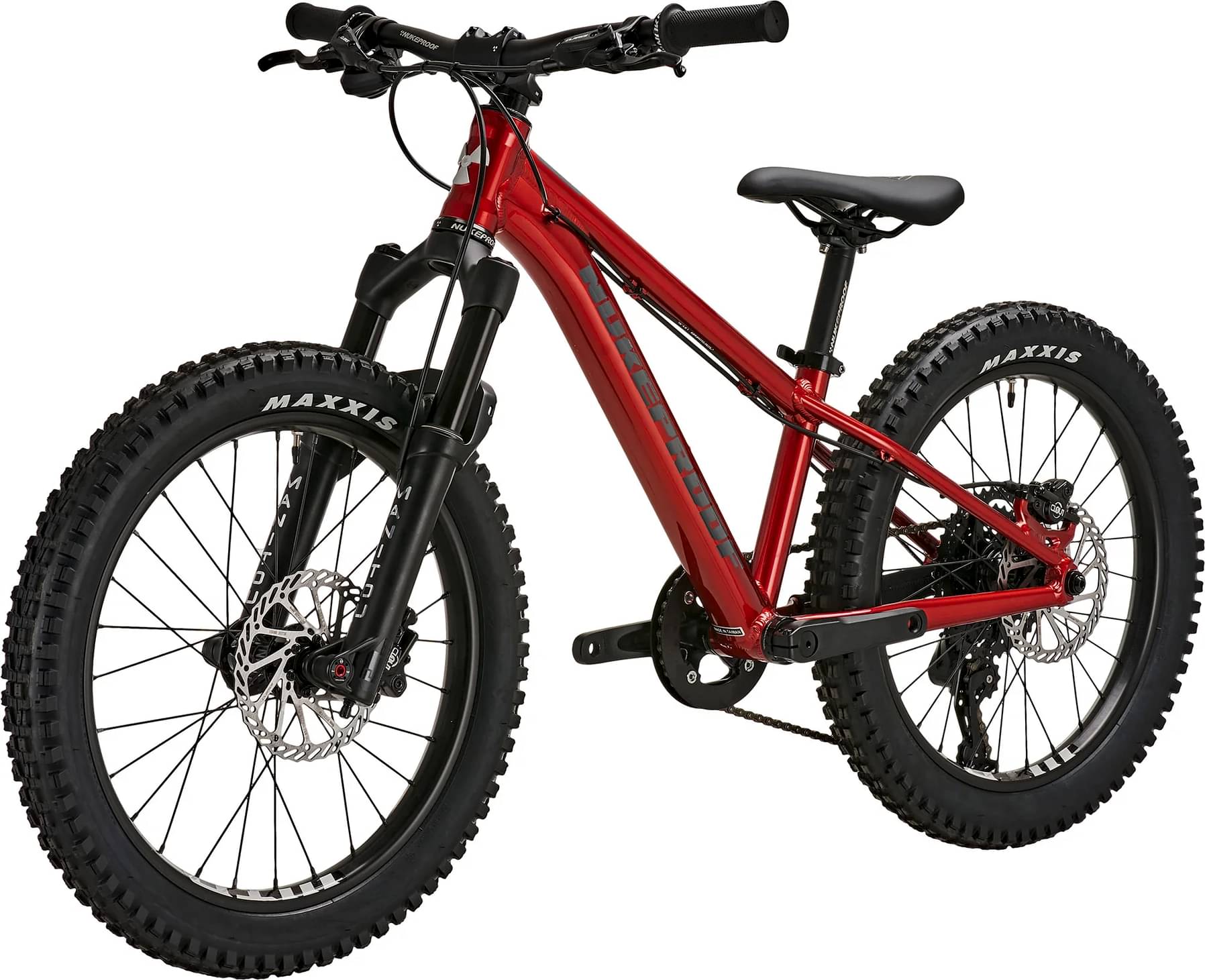

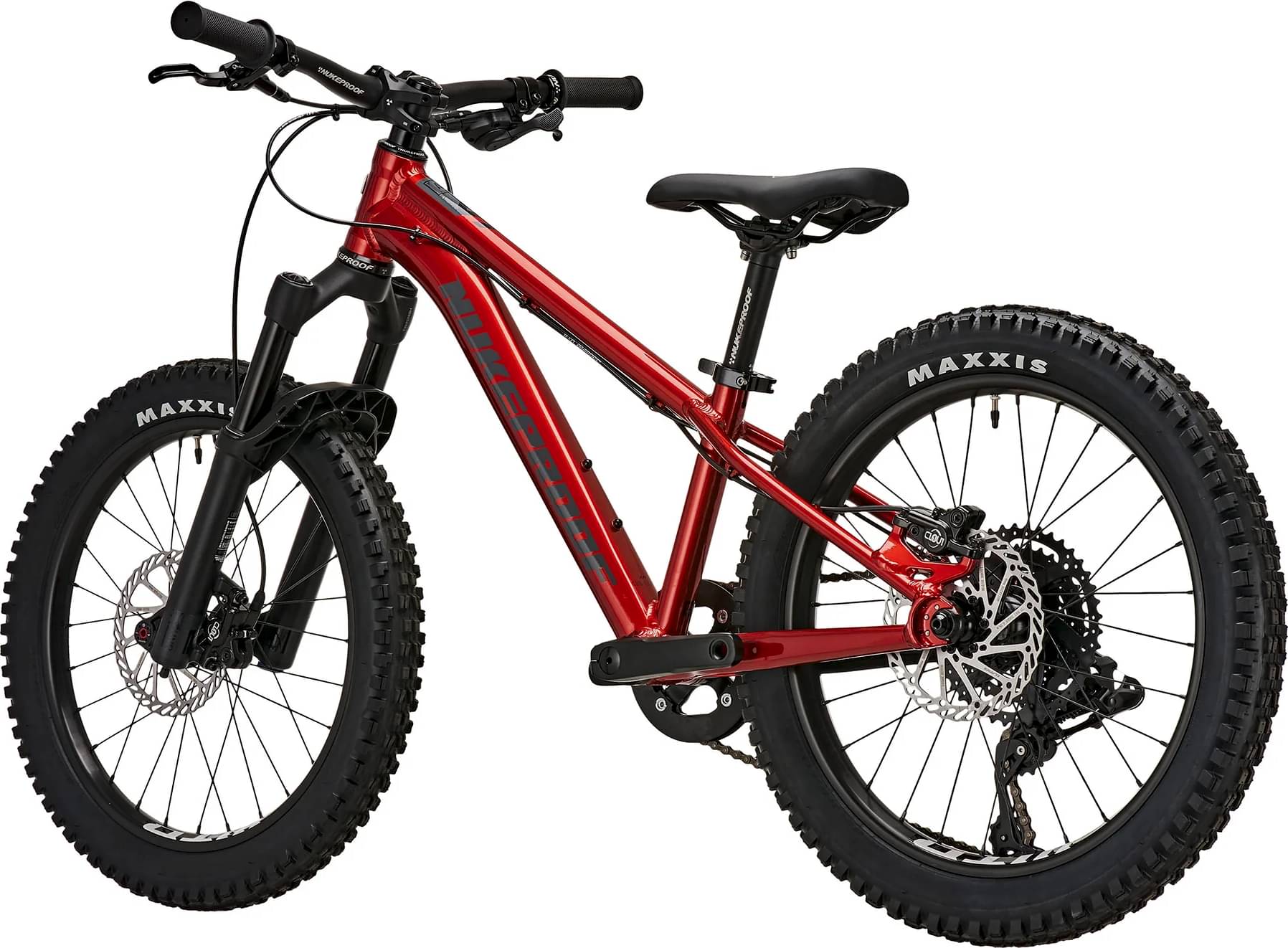

Nukeproof Cub Scout 20 Race 2023
2023 Youth
Estimate price |
1,299$
Weight | 10.92 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 100mm -
Fork Manitou Machete JUNIT Expert
-
Groupset Box Four -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

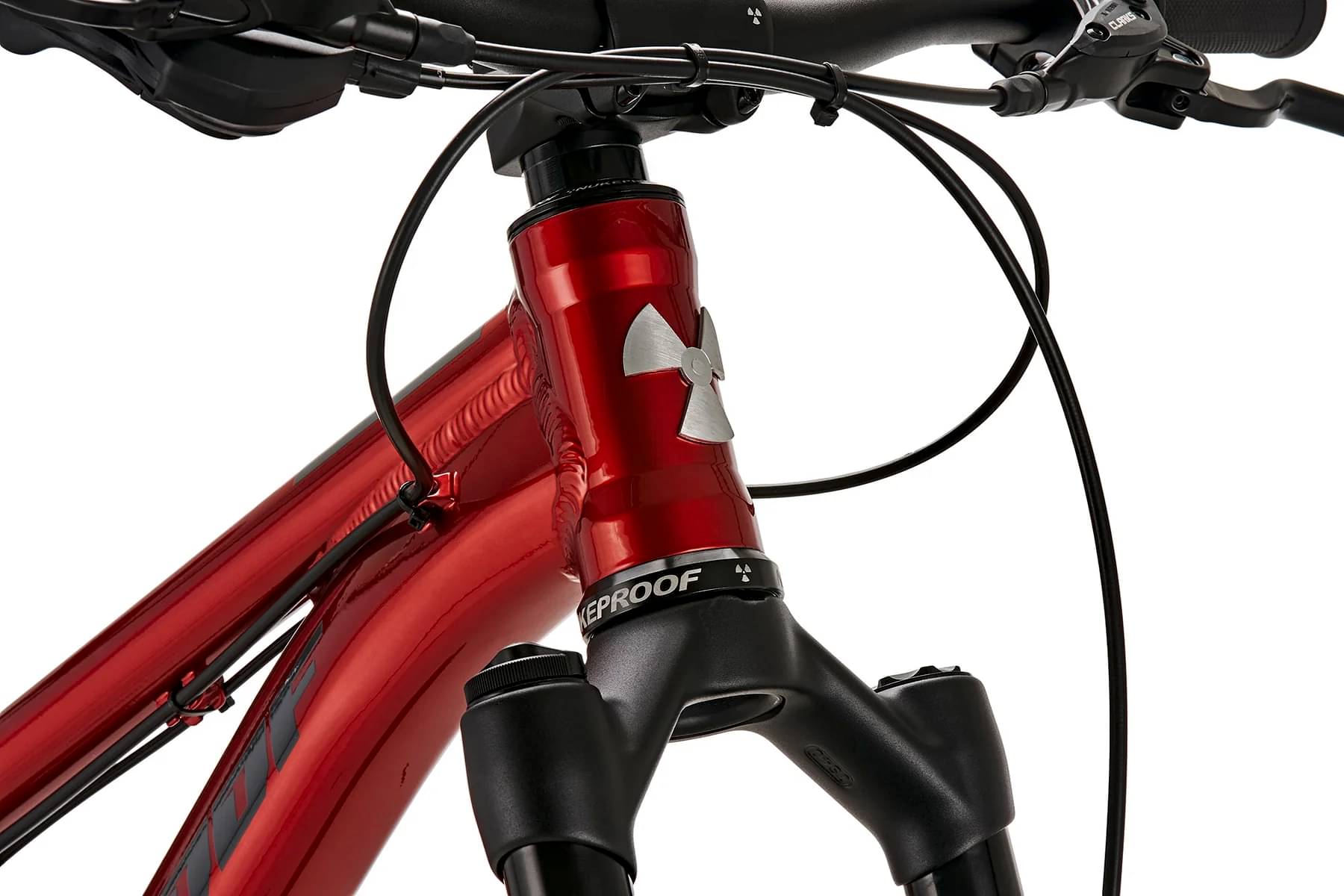

Frame
Frame
Nukeproof Cub-Scout 20”, custom butted hydro-formed 6061 Alloy, threaded bottom bracket, 142mm Bolt-thru rear axle spacing

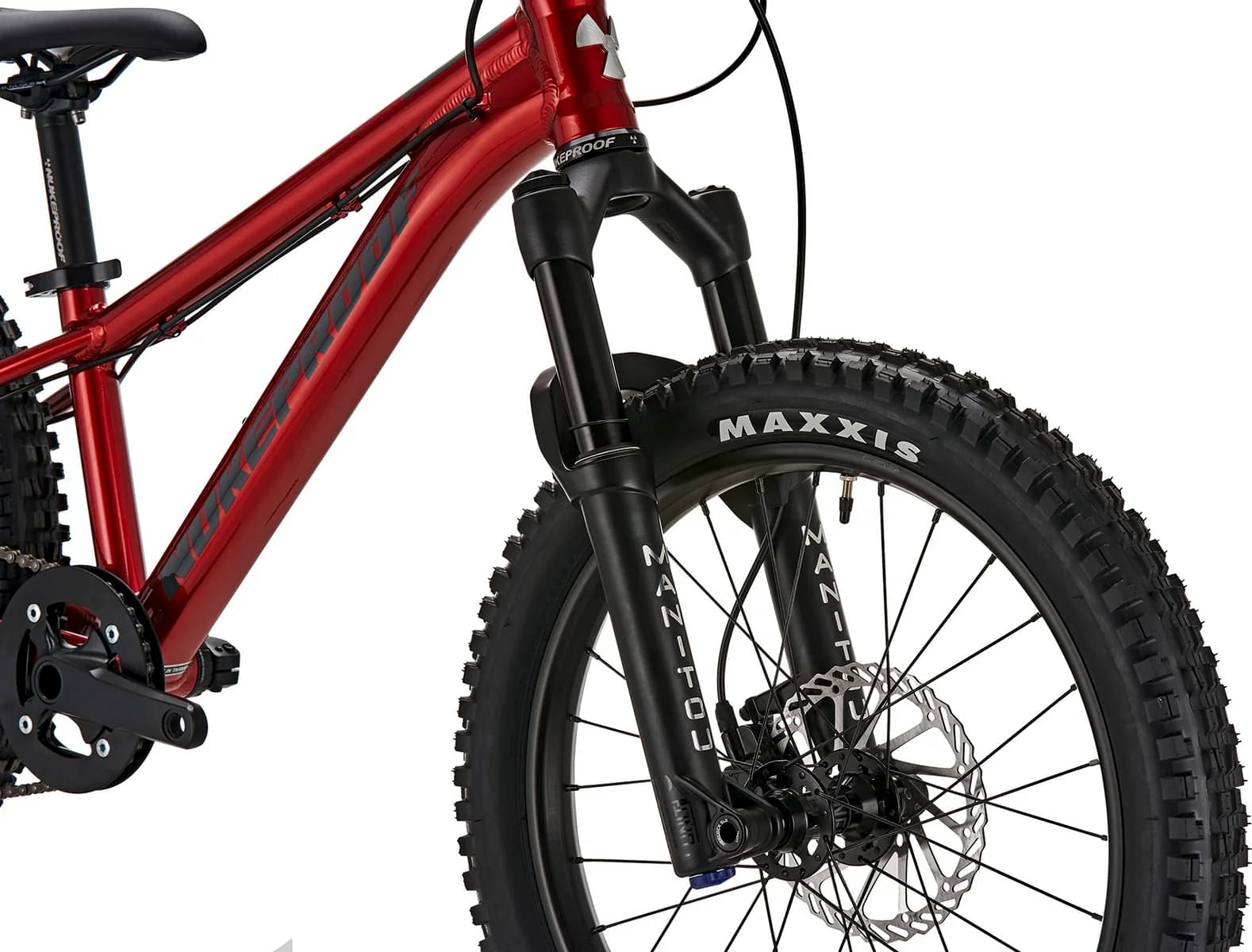

Suspension Fork
Manitou Machete JUNIT 20” Expert Air, 80mm Travel, 1.5 Tapered Steerer, 40mm Offset, BOOST 15x110mm Bolt-thru Axle
Rear Shock
NA

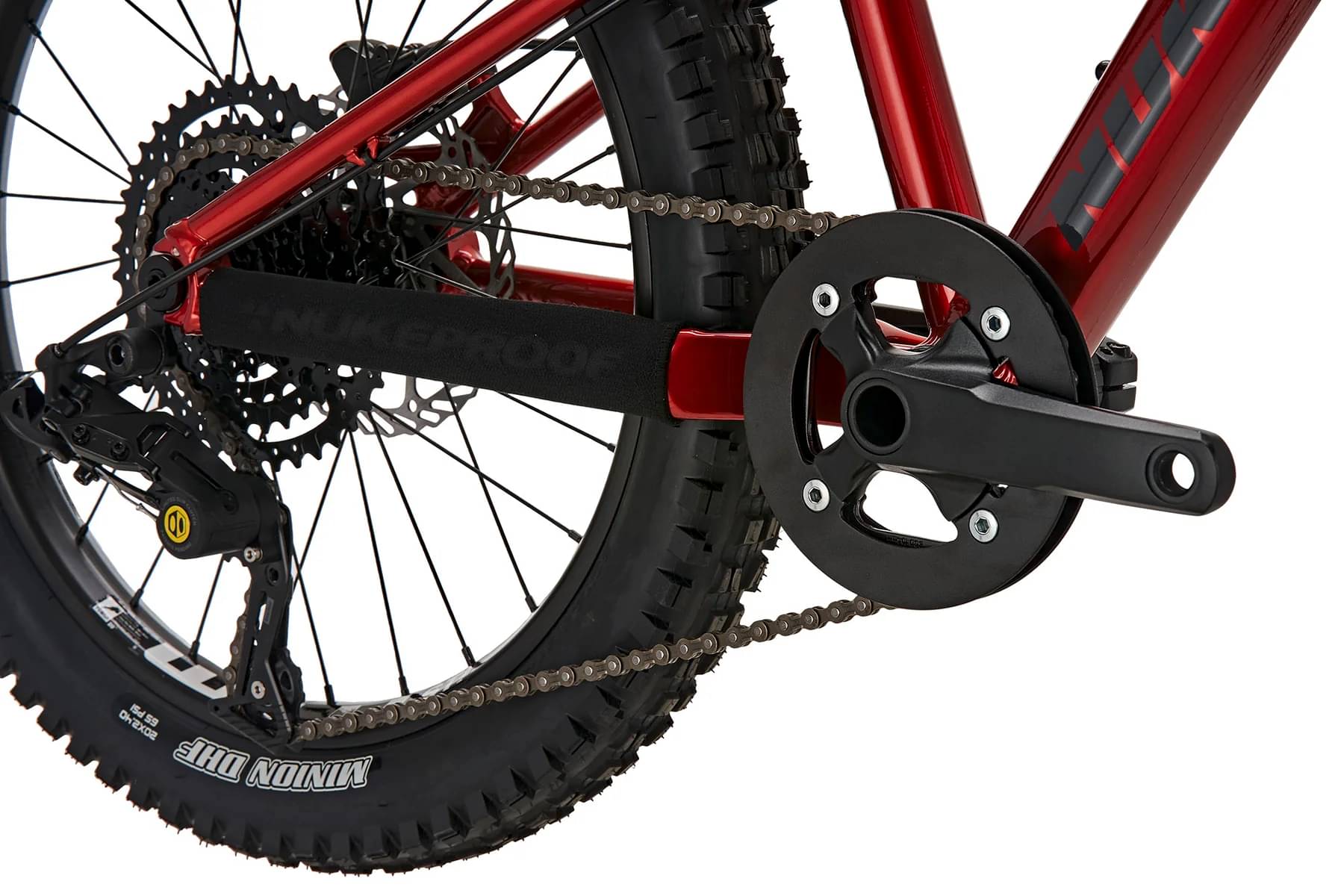

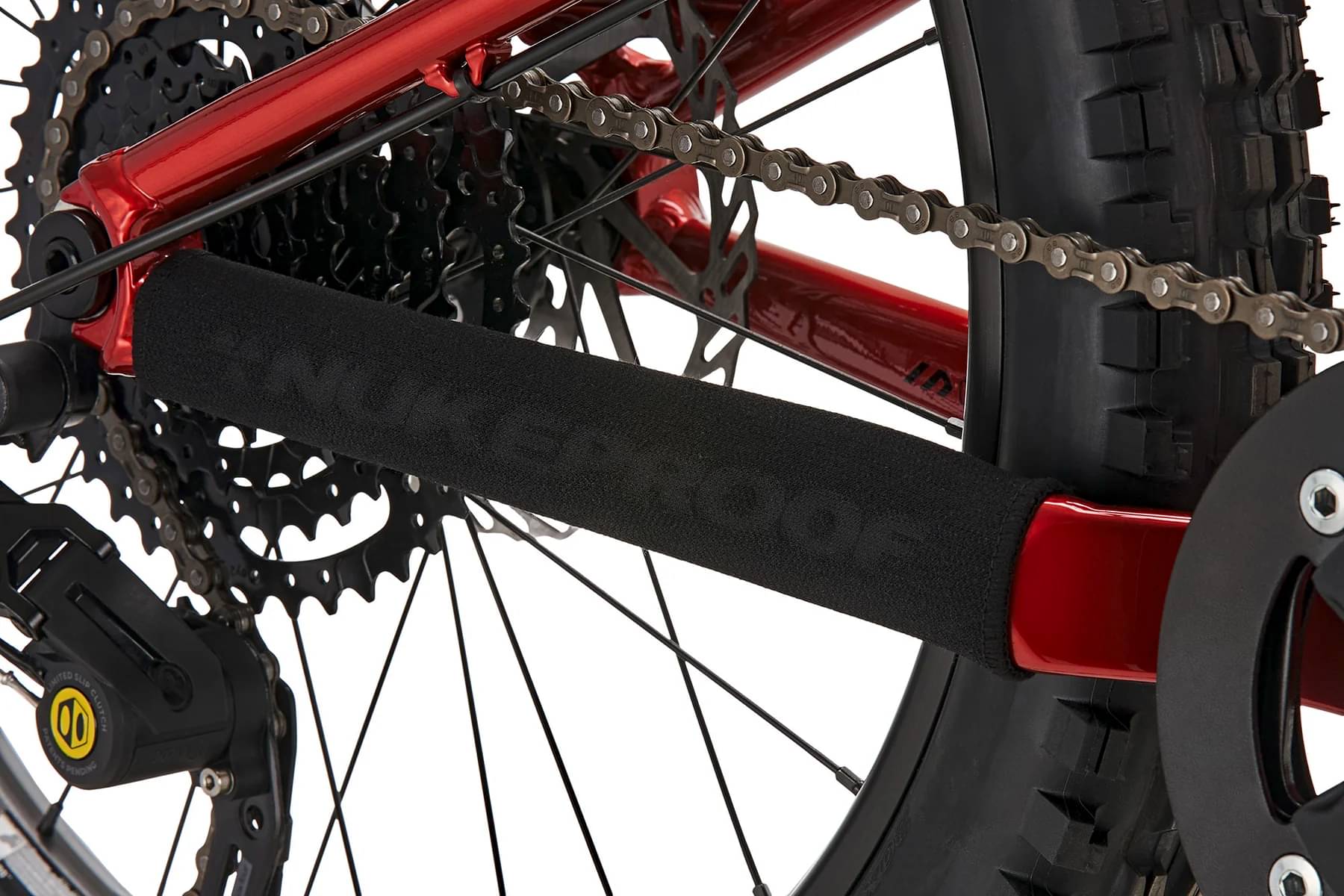

Drivetrain
Rear Derailleur
BOX FOUR Short Cage 8-Speed with Clutch
Shift Levers
BOX FOUR 8-Speed
Cassette
Sunrace CSM680 8-Speed, 11-42T

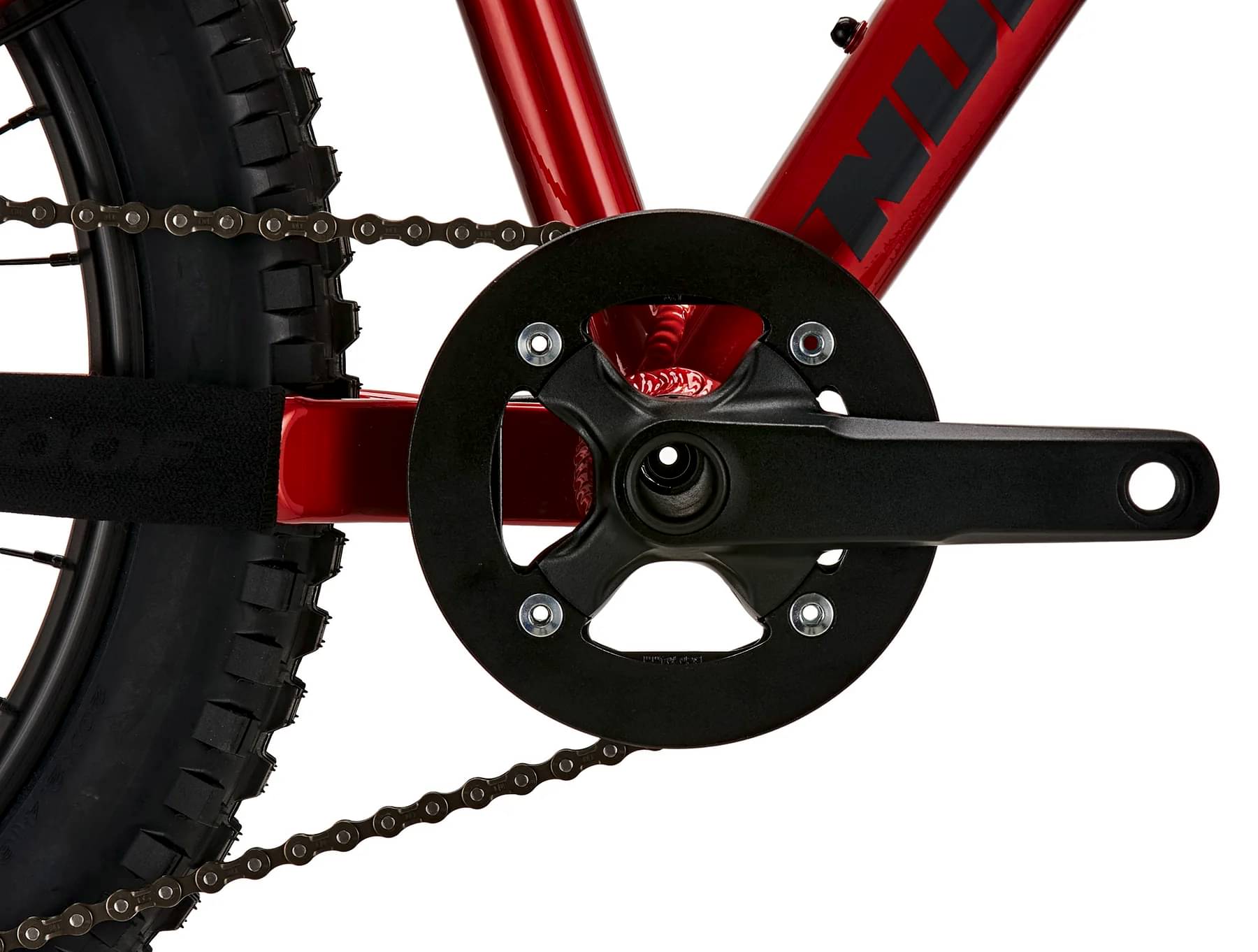

Crank
Samox TAF38J 2 Piece Crank 127mm, 32T, BCD 104
Bottom Bracket
BSA, threaded
Chain
BOX FOUR 8-Speed
Chain Guide
N/A
Wheels
Rims
Front: Nukeproof Neutron 15x110mm hub on WTB STi30 20" TCS Rim, Rear: Nukeproof Neutron 12x142mm hub on WTB STi30 20" TCS Rim
Tires
Front & Rear: Maxxis Minion DHF 20" x 2.4”
Brakes
Brakes
Clarkes Kids Specific Hydraulic Brakes

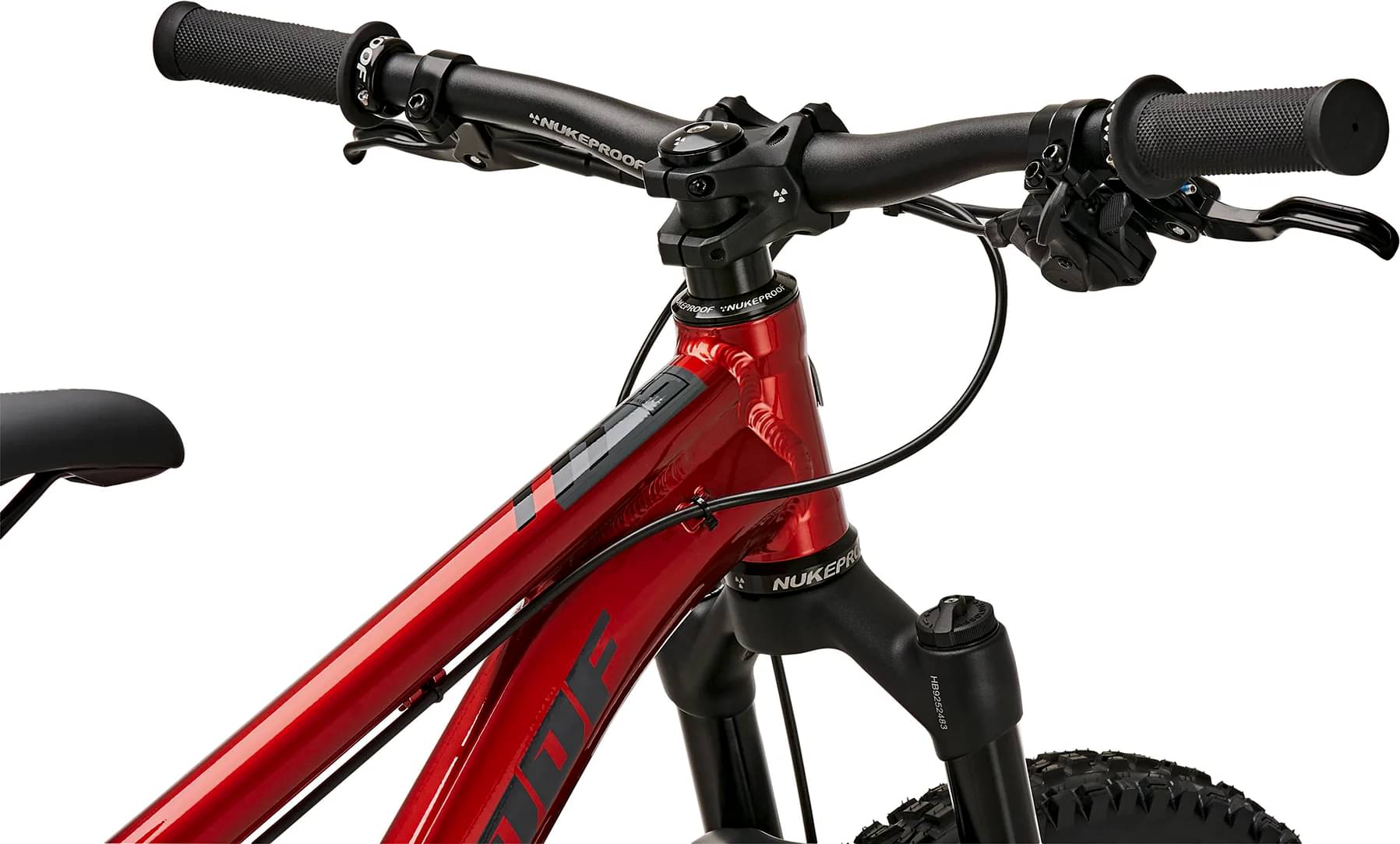

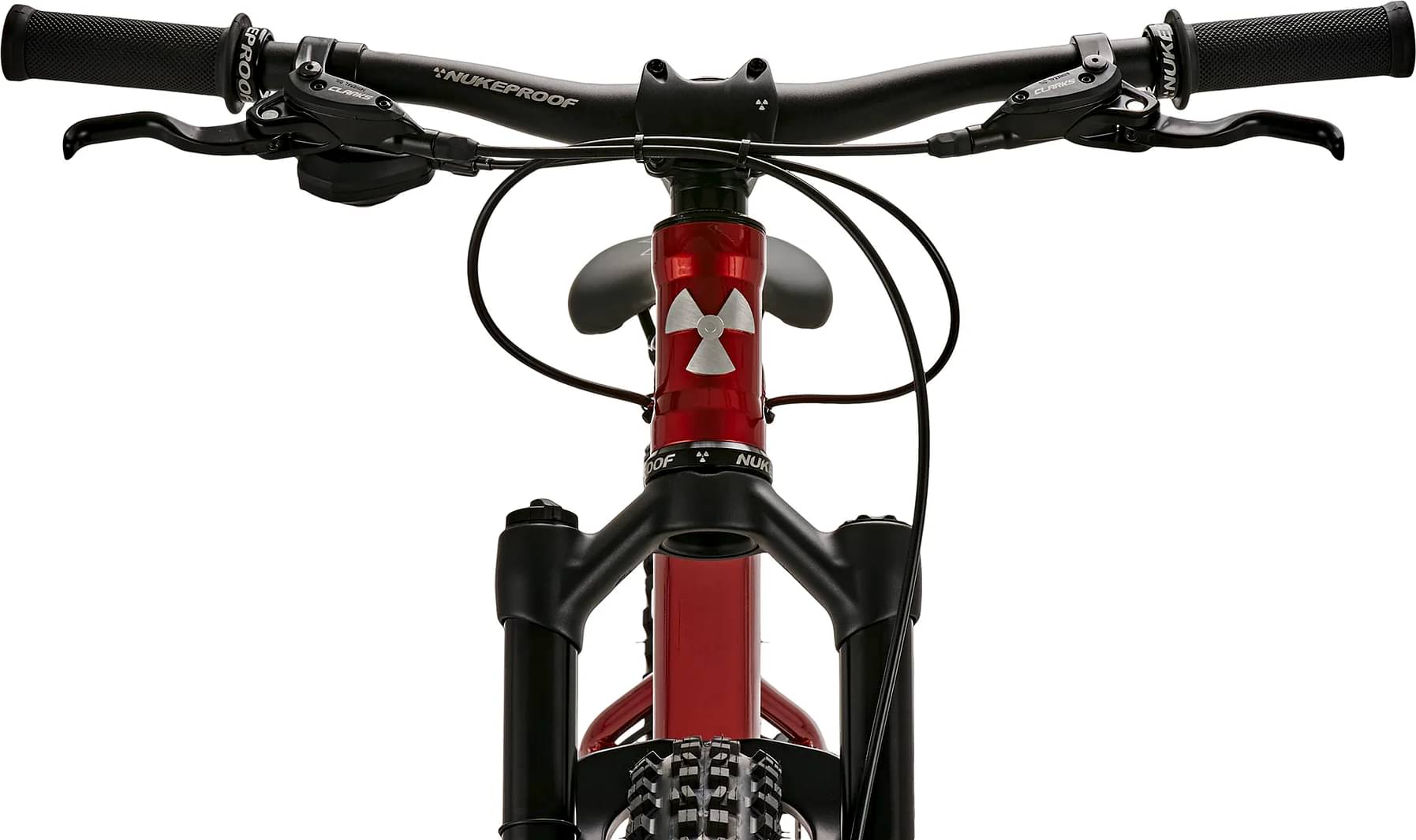

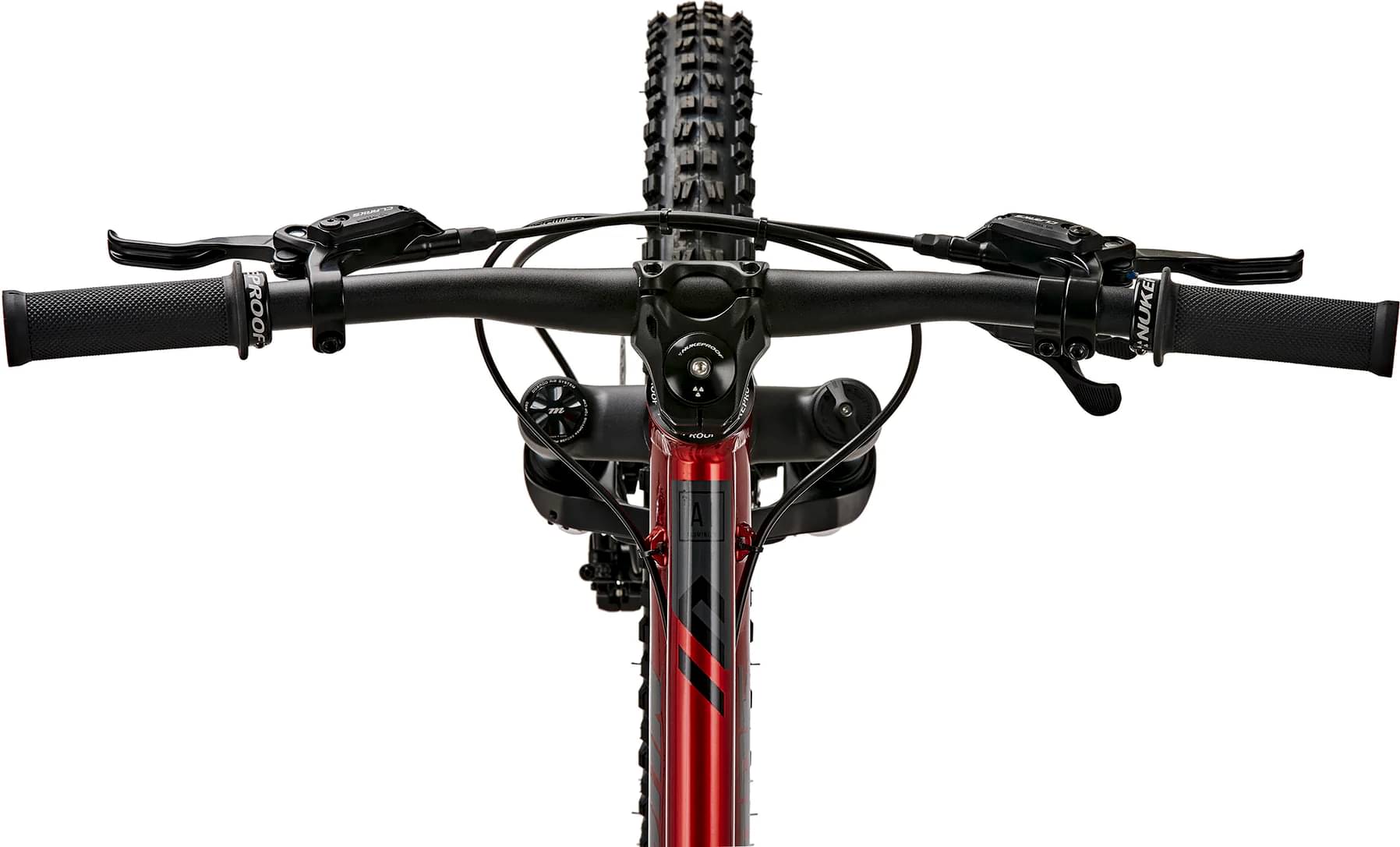

Cockpit
Stem
Nukeproof Neutron AM, 35mm, black
Handlebar
Nukeproof Urchin 600mm Wide, 15mm Rise, 31.8mm Clamp
Grips
Nukeproof Urchin Single Clamp lock on, 115mm Long, Soft Compound
Headset
Nukeproof Warhead, 44-44 IETS

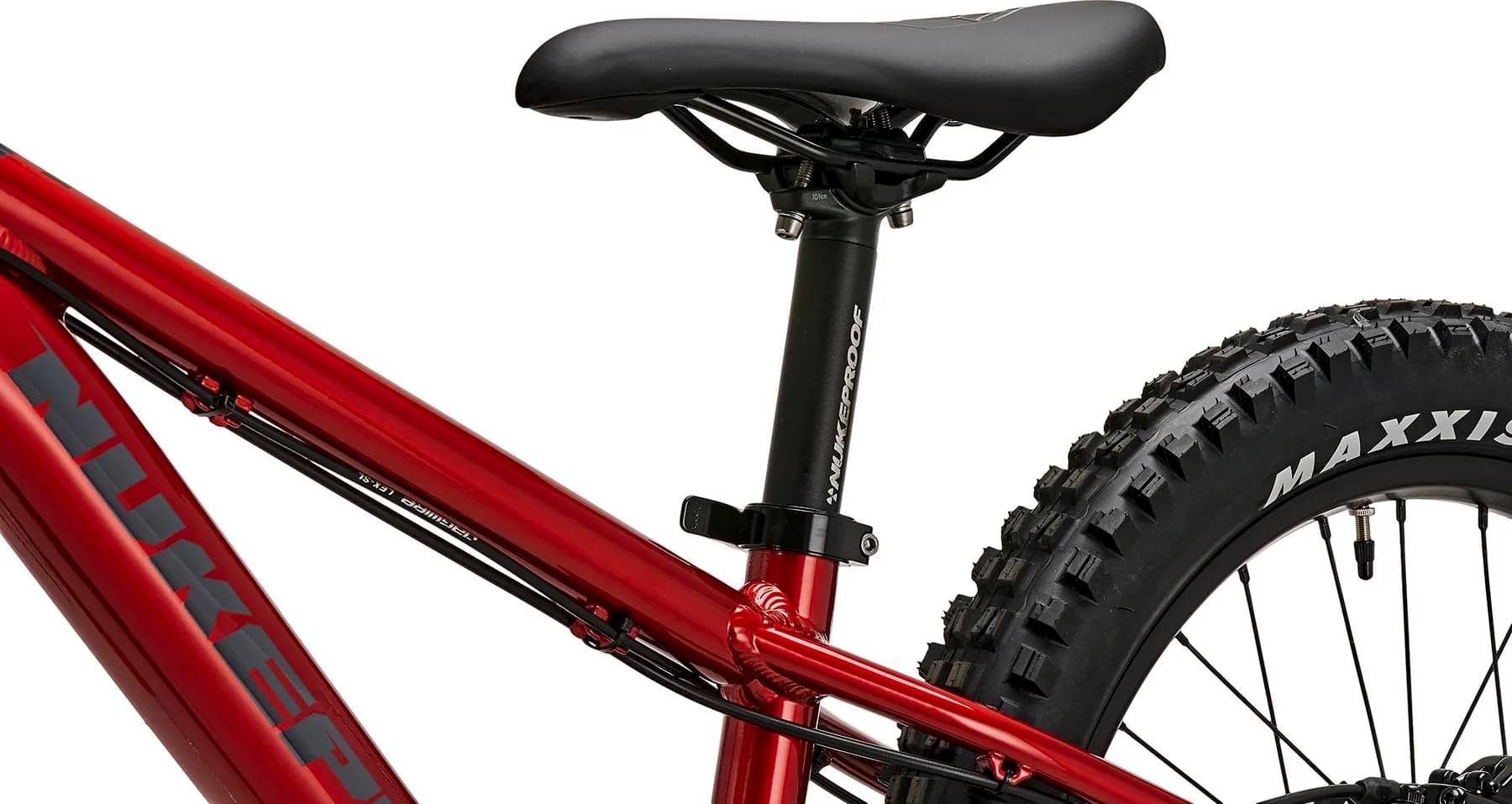

Seat
Saddle
Nukeproof Urchin, Black
Seatpost
Nukeproof Urchin, Black, 27.2mm, 300mm Long, 0 Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" | 24" | 26" |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.63 mm | 1.62 mm |
| Bottom Bracket Height | 240 mm | 280.5 mm | 296.5 mm |
| Front Center | 541 mm | 592 mm | 661 mm |
| Rake | 38 mm | 38 mm | 46 mm |
| Trail | 78.14 mm | 74.63 mm | 77.43 mm |
| Stack | 468.5 mm | 543 mm | 593 mm |
| Reach | 312 mm | 334 mm | 367 mm |
| Top Tube Length | 460 mm | 504.5 mm | 551 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.75 ° |
| Seat Tube Length | 265 mm | 320 mm | 360 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm |
| Chainstay Length | 356 mm | 406 mm | 421 mm |
| Wheelbase | 895 mm | 994 mm | 1077 mm |
| Bottom Bracket Drop | 35 mm | 45 mm | 47 mm |
| Standover Height | 519 mm | 617 mm | 656 mm |
| Front Travel | 80 mm | 100 mm | 120 mm |
| Wheels | 20" | 20" | 20" |
Model Overview
Cub Scout 20 Race is part of the Nukeproof Cub model. 34 bikes variations carry this model name so far. Take a sneak peek at all Nukeproof Cub bikes models from 2023, by clicking here.
Model range prices
Nukeproof Cub Scout 20 Sport 2023 is the most affordable bike of this model and has a price of 899$. On the other hand, Nukeproof Cub Scout 20 Race 2023, is the most expensive and costs 1299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Mountain bikes
If you want to purchase a solid Mountain bike, it is important to know that the average cost is 616$. However, even if your budget is less than the average, you might still be able to get a top-quality Mountain bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 1299$. Comparing the average cost of a Mountain bike to this one, you will see that Cub Scout 20 Race price is 110.88% more expensive.
Average weight for Mountain bikes
If we make a quick analysis of the average weight of a Mountain bike, we get 11.16 kg (24.6 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 10.92 kg (24.07 lbs), Nukeproof bike is slightly lighter than average. In other words, this model is 2.2% lighter than the average Mountain bike.
Cub Scout 20 Race components
Fork
Nukeproof Cub Scout 20 Race 2023 bike is equipped with the Manitou Machete JUNIT Expert fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Cub Scout 20 Race bike is equipped with the 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.

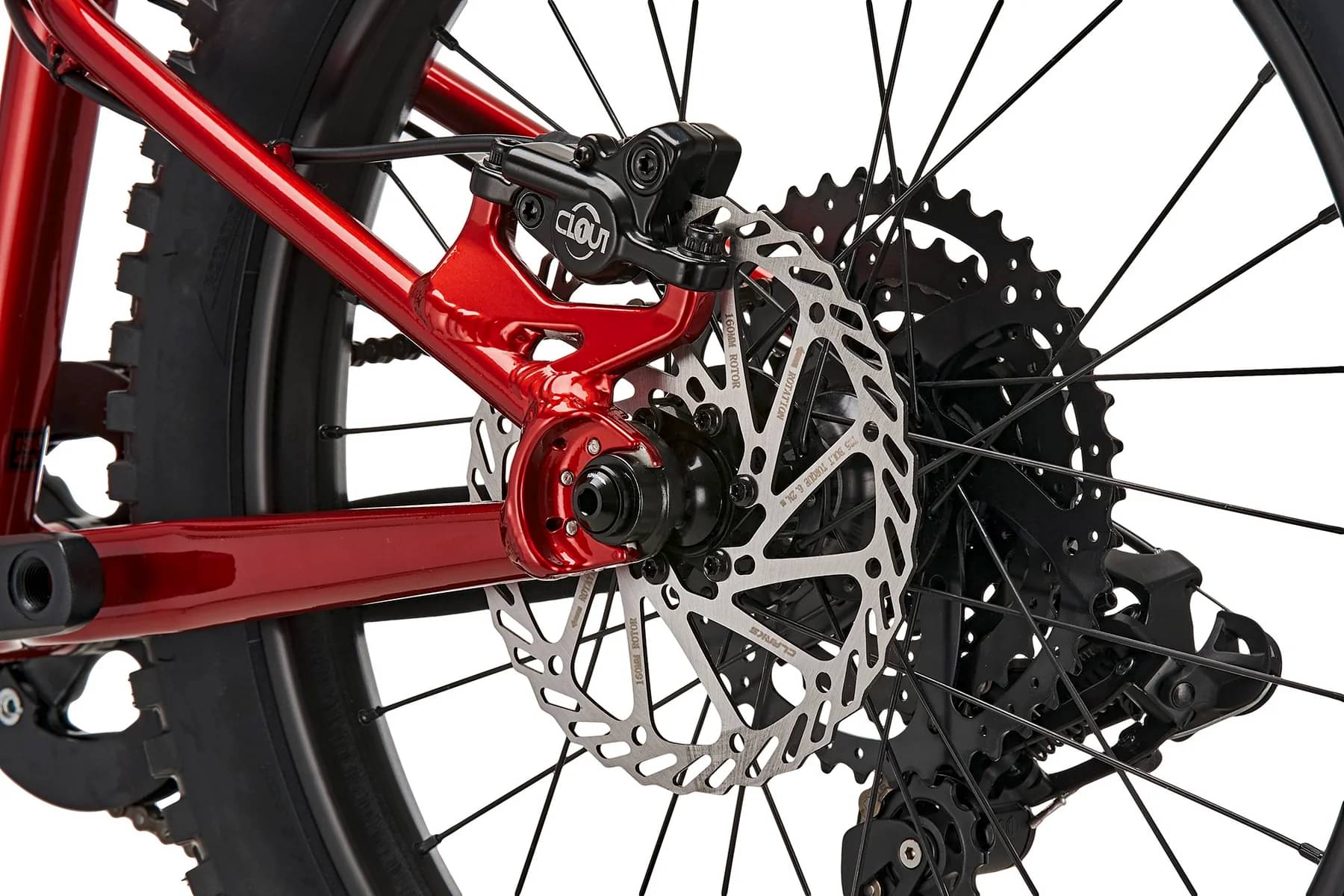

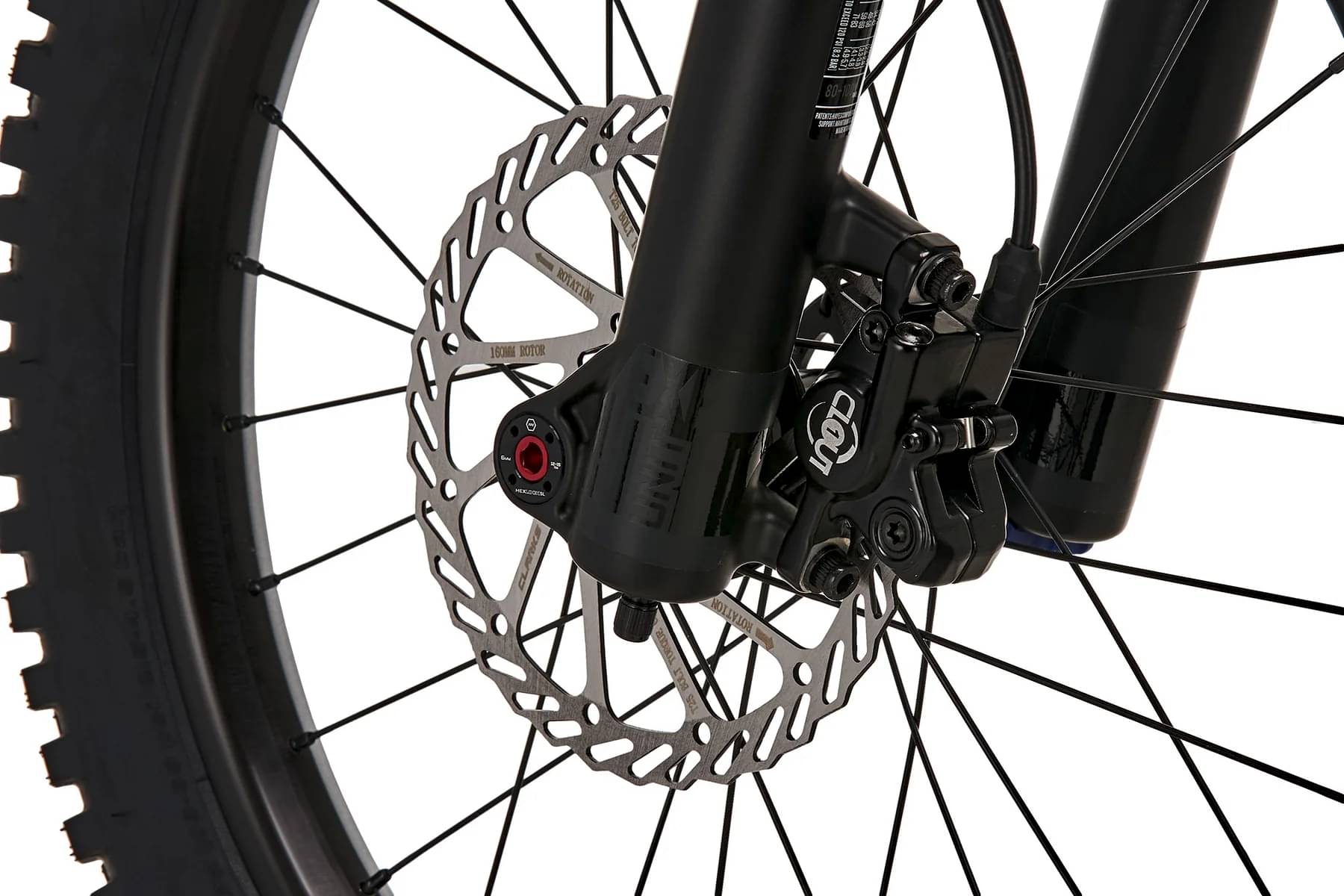

Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
