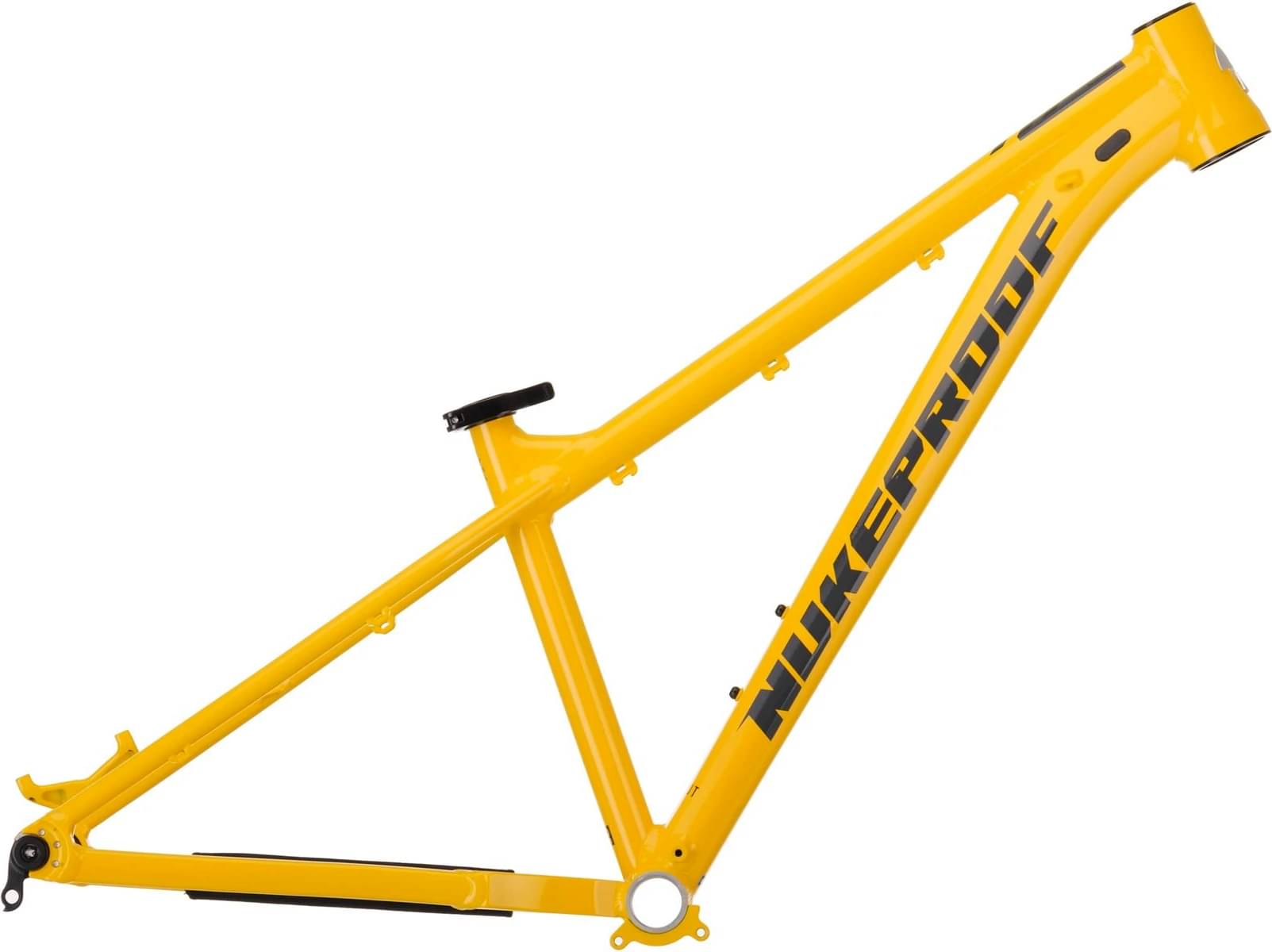

Nukeproof Cub Scout 26 Frame Only 2021
2021 Youth
Estimate price |
534$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame aluminium -
Wheels 26" -
Travel Front 100mm -
Fork Manitou Markhor
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Cub-Scout 26”, custom butted hydro-formed 6061 Alloy, internal cable routing for dropper seat post, threaded bottom bracket, 142mm Bolt-thru rear axle spacing
Suspension Fork
Manitou Markhor 27.5” TS Air, 120mm Travel, Custom Kids tune, 1.5 Tapered Steerer, 51mm Offset, BOOST 15x110mm Bolt-thru Axle
Rear Shock
NA
Drivetrain
Rear Derailleur
Shimano M5120 Deore, Shadow Plus, 10-Speed
Shift Levers
Shimano M4100 Deore Rapidfire 10-Speed
Cassette
Sunrace CSMS2 10-Speed, 11-46T
Crank
Samox TAF38J 2 Piece Crank 160mm, 32T, BCD 104
Bottom Bracket
BSA, threaded
Chain
KMC X10-1 10-Speed, with Quick Link
Wheels
Tires
Front & Rear: Maxxis Minion DHF 26" x 2.5” EXO TR (Tubeless Ready)
Brakes
Brakes
Tektro M291 Kids Specific Hydraulic Brakes
Cockpit
Stem
Nukeproof Neutron AM, 45mm, black
Handlebar
Nukeproof Urchin 700mm Wide, 15mm Rise, 31.8mm Clamp
Grips
Nukeproof Urchin Single Clamp lock on, 132mm Long, Soft Compound
Headset
Nukeproof Warhead, 44-44 IETS
Seat
Saddle
Nukeproof Urchin, Black
Seatpost
Nukeproof Urchin, Black, 27.2mm, 300mm Long, 0 Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" | 24" | 26" |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.63 mm | 1.62 mm |
| Bottom Bracket Height | 240 mm | 280.5 mm | 296.5 mm |
| Front Center | 541 mm | 592 mm | 661 mm |
| Rake | 38 mm | 38 mm | 46 mm |
| Trail | 78.14 mm | 74.63 mm | 77.43 mm |
| Stack | 468.5 mm | 543 mm | 593 mm |
| Reach | 312 mm | 334 mm | 367 mm |
| Top Tube Length | 460 mm | 504.5 mm | 551 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.75 ° |
| Seat Tube Length | 265 mm | 320 mm | 360 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm |
| Chainstay Length | 356 mm | 406 mm | 421 mm |
| Wheelbase | 895 mm | 994 mm | 1077 mm |
| Bottom Bracket Drop | -35 mm | -45 mm | -47 mm |
| Standover Height | 519 mm | 617 mm | 656 mm |
| Front Travel | 80 mm | 100 mm | 120 mm |
| Wheels | 26" | 26" | 26" |
Model Overview
Cub Scout 26 Frame Only is a Nukeproof Cub model. Nukeproof launched 34 frames of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Nukeproof Cub Scout 20 Frame Only 2021 is the most affordable frame of this model and has a price of 485$. On the other hand, Nukeproof Cub Scout 26 Frame Only 2021, is the most expensive and costs 485$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Mountain frames
According to our math, the average price for a trustworthy Mountain frame is 514$. However, you could also get a good Mountain frame even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Nukeproof Cub Scout 26 Frame Only price was 485$. Comparing this to the average Mountain frame price, we see that the price is 5.98% lower.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Cub Scout 26 Frame Only components
Fork
The fork installed on this bike is the Manitou Markhor model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cub Scout 26 Frame Only has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
