Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Digger 27.5” Road Plus or 700C compatible, custom triple butted hydro-formed Alloy, internal cable routing for dropper seat posts, threaded bottom bracket, 142mm x 12mm rear axle spacing
Suspension Fork
Nukeproof Digger carbon, 27.5” Road Plus or 700C compatible, Tapered Steerer, Rack Mounts, 15x100mm axle spacing
Drivetrain
Cassette
Shimano CS-M8000 XT 11 Speed, 11-42T
Crank
Shimano RX-810, GRX, 1x 11 Speed, 170mm, 40T
Bottom Bracket
BSA, 68mm, threaded
Wheels
Rims
DT Swiss G1800 SPLINE 25, 27.5", 12x100mm
Tires
WTB Sendero 650x47C Road Plus, TCS, Light Fast Rolling, Tan wall, Dual DNA Compound
Brakes
Brakes
Shimano GRX, RX-810 Levers with RX-810 Flatmount Callipers
Disk Rotors
Shimano RT800, 160mm
Cockpit
Stem
SRAM Zipp SC, 6 deg, 80-110mm
Handlebar
Non Series 6061 T6 Double butted, 31.6mm 480/500mm Wide
Headset
Nukeproof Warhead Internal, IS42-28.6 - IS52.1/40
Seat
Saddle
Nukeproof Horizon SL, Black
Seatpost
Brand X Ascend internal, 125mm drop, 31.6mm, Dropper lever integrated into GRX RX-810 Brake Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.44 mm | 1.43 mm |
| Front Center | 596 mm | 609 mm | 624 mm | 647 mm |
| Rake | 48 mm | 43 mm | 42 mm | 43 mm |
| Trail | 61 mm | 66 mm | 67 mm | 66 mm |
| Stack | 534.84 mm | 554.86 mm | 583.27 mm | 602.22 mm |
| Reach | 387.2 mm | 398.5 mm | 405.3 mm | 419.9 mm |
| Top Tube Length | 540 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 71.3 ° | 71.3 ° | 71.3 ° | 71.3 ° |
| Head Tube Length | 105 mm | 125 mm | 155 mm | 175 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1013 mm | 1026 mm | 1041 mm | 1064 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

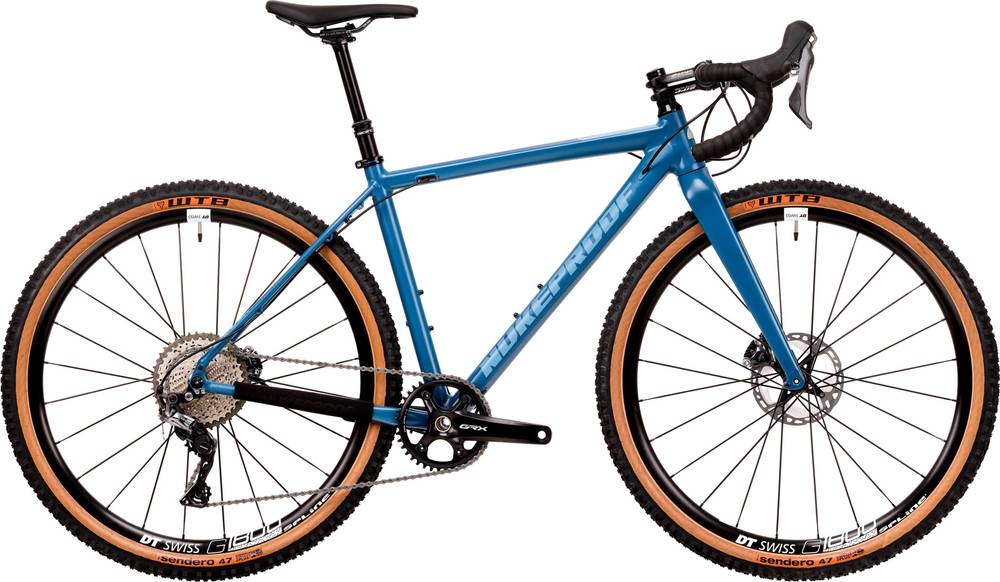

Digger Factory is a Nukeproof Digger model. There are 9 bikes that carry this model name. Take a sneak peek at all Nukeproof Digger bikes models from 2020, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Digger Factory 2020 bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Digger Factory comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Nukeproof Digger Factory comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
