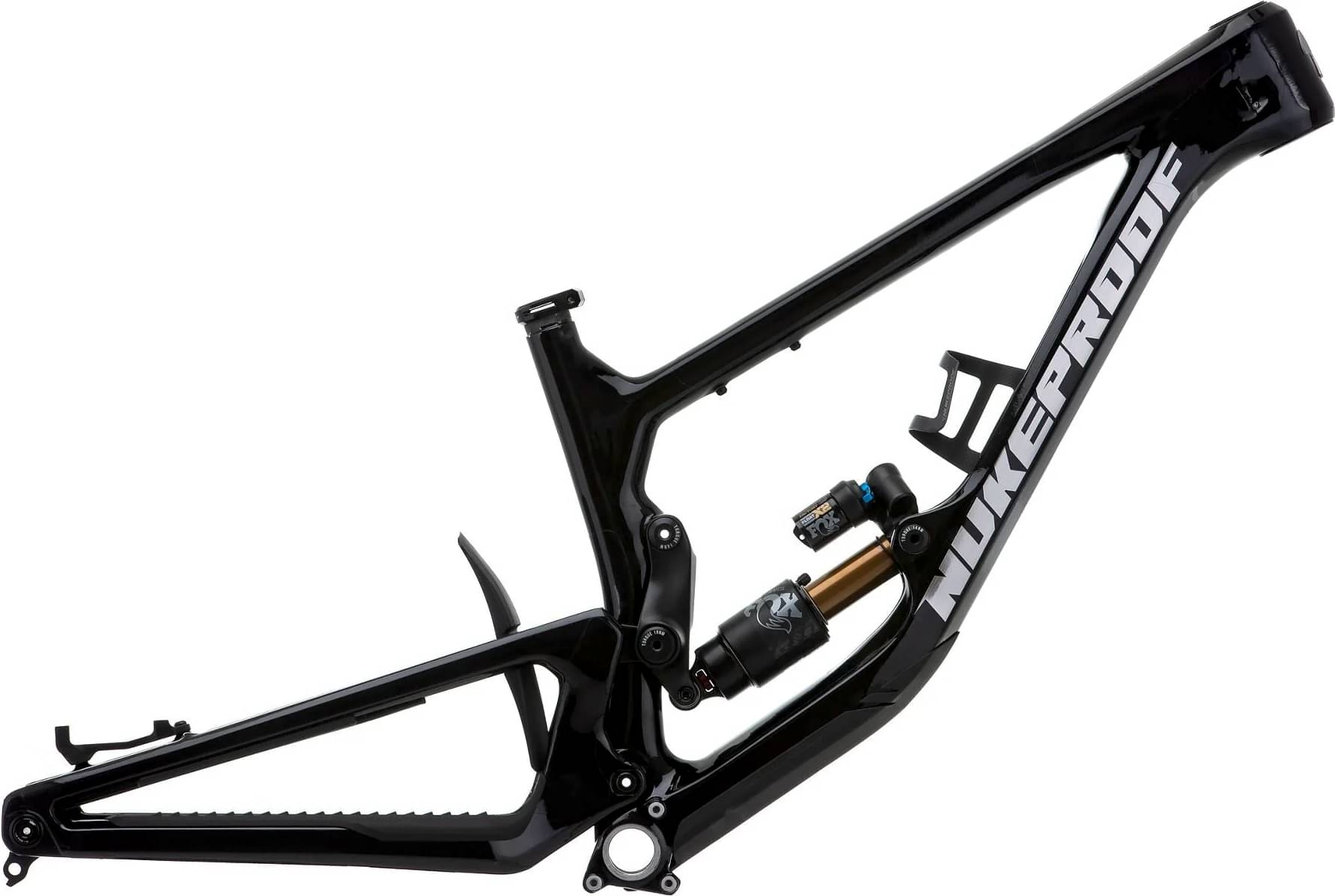

Nukeproof Giga 290 Carbon Frame 2022
2022 Mountain
Estimate price |
3,099$
Weight | 3.88 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 180mm -
Travel Rear 170mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Giga 290 Carbon, 170mm Travel, ultra-strong monocoque UD Carbon Fibre frame, adjustable main pivot, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS
Rear Shock
Fox Float X2 Factory Series, or, EXT Storia V3
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Cockpit
Headset
Nukeproof, 44-56 IITS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.37 mm | 1.33 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 768.03 mm | 793.03 mm | 817.42 mm | 841.8 mm | 866.18 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm |
| Stack | 619.26 mm | 619.26 mm | 628.25 mm | 637.24 mm | 646.23 mm |
| Reach | 427 mm | 452 mm | 472 mm | 492 mm | 512 mm |
| Top Tube Length | 562.11 mm | 587.11 mm | 606.18 mm | 628.09 mm | 650 |
| Seat Tube Angle | 77.75 ° | 77.75 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1213 mm | 1238 mm | 1262 mm | 1287 mm | 1311 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 699 mm | 707 mm | 726 mm | 731 mm | 747 mm |
| Front Travel | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Giga 290 Carbon Frame belongs to the Nukeproof Giga model. Nukeproof launched 42 frames of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Nukeproof Giga 297 Carbon Frame 2022 is the most economical model, with a starting price of 3099$. Nukeproof Giga 297 Carbon Frame (Push) 2022 on the other hand costs 3599$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Downhill frames average price
Our math shows that the average cost of a dependable Downhill frame is 1923$. However, this doesn’t mean that if you spend less money on a Downhill frame, you couldn’t get a decent one. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
When Nukeproof released this model in 2022, its price was 3099$. In conclusion, this frame price is 61.15% more expensive than the price of the average Downhill frame.
Downhill frames average weight
If we make a quick analysis of the average weight of a Downhill frame, we get 4.28 kg (9.44 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 3.88 kg (8.55 lbs), the Giga 290 Carbon Frame model is considerably lighter than average. In short, the average Downhill frame weight is 10.31% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Giga 290 Carbon Frame components
Rear Shock
The Giga 290 Carbon Frame has a rear shock with a travel of 170mm. The model Fox Float X2 Factory Series is the one installed in this frame. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
