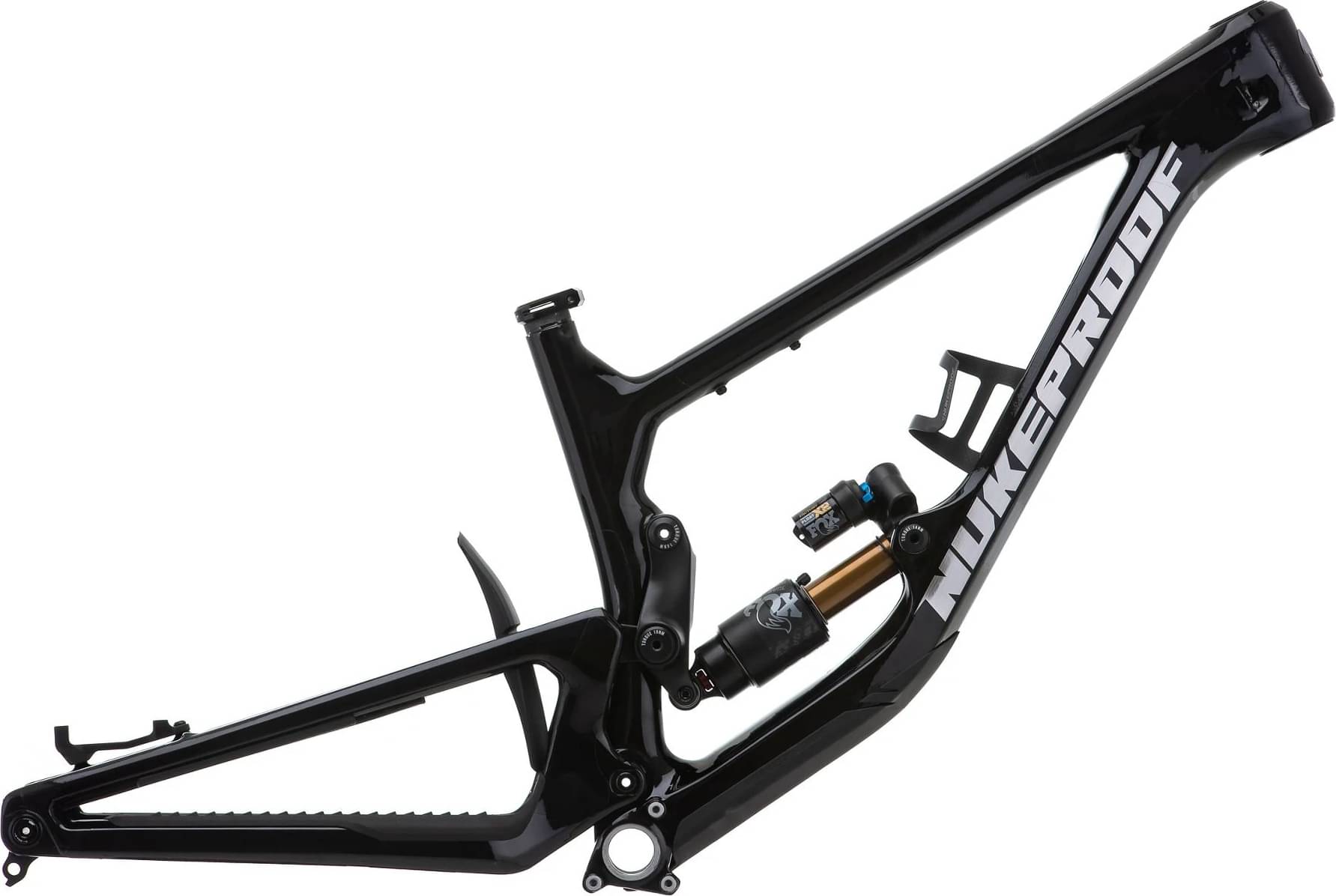

Nukeproof Giga 290 Carbon Frame Only 2022
2022 Mountain
Estimate price |
3,478$
Weight | 3.88 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 180mm -
Travel Rear 170mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Giga 290 Carbon, 170mm Travel, ultra-strong monocoque UD Carbon Fibre frame, adjustable main pivot, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS
Rear Shock
Fox Float X2, Factory Series, Kashima, EVOL, 2 Position lever, Custom LCM, LRM tune, 205x60mm, Trunnion with Bearing End
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Cockpit
Headset
Nukeproof, 44-56 IITS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.37 mm | 1.33 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 768.03 mm | 793.03 mm | 817.42 mm | 841.8 mm | 866.18 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm |
| Stack | 619.26 mm | 619.26 mm | 628.25 mm | 637.24 mm | 646.23 mm |
| Reach | 427 mm | 452 mm | 472 mm | 492 mm | 512 mm |
| Top Tube Length | 562.11 mm | 587.11 mm | 606.18 mm | 628.09 mm | 650 |
| Seat Tube Angle | 77.75 ° | 77.75 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1213 mm | 1238 mm | 1262 mm | 1287 mm | 1311 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 699 mm | 707 mm | 726 mm | 731 mm | 747 mm |
| Front Travel | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Giga 290 Carbon Frame Only is a Nukeproof Giga model. 42 frames variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Nukeproof Giga 297 Carbon Frame 2022 has a starting price of 3099$. Nukeproof Giga 297 Carbon Frame (Push) 2022 on the other hand is the most expensive at 3599$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Downhill frames
According to our calculations, the average cost of a Downhill frame that is reliable is 1923$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Nukeproof Giga 290 Carbon Frame Only price was 3161$. Comparing this to the average Downhill frame price, we see that the price is 64.38% higher.
Average weight for Downhill frames
The average weight for Downhill frames is 4.28 kg (9.44 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 3.88 kg (8.55 lbs), Nukeproof frame is considerably lighter than average. In other words, this model is 10.31% lighter than the average Downhill frame.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Giga 290 Carbon Frame Only components
Rear Shock
The Giga 290 Carbon Frame Only has a rear shock with a travel of 170mm. The model Fox Float X2 is the one installed in this frame. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
