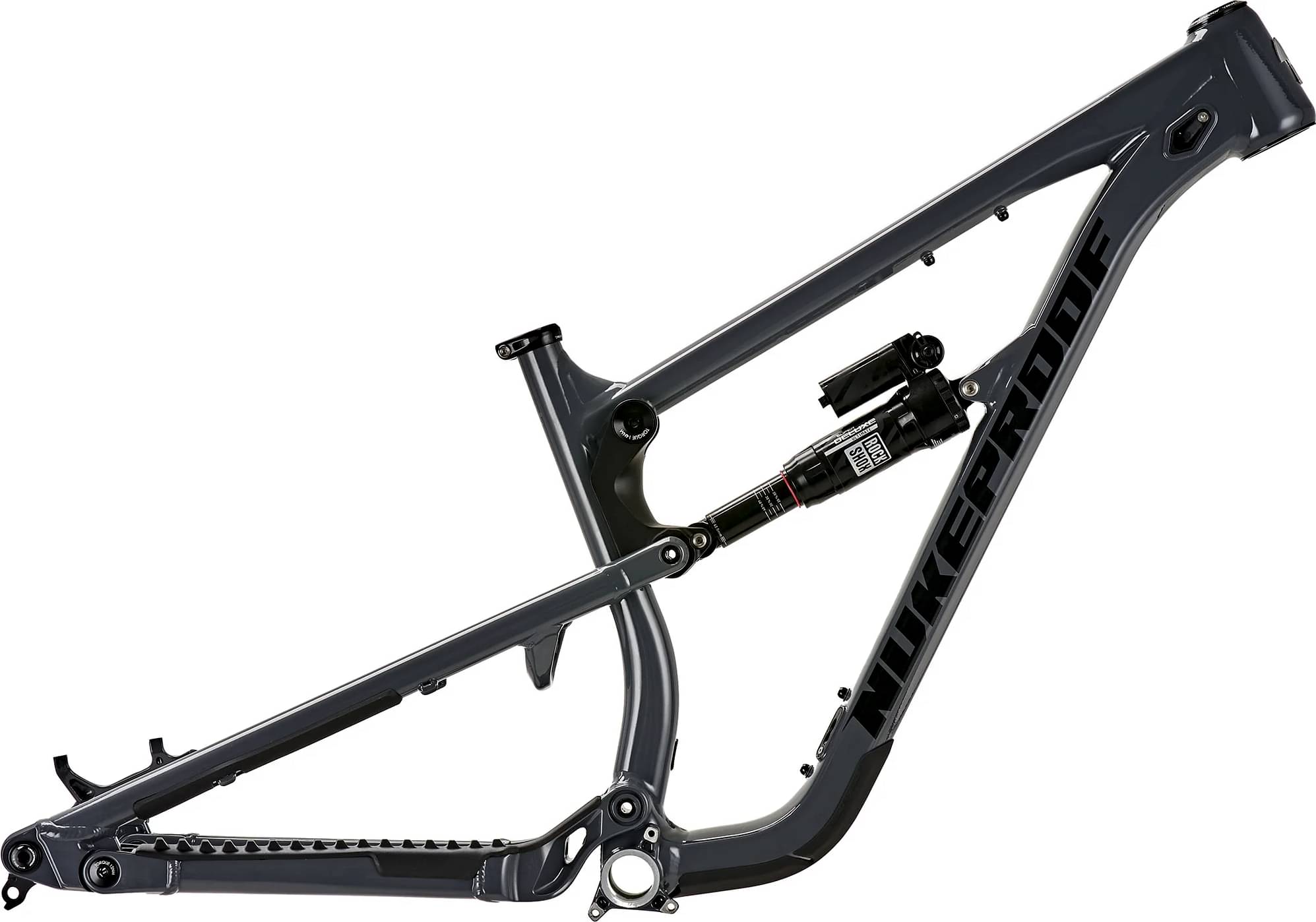

Nukeproof Mega 290 Alloy Frame 2022
2022 Mountain
Estimate price |
2,499$
Weight | 3.87 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Mega V4 290 Alloy, 160mm Travel, custom triple butted hydro-formed tube set, internal cable routing, ISCG 05 mount, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection
Rear Shock
RockShox Super Deluxe Ultimate RCT, Custom LIN L1 HOTDOG S320 tune, 230x62.5mm, Bearing End, 2 bottomless tokens fitted
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Cockpit
Headset
Nukeproof, 44-56 IITS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.37 mm | 1.35 mm | 1.31 mm | 1.28 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 758.5 mm | 783.5 mm | 812.11 mm | 836.42 mm | 860.72 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 132.33 mm | 132.33 mm | 132.33 mm | 132.33 mm | 132.33 mm |
| Stack | 618.16 mm | 618.16 mm | 636.22 mm | 645.24 mm | 654.27 mm |
| Reach | 427 mm | 452 mm | 472 mm | 492 mm | 512 mm |
| Top Tube Length | 564.7 mm | 589.71 mm | 607.87 mm | 629.79 mm | 651.71 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1194 mm | 1219 mm | 1248 mm | 1272 mm | 1296 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 718 mm | 717 mm | 718 mm | 717 mm | 723 mm |
| Front Travel | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Mega 290 Alloy Frame is a Nukeproof Mega model. There are 92 frames that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Nukeproof Mega 297 Alloy Frame Only 2022 is the cheapest frame model and costs 2188$. Nukeproof Mega 297 Carbon Frame (Push) 2022 is the most expensive one and costs 3499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro frames
Our math shows that the average cost of a dependable Enduro frame is 1895$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Nukeproof Mega 290 Alloy Frame price was 2499$. Doing a quick comparison, we notice that Mega 290 Alloy Frame price is 31.87% more expensive than the average cost of an Enduro frame.
Enduro frames average weight
On a deeper look, we notice that the average weight of an Enduro frame is 3.43 kg (7.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Mega 290 Alloy Frame weighs 3.87 kg (8.53 lbs) and is considerably heavier than the average. In short, the average Enduro frame weight is 12.83% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Rear Shock
The shock that’s installed on this frame is RockShox Super Deluxe Ultimate RCT, with a travel distance of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
