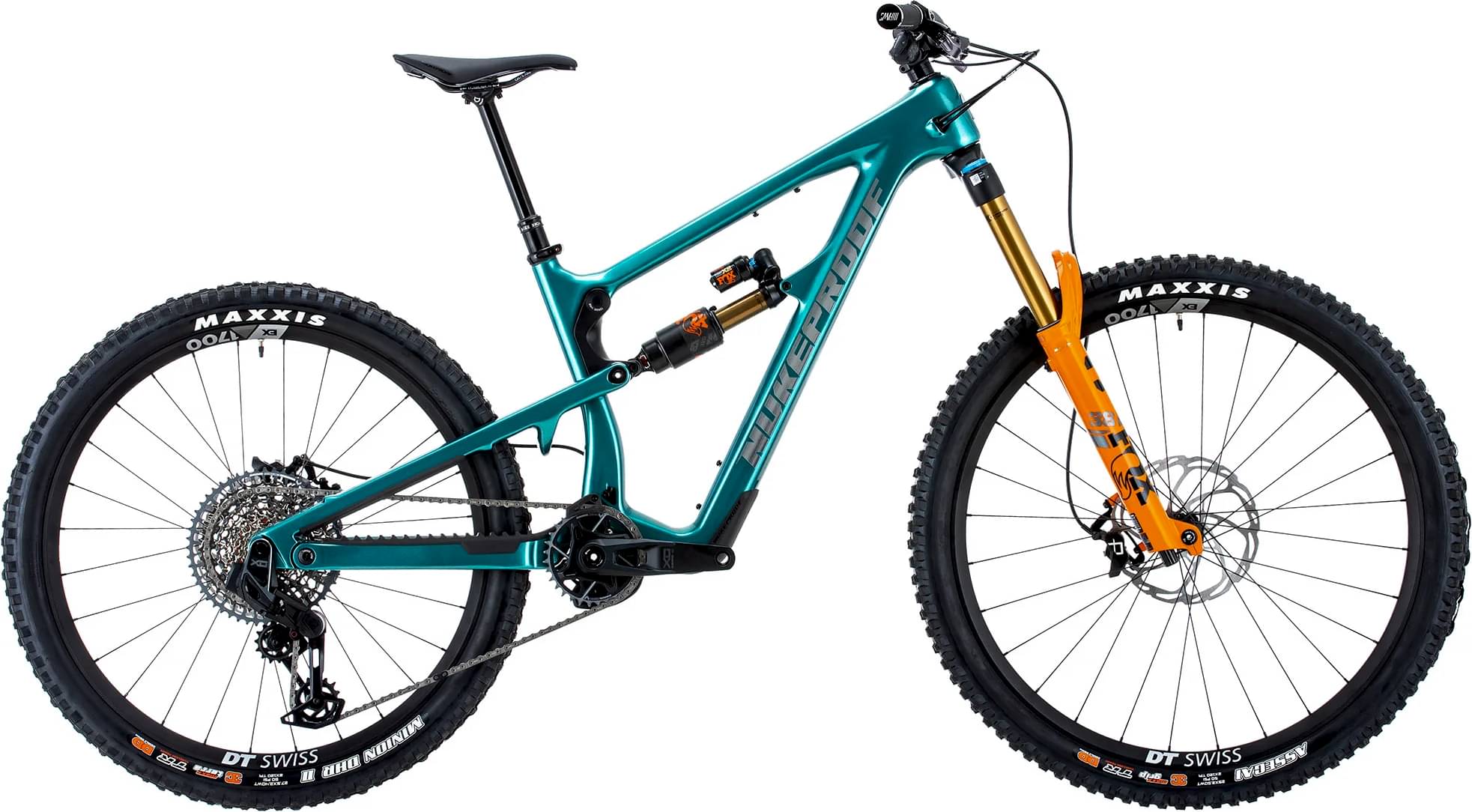

Nukeproof Mega 297 Carbon Factory 2023
2023 Mountain
Estimate price |
7,992$
Weight | 15.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Factory Float 38
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Mega V4 297 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS.
Suspension Fork
Fox 38 Float, Factory Series, Kashima, Grip 2 Damper, 170mm, 44mm Offset, BOOST, Orange
Rear Shock
Fox Float X2, Factory Series, Kashima, EVOL, 2 Position lever, Custom 0.3 Spacer x2, CL, RM, Rezi CM tune, 230x62.5mm, Bearing End
Drivetrain
Rear Derailleur
SRAM XO AXS Eagle, T-Type, 12-Speed
Shift Levers
SRAM AXS POD Ultimate, Eagle, 12-Speed, T-Type
Cassette
SRAM GX Eagle, CS-1275, T-Type, 12-Speed, 10-52T
Crank
SRAM XO Eagle, T-Type, 12-Speed, 170mm, 30T, DUB, 55mm CL
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM GX, T-Type, 12-speed, Flattop, Powerlock
Chain Guide
Nukeproof Guide with Bash, 28-36T, ISCG-05, 55mm CL, Black
Wheels
Rims
Front: DT Swiss EX1700 SPLINE 30, 29", 6 Bolt, 110x15mm, Rear: DT Swiss EX1700 SPLINE 30, 27.5", 6 Bolt, XD Driver, 148x12mm
Tires
Maxxis Assegai 3C MAXXGRIP/DD/TR 29” x 2.5WT, Rear: Maxxis Minion DHR II 3C MAXXTERRA/DD/TR 27.5” x 2.4WT
Brakes
Brakes
Hayes Dominion A4, 4-Pot Brake, Metallic Pads
Cockpit
Stem
Nukeproof Horizon, 45mm, Black
Handlebar
Nukeproof Horizon V2 25mm Rise, Width - S780mm, M780mm, L800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof, 44-56 IITS
Seat
Saddle
Nukeproof
Seatpost
Bikeyoke Divine Stealth with Brand-X Remote lever, S:125mm drop; M:160mm drop; L:185mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.37 mm | 1.35 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 758.5 mm | 783.5 mm | 812.11 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 132.33 mm | 132.33 mm | 132.33 mm |
| Stack | 618.16 mm | 618.16 mm | 636.22 mm |
| Reach | 427 mm | 452 mm | 472 mm |
| Top Tube Length | 564.71 mm | 589.71 mm | 607.87 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1189 mm | 1214 mm | 1243 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 718 mm | 717 mm | 718 mm |
| Front Travel | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Mega 297 Carbon Factory is part of the Nukeproof Mega model. Nukeproof released 92 bikes variations of this model so far. You can easily view all of the Nukeproof Mega bikes models from 2023, here.
Model range prices
Nukeproof Mega 290 Alloy Comp 2023 is the cheapest bike model and costs 3399$. Nukeproof Mega 290 Carbon RS 2023 is the most expensive one and costs 7299$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 7176$. Doing a quick comparison, we notice that Mega 297 Carbon Factory price is 99.39% more expensive than the average cost of an Enduro bike.
Enduro bikes average weight
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 15.6 kg (34.39 lbs), Nukeproof bike is a bit heavier than average. In conclusion, the average Enduro bike weighs 9.32% less than Mega 297 Carbon Factory.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This bike has the Fox Factory Float 38 fork installed. The fork’s travel is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox Float X2 rear shock model, which has a travel of 165mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Nukeproof Mega 297 Carbon Factory 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Nukeproof Mega 297 Carbon Factory has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Mega 297 Carbon Factory comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Mega 297 Carbon Factory. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
