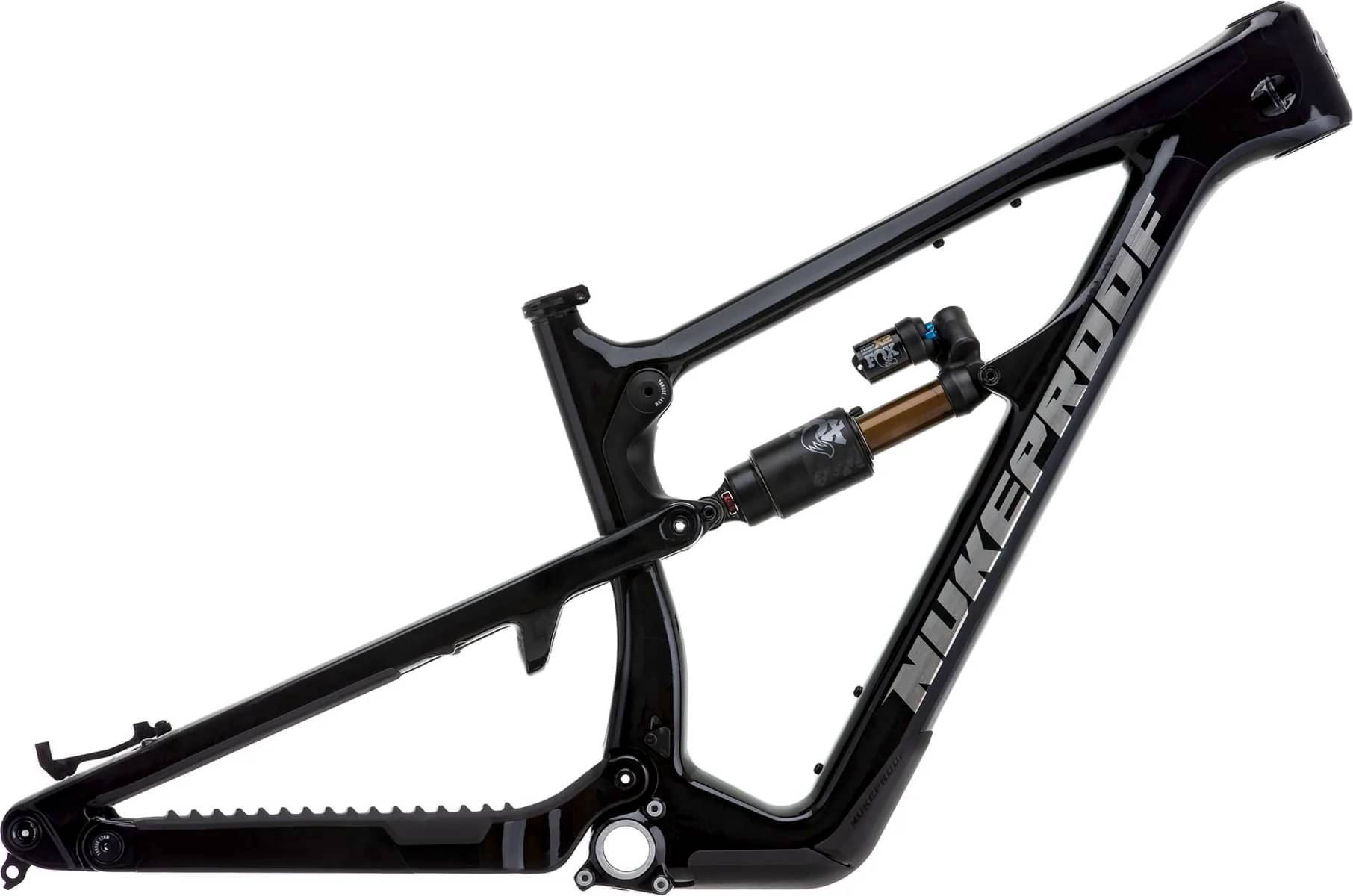

Nukeproof Mega 297 Carbon Frame 2022
2022 Mountain
Estimate price |
2,999$
Weight | 3.82 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Suspension Full
Sizing
Recommended size guide.
SM
159cm - 169cm
MD
167cm - 177cm
LG
175cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Mega V4 297 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS.
Rear Shock
Fox Float X2, Factory Series, or, Push Eleven Six, or, Fast Fenix Evo, or, EXT Storia V3
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Cockpit
Headset
Nukeproof, 44-56 IITS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.37 mm | 1.35 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 758.5 mm | 783.5 mm | 812.11 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 132.33 mm | 132.33 mm | 132.33 mm |
| Stack | 618.16 mm | 618.16 mm | 636.22 mm |
| Reach | 427 mm | 452 mm | 472 mm |
| Top Tube Length | 564.71 mm | 589.71 mm | 607.87 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1189 mm | 1214 mm | 1243 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 718 mm | 717 mm | 718 mm |
| Front Travel | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 159 cm | 167 cm | 175 cm |
| Rider Max Height | 169 cm | 177 cm | 185 cm |
Model Overview
Mega 297 Carbon Frame is part of the Nukeproof Mega model. 92 frames variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Nukeproof Mega 297 Alloy Frame Only 2022 is the most affordable frame of this model and has a price of 2188$. On the other hand, Nukeproof Mega 297 Carbon Frame (Push) 2022, is the most expensive and costs 3499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro frames average price
If you want an acceptable Enduro frame you should know that the average price is 1895$. However, even though the average price of an Enduro frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Nukeproof Mega 297 Carbon Frame price was 2999$. Comparing the average cost of an Enduro frame to this one, you will see that Mega 297 Carbon Frame price is 58.26% higher.
Enduro frames average weight
If we make a quick analysis of the average weight of an Enduro frame, we get 3.43 kg (7.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Mega 297 Carbon Frame weighs 3.82 kg (8.42 lbs) and is considerably heavier than the average. In other words, this model is 11.37% heavier than the average Enduro frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Mega 297 Carbon Frame components
Rear Shock
From the factory, it comes with the Fox Float X2 rear shock model, which has a travel of 165mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
Mega 297 Carbon Frame comes in 3 sizes, that range from 159 cm – 185 cm (5.22 ft – 6.07 ft). In conclusion, finding one for you shouldn’t be a problem.
